Turck

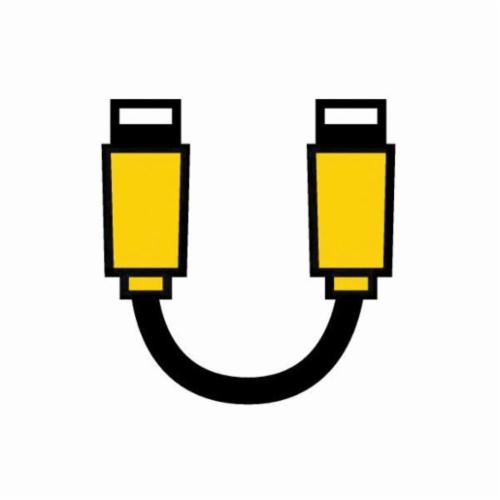

Turck eurofast® U0896-81 Double Ended Cordset, M12 Straight Female x Straight Male Connector, 2 m L Cable, 4 Poles
Turck
Turck eurofast® U0896-81 Double Ended Cordset, M12 Straight Female x Straight Male Connector, 2 m L Cable, 4 Poles
SKU241219
MFGR #U0896-81
$/ea
Turck offers a complete line of molded Industrial Ethernet cordsets to facilitate network installation, resulting in faster start-up and fewer wiring errors. These robust cables are available with stranded or solid-core conductors, and with or without shielding. Most Turck Ethernet equipment uses the 4 or 8-pin (M12) eurofast® connector specifications. These connectors provide a tough, rugged seal and are IP67-rated. Turck provides RJ45 cordsets, as well as a variety of devices made to convert between RJ45 and Eurofast connectors. Turck cordsets for the Ethernet system are available in standard lengths, in addition to custom lengths through the company?s sales representatives.
Turck offers a complete line of molded Industrial Ethernet cordsets to facilitate network installation, resulting in faster start-up and fewer wiring errors. These robust cables are available with stranded or solid-core conductors, and with or without shielding. Most Turck Ethernet equipment uses the 4 or 8-pin (M12) eurofast® connector specifications. These connectors provide a tough, rugged seal and are IP67-rated. Turck provides RJ45 cordsets, as well as a variety of devices made to convert between RJ45 and Eurofast connectors. Turck cordsets for the Ethernet system are available in standard lengths, in addition to custom lengths through the company?s sales representatives.
Amperage Rating 4 A Angle IP68 Cable Material TPE Cable Type Jacketed Catalog Number U0896-81 Connector Material TPU Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 2 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 4 Returnable Y Series Straight Female x Straight Male Standards UL Listed, CSA Certified, RoHS Compliant Type Double Ended Voltage Rating 250 VAC Wire Pin Colors Brown/White/Blue/Black Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 2 m Connector Size M12 Connector Type Straight Female x Straight Male Keyway Single -40 to 105 deg C temperature range 4 x 18 AWG conductor/cable size Yellow conductor and outer jacket cable color Nylon/TPU contact carrier Gold plated brass contact material Nickel-plated brass coupling nut T barb fitting 4-12 pins utilizing 2-12 wires Fully shielded options Hybrid connector extensions For Fieldbus Ethernet protocol ITC/PLTC TPE Yellow 6.9 mm OD Weld flash lmmune, weldlife
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Angle | IP68 |
| Cable Material | TPE |
| Cable Type | Jacketed |
| Catalog Number | U0896-81 |
| Connector Material | TPU |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 2 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 4 |
| Returnable | Y |
| Series | Straight Female x Straight Male |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Type | Double Ended |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Brown/White/Blue/Black |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 2 m |
| Connector Size | M12 |
| Connector Type | Straight Female x Straight Male |
| Keyway | Single |
| -40 to 105 deg C temperature range |
| 4 x 18 AWG conductor/cable size |
| Yellow conductor and outer jacket cable color |
| Nylon/TPU contact carrier |
| Gold plated brass contact material |
| Nickel-plated brass coupling nut |
| T barb fitting |
| 4-12 pins utilizing 2-12 wires |
| Fully shielded options |
| Hybrid connector extensions |
| For Fieldbus Ethernet protocol |
| ITC/PLTC TPE Yellow |
| 6.9 mm OD |
| Weld flash lmmune, weldlife |
