Turck F0077 DeviceNet™ FDNL Compact Station I/O Module, 13 to 26 VDC, 7 mA, 4 Poles, 3 Wires
Quick Connect Distribution/Multiport Box
196873
MFG #: F0077
Turck
522.44000
/ ea

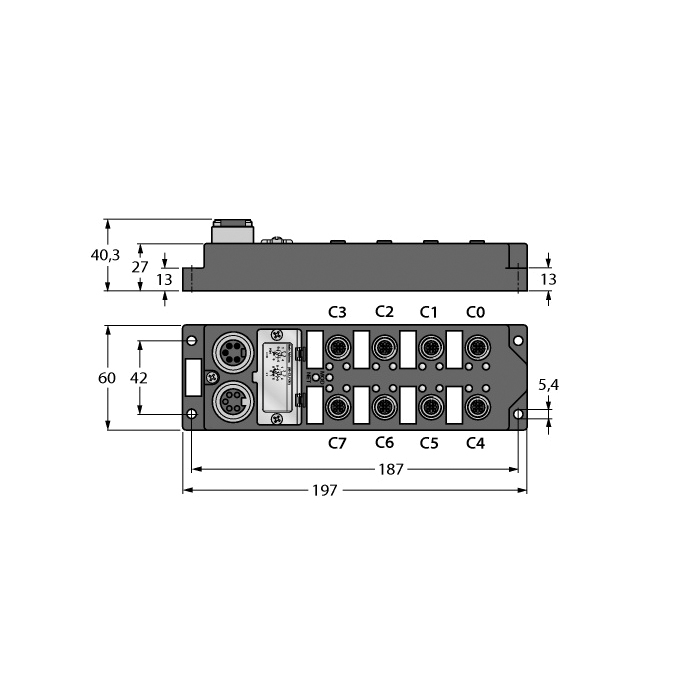

Turck DeviceNet™ I/O Module, Compact Station, Series: FDNL, 13 to 26 VDC, 7 mA, 16 Inlets, 4 Pole, 3 Wires, IP67, Polyamide, 197 mm Height, 60 mm Width, 27 mm Depth
- Features
| 16 digital PNP inputs |
| Short circuit monitoring |
| Module-related diagnostics |
| Two channels per connector |
| Fiberglass reinforced PA6 housing |
| Vibration and shock-resistant |
| Encapsulated module electronics |
| Metal connectors |
| -40 to 70 deg C operating temperature |
| 4 mounting holes, 5.4 mm diameter |
| Galvanic isolation against the bus potential separation |
| 2.5 ms input delay |
| 125/250/500 kbps fieldbus transmission rate |
| 11 - 26 VDC operating/load voltage |
| < 50 mA operating current |
| < 700 mA per module, short circuit proof supply current |
| Fiberglass reinforced polyamide |
