Turck

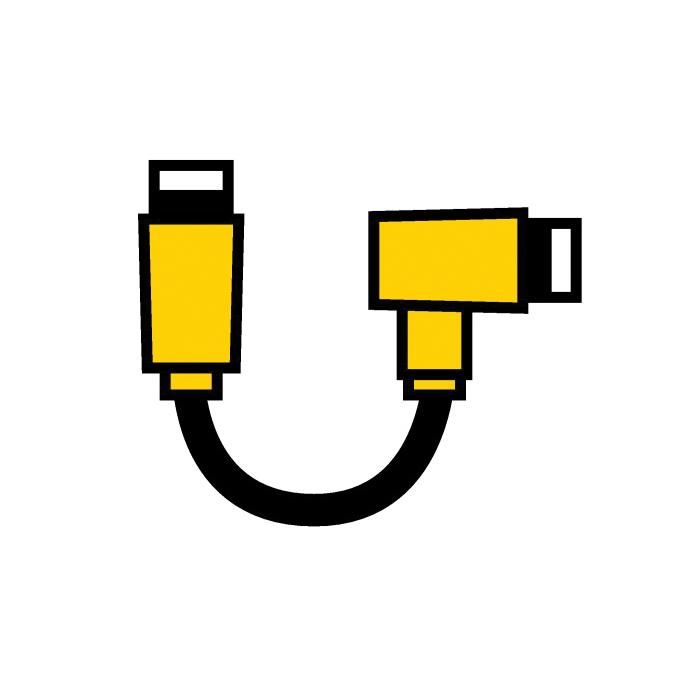

Turck Eurofast® WKV 4.5T-8-RSV 4.5T Double Ended Cordset, M12 x 1 Right Angle Female x Straight Male Connector, 5 Poles
Turck
Turck Eurofast® WKV 4.5T-8-RSV 4.5T Double Ended Cordset, M12 x 1 Right Angle Female x Straight Male Connector, 5 Poles
SKUPDW~12268577
MFGR #U-52071
$/ea
Turck Eurofast® Cordset, Double Ended, Right Angle Female x Straight Male Connector, M12 x 1 Connector, Stainless Steel, 8 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Gray Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Double Ended, Right Angle Female x Straight Male Connector, M12 x 1 Connector, Stainless Steel, 8 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Gray Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material PVC Catalog Number U-52071 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 8 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 5 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Double Ended Voltage Rating 250 VAC Wire Pin Colors Brown/White/Blue/Black/Gray Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 8 m Connector Size M12 Connector Type Right Angle Female x Straight Male 5 conductors 22 AWG gray cable Nylon TPU contact carriers Yellow TPU molded head material Gold plated brass contact material Passivated stainless steel coupling nut Gray PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | PVC |
| Catalog Number | U-52071 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 8 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Double Ended |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Brown/White/Blue/Black/Gray |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 8 m |
| Connector Size | M12 |
| Connector Type | Right Angle Female x Straight Male |
| 5 conductors |
| 22 AWG gray cable |
| Nylon TPU contact carriers |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Gray PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
