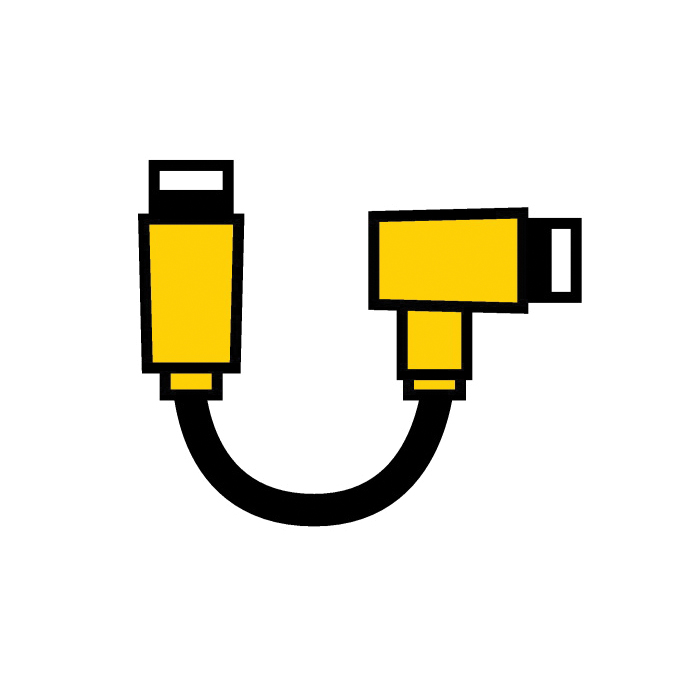

Turck Eurofast® WKC 8T-1.3-RSC 8T Double Ended Cordset, M12 x 1 Right Angle Female x Straight Male Connector, 8 Poles
Turck Eurofast® WKC 8T-1.3-RSC 8T Double Ended Cordset, M12 x 1 Right Angle Female x Straight Male Connector, 8 Poles
SKUPDW~10647236
MFGR #U-67256
$/ea
Turck Eurofast® Cordset, Double Ended, Right Angle Female x Straight Male Connector, M12 x 1 Connector, Brass, 1.3 m Cable Length, PVC Cable, 8 Pole, 60 VAC/75 VDC, 2 A, White/Brown/Green/Yellow/Gray/Pink/Blue/Red Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Double Ended, Right Angle Female x Straight Male Connector, M12 x 1 Connector, Brass, 1.3 m Cable Length, PVC Cable, 8 Pole, 60 VAC/75 VDC, 2 A, White/Brown/Green/Yellow/Gray/Pink/Blue/Red Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 2 A Cable Material PVC Catalog Number U-67256 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 1.3 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 8 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Double Ended Voltage Rating 60 VAC/75 VDC Wire Pin Colors White/Brown/Green/Yellow/Gray/Pink/Blue/Red Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 1.3 m Connector Size M12 Connector Type Right Angle Female x Straight Male 8 conductors 24 AWG gray cable Black nylon TPU contact carriers Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Gray PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 2 A |
| Cable Material | PVC |
| Catalog Number | U-67256 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 1.3 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 8 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Double Ended |
| Voltage Rating | 60 VAC/75 VDC |
| Wire Pin Colors | White/Brown/Green/Yellow/Gray/Pink/Blue/Red |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 1.3 m |
| Connector Size | M12 |
| Connector Type | Right Angle Female x Straight Male |
| 8 conductors |
| 24 AWG gray cable |
| Black nylon TPU contact carriers |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Gray PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
