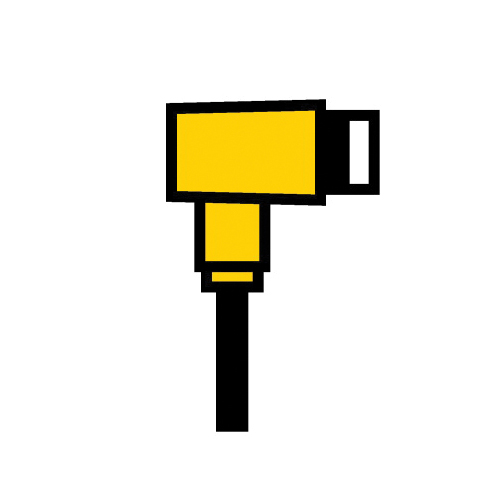

Turck Eurofast® WK 4.5T-2/S90 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 2 m L Cable, 5 Poles
Turck Eurofast® WK 4.5T-2/S90 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 2 m L Cable, 5 Poles
SKUPDW~12265103
MFGR #U2436-64
Your Cost: $30.20/ea
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Brass, 2 m Cable Length, TPU Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Gray Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Brass, 2 m Cable Length, TPU Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Gray Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material TPU Catalog Number U2436-64 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 2 m NEMA Rating NEMA 1/3/4/6P/IP68 Number Of Poles 5 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Single End Voltage Rating 250 VAC Wire Pin Colors Black/Blue/Brown/Gray/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 2 m Connector Size M12 Connector Type Right Angle Female 5 conductors 22 AWG gray cable Nylon TPU contact carriers Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Gray TPU outer jacket material PVC conductor insulation material -40 to 90 deg C temperature Standard plug body
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | TPU |
| Catalog Number | U2436-64 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 2 m |
| NEMA Rating | NEMA 1/3/4/6P/IP68 |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Single End |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Black/Blue/Brown/Gray/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 2 m |
| Connector Size | M12 |
| Connector Type | Right Angle Female |
| 5 conductors |
| 22 AWG gray cable |
| Nylon TPU contact carriers |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Gray TPU outer jacket material |
| PVC conductor insulation material |
| -40 to 90 deg C temperature |
| Standard plug body |
