Turck

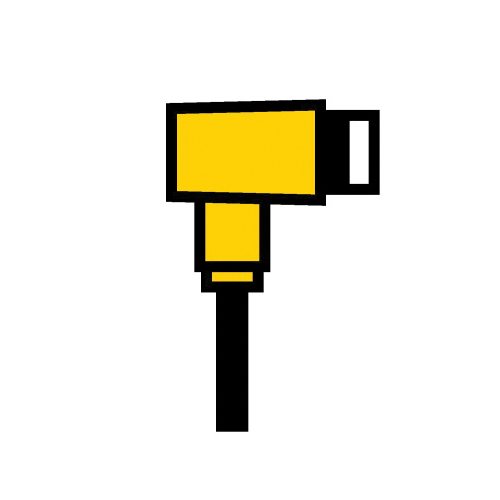

Turck Eurofast® WD-WKCV 8T-10 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 10 m L Cable, 8 Poles
Turck
Turck Eurofast® WD-WKCV 8T-10 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 10 m L Cable, 8 Poles
SKU812106
MFGR #U-44263
$/ea
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, 10 m Cable Length, PVC Cable, 8 Pole, 60 VAC/75 VDC, 2 A, White/Brown/Green/Yellow/Gray/Pink/Blue/Red Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, 10 m Cable Length, PVC Cable, 8 Pole, 60 VAC/75 VDC, 2 A, White/Brown/Green/Yellow/Gray/Pink/Blue/Red Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 2 A Cable Material PVC Catalog Number U-44263 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 10 m NEMA Rating NEMA 1/3/4/6P/IP68 Number Of Poles 8 Returnable N Type Single End Voltage Rating 60 VAC/75 VDC Wire Pin Colors Blue/Brown/Gray/Green/Pink/Red/White/Yellow Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 10 m Connector Size M12 Connector Type Right Angle Female 8 conductors 24 AWG White cable Black TPV contact carrier White TPV molded head material Gold plated brass contact material Passivated finish stainless steel coupling nut White TPV outer jacket material Polyester elastomer conductor insulation material -40 to 105 deg C operating High chemical solvent resistance High tensile strength
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 2 A |
| Cable Material | PVC |
| Catalog Number | U-44263 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 10 m |
| NEMA Rating | NEMA 1/3/4/6P/IP68 |
| Number Of Poles | 8 |
| Returnable | N |
| Type | Single End |
| Voltage Rating | 60 VAC/75 VDC |
| Wire Pin Colors | Blue/Brown/Gray/Green/Pink/Red/White/Yellow |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 10 m |
| Connector Size | M12 |
| Connector Type | Right Angle Female |
| 8 conductors |
| 24 AWG White cable |
| Black TPV contact carrier |
| White TPV molded head material |
| Gold plated brass contact material |
| Passivated finish stainless steel coupling nut |
| White TPV outer jacket material |
| Polyester elastomer conductor insulation material |
| -40 to 105 deg C operating |
| High chemical solvent resistance |
| High tensile strength |
