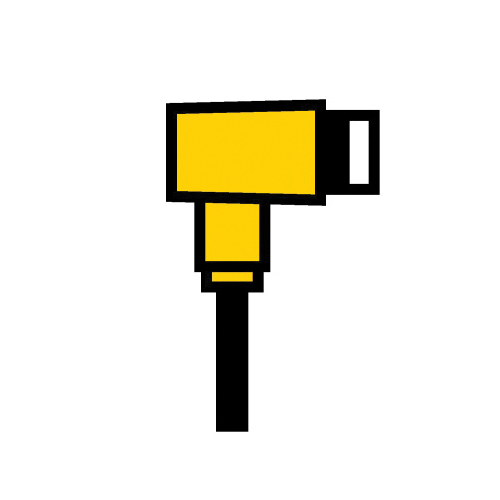

Turck Eurofast® WD-WKCV 4.4T-8 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 8 m L Cable, 4 Poles
Turck Eurofast® WD-WKCV 4.4T-8 Single Ended Cordset, M12 x 1 Right Angle Female Connector, 8 m L Cable, 4 Poles
SKUPDW~12263831
MFGR #U-34666
$/ea
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, 8 m Cable Length, TPV Cable, 4 Pole, 250 VAC, 4 A, Brown/White/Blue/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Single Ended, Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, 8 m Cable Length, TPV Cable, 4 Pole, 250 VAC, 4 A, Brown/White/Blue/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material TPV Catalog Number U-34666 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 8 m NEMA Rating NEMA 1/3/4/6P/IP68 Number Of Poles 4 Returnable N Type Single End Voltage Rating 250 VAC Wire Pin Colors Black/Blue/Brown/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 8 m Connector Size M12 Connector Type Right Angle Female 4 conductors 22 AWG White cable Black TPV contact carrier White TPV molded head material Gold plated brass contact material Passivated stainless steel coupling nut White TPV outer jacket material Polyester elastomer conductor insulation material -40 to 80 deg C temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | TPV |
| Catalog Number | U-34666 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 8 m |
| NEMA Rating | NEMA 1/3/4/6P/IP68 |
| Number Of Poles | 4 |
| Returnable | N |
| Type | Single End |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Black/Blue/Brown/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 8 m |
| Connector Size | M12 |
| Connector Type | Right Angle Female |
| 4 conductors |
| 22 AWG White cable |
| Black TPV contact carrier |
| White TPV molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| White TPV outer jacket material |
| Polyester elastomer conductor insulation material |
| -40 to 80 deg C temperature |
