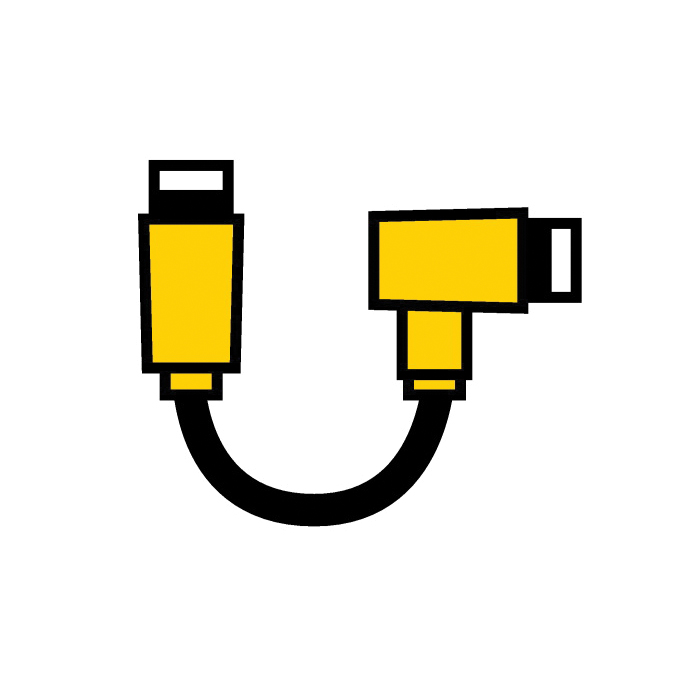

Turck Eurofast® RSCV WKCV 572-6M Double Ended Cordset, M12 x 1 Straight Female x Right Angle Female Connector, 5 Poles
Turck Eurofast® RSCV WKCV 572-6M Double Ended Cordset, M12 x 1 Straight Female x Right Angle Female Connector, 5 Poles
SKUPDW~10644391
MFGR #U-61905
$/ea
Turck Eurofast® Cordset, Double Ended, Straight Female x Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, Shielded Cable, 6 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Double Ended, Straight Female x Right Angle Female Connector, M12 x 1 Connector, Stainless Steel, Shielded Cable, 6 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material PVC Cable Type Shielded Catalog Number U-61905 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 6 m NEMA Rating NEMA 1/3/4/6P/IP68 Number Of Poles 5 Returnable N Standards CSA, CSA PA, FM Division 2 Certified, RoHS Complaint, UL Listed Type Double End Voltage Rating 250 VAC Wire Pin Colors Black/Blue/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 6 m Connector Size M12 Connector Type Straight Female x Right Angle Female 5 conductors 22 AWG gray cable Blue-grey TPU contact carrier Blue-gray TPU molded head material Gold plated brass contact material Passivated stainless steel coupling nut Gray PVC outer jacket material PE, PVC conductor insulation material -40 to 80 deg C temperature 22 AWG drain Foil (pairs), foil (overall) DeviceNet fieldbus protoco
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U-61905 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 6 m |
| NEMA Rating | NEMA 1/3/4/6P/IP68 |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA, CSA PA, FM Division 2 Certified, RoHS Complaint, UL Listed |
| Type | Double End |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Black/Blue/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 6 m |
| Connector Size | M12 |
| Connector Type | Straight Female x Right Angle Female |
| 5 conductors |
| 22 AWG gray cable |
| Blue-grey TPU contact carrier |
| Blue-gray TPU molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Gray PVC outer jacket material |
| PE, PVC conductor insulation material |
| -40 to 80 deg C temperature |
| 22 AWG drain |
| Foil (pairs), foil (overall) |
| DeviceNet fieldbus protoco |
