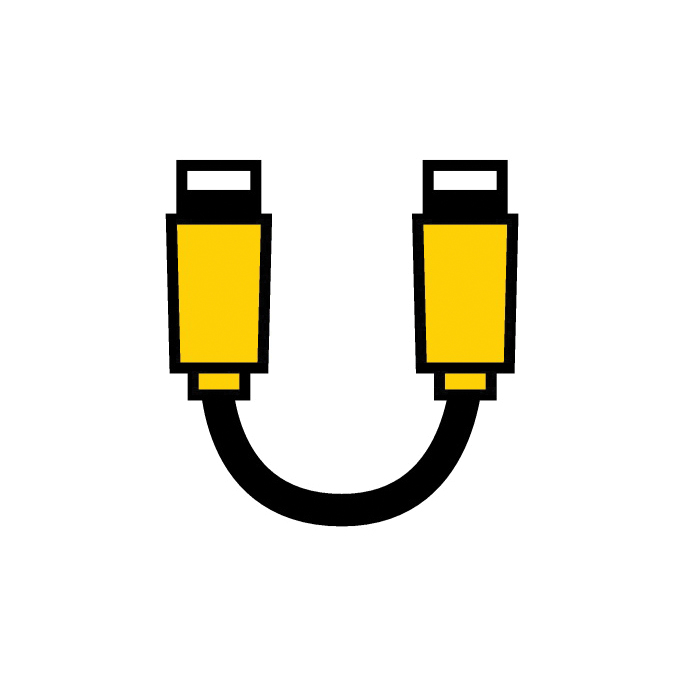

Turck Eurofast® RK 4.5T-5-RS 4.5T/S2501/S1587 Double Ended Cordset, M12 x 1 Straight Female x Straight Male Connector
Turck Eurofast® RK 4.5T-5-RS 4.5T/S2501/S1587 Double Ended Cordset, M12 x 1 Straight Female x Straight Male Connector
SKU591887
MFGR #U-16745
$/ea
Turck Eurofast® Cordset, Double Ended, Straight Female x Straight Male Connector, M12 x 1 Connector, Brass, Shielded Cable, 5 m Cable Length, TPE Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Bare Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck Eurofast® Cordset, Double Ended, Straight Female x Straight Male Connector, M12 x 1 Connector, Brass, Shielded Cable, 5 m Cable Length, TPE Cable, 5 Pole, 250 VAC, 4 A, Brown/White/Blue/Black/Bare Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material TPE Cable Type Shielded Catalog Number U-16745 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 5 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 5 Returnable N Standards CSA Certified, RoHS Compliant, UL Listed Type Double Ended Voltage Rating 250 VAC Wire Pin Colors Brown/White/Blue/Black/Bare Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 5 m Connector Size M12 Connector Type Straight Female x Straight Male 5 conductors 22 and 24 AWG yellow cable Nylon TPU contact carriers Black TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut PVC conductor insulation material -40 to 105 deg C operating Aluminum-polyester foil shield, tinned-copper braided shield Weldlife cable RFID fieldbus protocol
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | TPE |
| Cable Type | Shielded |
| Catalog Number | U-16745 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 5 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Type | Double Ended |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Brown/White/Blue/Black/Bare |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 5 m |
| Connector Size | M12 |
| Connector Type | Straight Female x Straight Male |
| 5 conductors |
| 22 and 24 AWG yellow cable |
| Nylon TPU contact carriers |
| Black TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
| Aluminum-polyester foil shield, tinned-copper braided shield |
| Weldlife cable |
| RFID fieldbus protocol |
