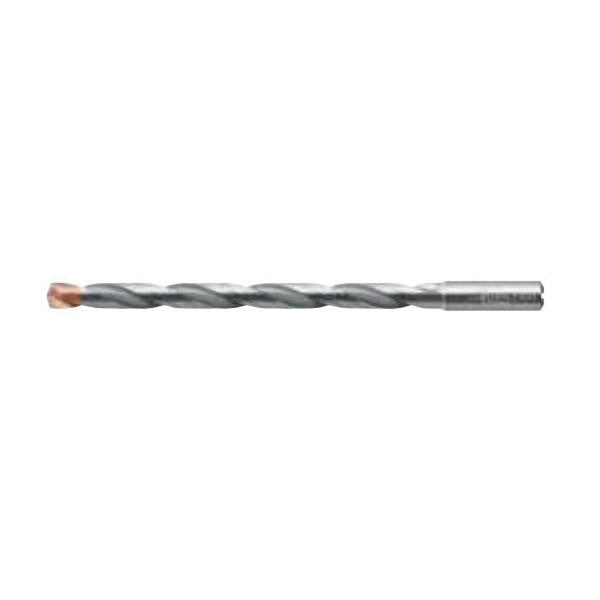

Titex X?treme D12 A6589DPP Jobber Drill With Internal Coolant Channel, 9.128 mm Dia x 180 mm L, K30F Solid Carbide
Custom_Product_Images_Illustration
Titex X?treme D12 A6589DPP Jobber Drill With Internal Coolant Channel, 9.128 mm Dia x 180 mm L, K30F Solid Carbide
SKU1026188
MFGR #A6589DPP-23/64IN
Your Cost: $362.20/ea
List: Titex X?treme D12 Jobber Drill, Series: A6589DPP, 9.128 mm Dia, 180 mm Overall Length, 12XD Cutting Depth, 2 Flutes, Twist Flute, 138 mm Flute Length, 10 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, Double Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys
Titex X?treme D12 Jobber Drill, Series: A6589DPP, 9.128 mm Dia, 180 mm Overall Length, 12XD Cutting Depth, 2 Flutes, Twist Flute, 138 mm Flute Length, 10 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, Double Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys
Applicable Materials Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys Catalog Number A6589DPP-23/64IN Country of Origin DE Cutting Depth 12XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 9.128 mm Flute Length 138 mm Flute Type Twist Gross Weight Per Pack 0.2800 lb Number of Flutes 2 Point Angle 140 deg Series A6589DPP Shank Size 10 mm Shank Type Cylindrical/MegaJet/Alpha® 4 XD Standards DIN 6535 HA Sub Brand Titex Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Finish Double Point Coated Material K30F Solid Carbide Overall Length 180 mm 45 to 55 HRc hardness m7 Cutting diameter tolerance h6 Shank diameter tolerance 3 Regrinds 4.5 mm L regrind 123 mm L usable 3 Coolant style 1.661 mm L point ANSI Code: A6589DPP-23/64IN ISO Code: A6589DPP-23/64IN
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Applicable Materials | Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys |
| Catalog Number | A6589DPP-23/64IN |
| Country of Origin | DE |
| Cutting Depth | 12XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 9.128 mm |
| Flute Length | 138 mm |
| Flute Type | Twist |
| Gross Weight Per Pack | 0.2800 lb |
| Number of Flutes | 2 |
| Point Angle | 140 deg |
| Series | A6589DPP |
| Shank Size | 10 mm |
| Shank Type | Cylindrical/MegaJet/Alpha® 4 XD |
| Standards | DIN 6535 HA |
| Sub Brand | Titex |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Finish | Double Point Coated |
| Material | K30F Solid Carbide |
| Overall Length | 180 mm |
| 45 to 55 HRc hardness |
| m7 Cutting diameter tolerance |
| h6 Shank diameter tolerance |
| 3 Regrinds |
| 4.5 mm L regrind |
| 123 mm L usable |
| 3 Coolant style |
| 1.661 mm L point |
| ANSI Code: A6589DPP-23/64IN |
| ISO Code: A6589DPP-23/64IN |
