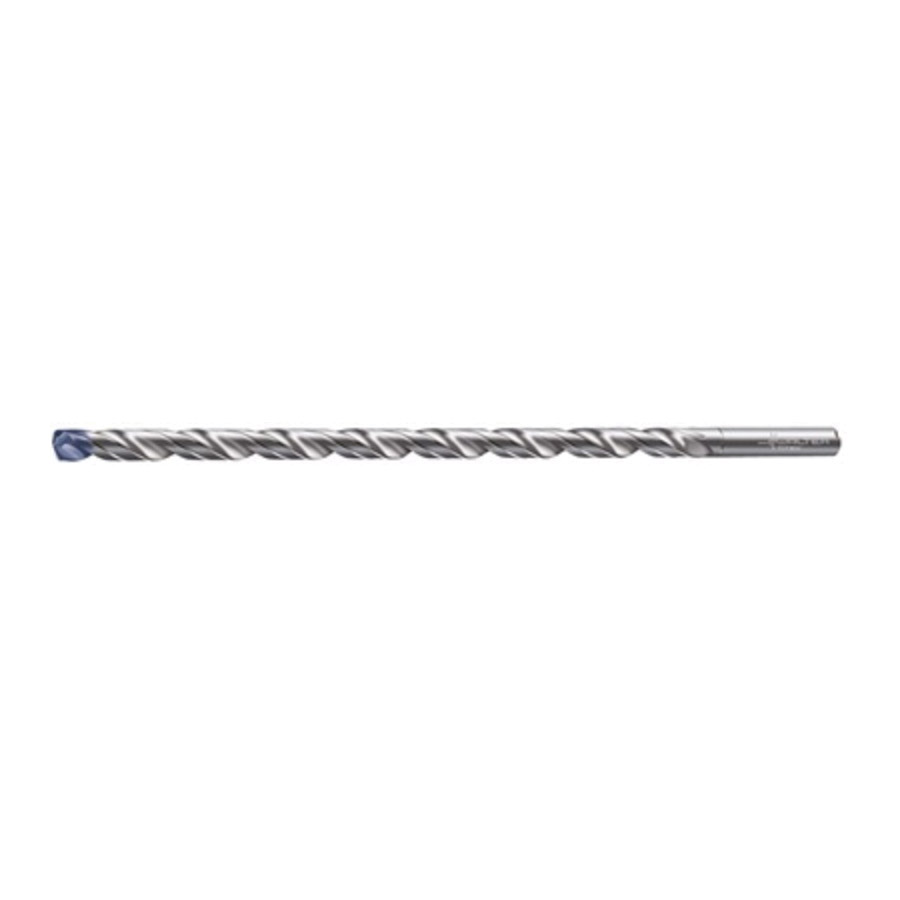

Titex A6794TFP-5/32IN DH20 A6794TFP Extra Length Heavy Duty High Performance Drill With Internal Coolant Channel, 3.969 mm Dia
Custom_Product_Images_Illustration
Titex A6794TFP-5/32IN DH20 A6794TFP Extra Length Heavy Duty High Performance Drill With Internal Coolant Channel, 3.969 mm Dia
SKUPDW~9983003
MFGR #A6794TFP-5/32IN
Your Cost: $514.78/ea
Titex X?treme DH20 High Performance Drill, Extra Length Heavy Duty, Series: A6794TFP, 3.969 mm Dia, 134 mm Overall Length, 20XD Cutting Depth, 2 Flutes, Twist Flute, 92 mm Flute Length, 6 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, Tinal Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys
Titex X?treme DH20 High Performance Drill, Extra Length Heavy Duty, Series: A6794TFP, 3.969 mm Dia, 134 mm Overall Length, 20XD Cutting Depth, 2 Flutes, Twist Flute, 92 mm Flute Length, 6 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, Tinal Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, Hard Materials, High Temperature Alloys and Titanium Alloys
Catalog Number A6794TFP-5/32IN Country of Origin DE Cutting Depth 86 mm Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 5/32 in Finish Tinal® Point Coated Flute Length 92 mm Flute Type Spiral Gross Weight Per Pack 0.0400 lb Number of Flutes 2 Point Angle 140 ° Point Type X-treme DH20 Series A6794TFP Shank Size 6 mm Dia x 36 mm L Shank Type XD Drill Specs Met DIN 6535 HA Standards DIN 6535 HA Sub Brand Titex Through Coolant Yes Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, Materials with Difficult Cutting Properties and Hard Materials Drill Point Length 0.722 mm Material Solid Carbide Overall Length 134 mm 86 mm L usable 36 mm L shank 0.722 mm L point 3 Regrinds 4.5 mm L regrind 45 to 55 HRc 3 Coolant style h6 Shank diameter tolerance h7 Cutting diameter tolerance ANSI Code: A6794TFP-5/32IN ISO Code: A6794TFP-5/32IN ISO Code: A6794TFP-5/32IN applicable materials ANSI Code: A6794TFP-5/32IN applicable materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | A6794TFP-5/32IN |
| Country of Origin | DE |
| Cutting Depth | 86 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 5/32 in |
| Finish | Tinal® Point Coated |
| Flute Length | 92 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 0.0400 lb |
| Number of Flutes | 2 |
| Point Angle | 140 ° |
| Point Type | X-treme DH20 |
| Series | A6794TFP |
| Shank Size | 6 mm Dia x 36 mm L |
| Shank Type | XD Drill |
| Specs Met | DIN 6535 HA |
| Standards | DIN 6535 HA |
| Sub Brand | Titex |
| Through Coolant | Yes |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metals, Materials with Difficult Cutting Properties and Hard Materials |
| Drill Point Length | 0.722 mm |
| Material | Solid Carbide |
| Overall Length | 134 mm |
| 86 mm L usable |
| 36 mm L shank |
| 0.722 mm L point |
| 3 Regrinds |
| 4.5 mm L regrind |
| 45 to 55 HRc |
| 3 Coolant style |
| h6 Shank diameter tolerance |
| h7 Cutting diameter tolerance |
| ANSI Code: A6794TFP-5/32IN |
| ISO Code: A6794TFP-5/32IN |
| ISO Code: A6794TFP-5/32IN applicable materials |
| ANSI Code: A6794TFP-5/32IN applicable materials |
