Walter (Valentine)

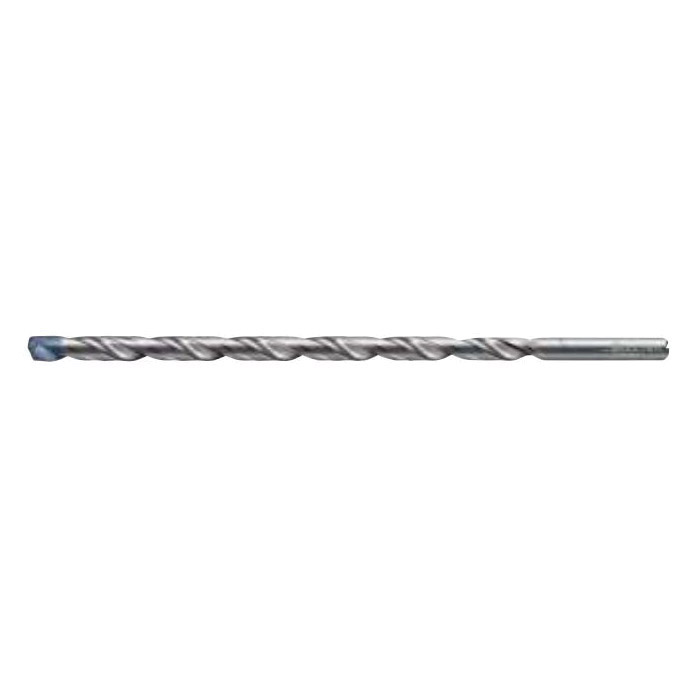

Titex A6685TFP-15 4 XD16 Extra Length Drill With Internal Coolant Channel, 15 mm Dia x 340 mm L
Custom_Product_Images_Illustration
Walter (Valentine)
Titex A6685TFP-15 4 XD16 Extra Length Drill With Internal Coolant Channel, 15 mm Dia x 340 mm L
SKUPDW~9982942
MFGR #A6685TFP-15
$/ea
Titex Alpha® 4 XD16 Extra Length Drill, Series: A6685TFP, 15 mm Dia, 340 mm Overall Length, 16XD Cutting Depth, 2 Flutes, Spiral Flute, 288 mm Flute Length, 16 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, TiNAl Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel and Stainless Steel
Titex Alpha® 4 XD16 Extra Length Drill, Series: A6685TFP, 15 mm Dia, 340 mm Overall Length, 16XD Cutting Depth, 2 Flutes, Spiral Flute, 288 mm Flute Length, 16 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 140 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, TiNAl Point Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel and Stainless Steel
Catalog Number A6685TFP-15 Country of Origin DE Cutting Depth 16XD Cutting Direction Right Hand Cutting Edge Material Solid Carbide Diameter 15 mm Finish TiNAl Point Coated Flute Length 288 mm Flute Type Spiral Gross Weight Per Pack 1.1400 lb Number of Flutes 2 Point Angle 140 deg Series A6685TFP Shank Size 16 mm Shank Type Cylindrical/MegaJet/Alpha® 4 XD Standards DIN 6535 HA Sub Brand Titex Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Applicable Materials Cast Iron, Non-Ferrous Materials, Steel and Stainless Steel Material K30F Solid Carbide Overall Length 340 mm 45 to 55 HRc hardness h7 Cutting diameter tolerance h6 Shank diameter tolerance 3 Regrinds 3 mm L regrind 272 mm L usable 3 Coolant style 2.73 mm L point ANSI Code: A6685TFP-15 ISO Code: A6685TFP-15
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | A6685TFP-15 |
| Country of Origin | DE |
| Cutting Depth | 16XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | Solid Carbide |
| Diameter | 15 mm |
| Finish | TiNAl Point Coated |
| Flute Length | 288 mm |
| Flute Type | Spiral |
| Gross Weight Per Pack | 1.1400 lb |
| Number of Flutes | 2 |
| Point Angle | 140 deg |
| Series | A6685TFP |
| Shank Size | 16 mm |
| Shank Type | Cylindrical/MegaJet/Alpha® 4 XD |
| Standards | DIN 6535 HA |
| Sub Brand | Titex |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Applicable Materials | Cast Iron, Non-Ferrous Materials, Steel and Stainless Steel |
| Material | K30F Solid Carbide |
| Overall Length | 340 mm |
| 45 to 55 HRc hardness |
| h7 Cutting diameter tolerance |
| h6 Shank diameter tolerance |
| 3 Regrinds |
| 3 mm L regrind |
| 272 mm L usable |
| 3 Coolant style |
| 2.73 mm L point |
| ANSI Code: A6685TFP-15 |
| ISO Code: A6685TFP-15 |
