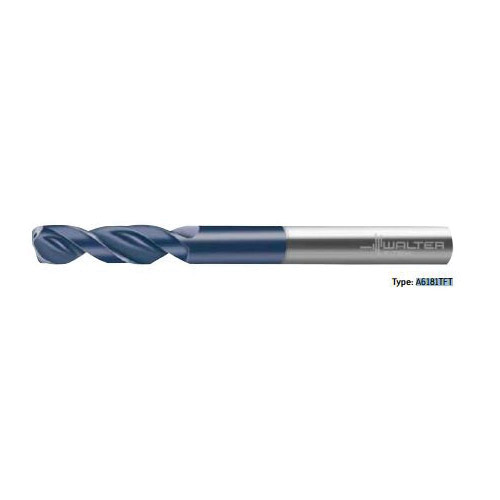

Titex A6181TFT-5/32IN XD Pilot A6181TFT Pilot Drill With Internal Coolant Channel, 3.969 mm Dia x 74 mm L, 2 Flutes, 24 mm
Pilot Point Drill Bits
PDW~9982202
MFG #: A6181TFT-5/32IN
Walter (Valentine)
106.00000
/ ea
Titex XD Pilot Pilot Drill, Series: A6181TFT, 3.969 mm Dia, 74 mm Overall Length, 2XD Cutting Depth, 2 Flutes, Spiral Flute, 24 mm Flute Length, 6 mm Shank, Cylindrical/MegaJet/Alpha® 4 XD Shank, 150 deg Point, Right Hand Cutting, Solid Carbide Cutting Edge, K30F Solid Carbide, TiNAl TOP Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials, Steel, Stainless Steel, High Temperature Alloys and Titanium Alloys
- Features
| 10 to 30 bar coolant pressure |
| p7 Cutting diameter tolerance |
| h6 Shank diameter tolerance |
| 16 mm L usable |
| 3 Coolant style |
| 0.532 mm L point |
| ANSI Code: A6181TFT-5/32IN |
| ISO Code: A6181TFT-5/32IN |
