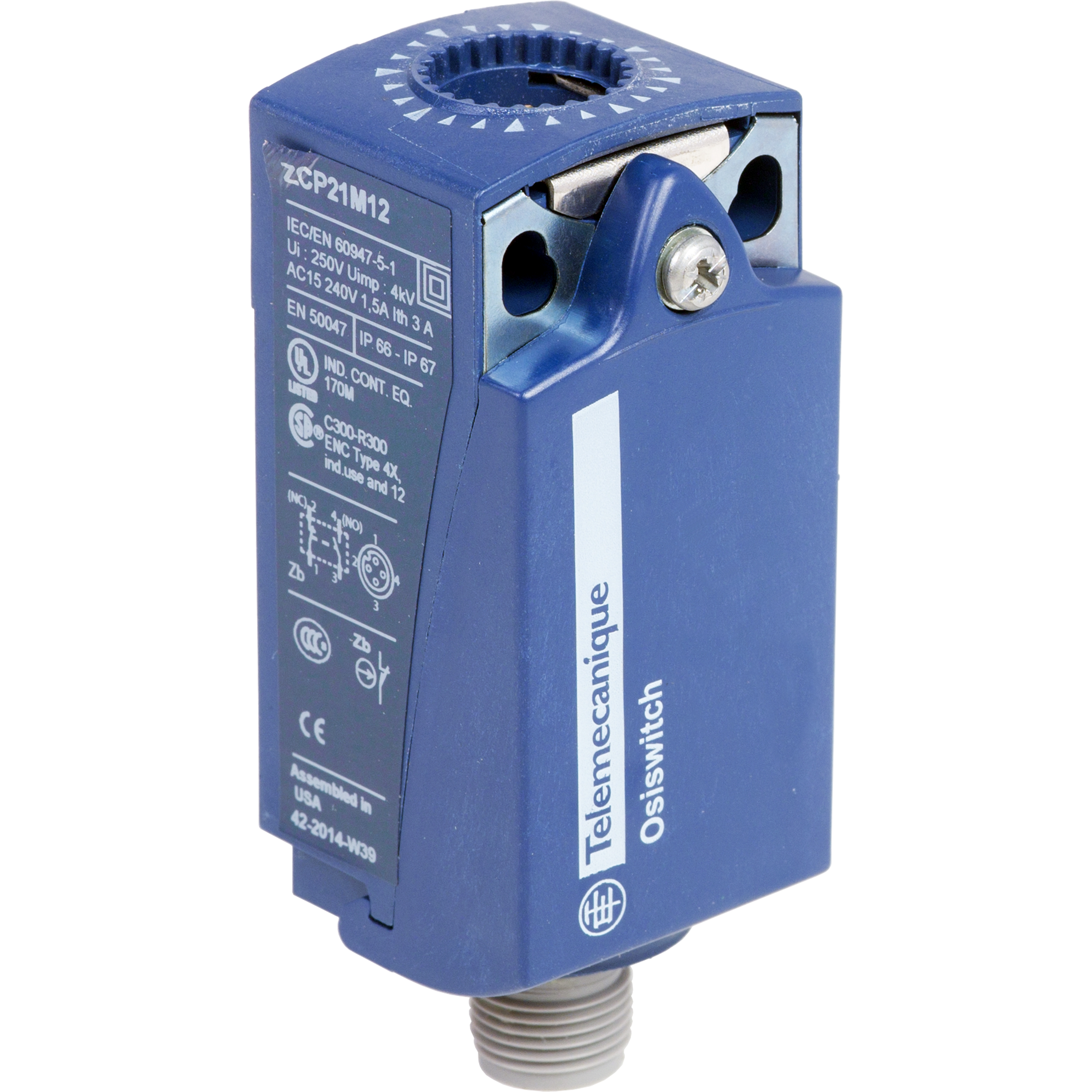

Telemecanique ZCP21M12 LIMIT SWITCH 24VAC 4A
SKU272558
MFGR #ZCP21M12
Your Cost: $80.08/ea
Telemecanique Sensors ZCP21M12 LIMIT SWITCH 24VAC 4A PLAST ZCP,-25...70 deg.C,1 NC + 1 NO,3 A,IEC, UL listed, CSA,Male connector M12, 4 pins,OsiSense,OsiSense XC,fixed,limit switch body,Standard compact,XCKP,ZCP,ZCP,fixed,fixed
Telemecanique Sensors ZCP21M12 LIMIT SWITCH 24VAC 4A PLAST ZCP,-25...70 deg.C,1 NC + 1 NO,3 A,IEC, UL listed, CSA,Male connector M12, 4 pins,OsiSense,OsiSense XC,fixed,limit switch body,Standard compact,XCKP,ZCP,ZCP,fixed,fixed
Action Snap action Alternate Catalog Number ZCP21M12 Amperage Rating 3 A Application XCKP ARRA Compliant N Brand Telemecanique Sensors Buy American Compliant N Catalog Number ZCP21M12 Closed Contact Resistance 25 MOHM IEC 60255-7 CATEGORY 3 Connection Male connector M12, 4 pins Connection Type 4-Pin M12 Male Contact Configuration 1NO-1NC Contact Rating 1.5 A at 240 VAC, 0.1 A at 250 VDC Country of Origin ID Currency USD Dimensions 2.56 in H x 1.22 in W x 1.18 in D EU RoHS Indicator Y Gross Volume Per Pack 15.55 Gross Volume per Pack Metric 254.82 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 69.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 3.3000 in Height [Metric] 3.3000 cm Item Group 22418 Length 9.7000 in Length [Metric] 9.7000 cm Manufacturer Telemecanique Sensors Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880394&lang=en-us Number Of Poles 2 Operating Temperature -25-70 A°C Returnable Y Series ZCP Size 30 MM,31 MM,65-65 MM Standard IEC, UL LISTED, CSA Stock Status NONSTOCK Sub Brand ZCP Suitable For Use With XCKP Standard Compact Limit Switch Temperature Rating -25 to 70 °C Type 2-Pole Fixed UNSPSC 39122213 UPC 11 78590151653 UPC 12 785901516538 Voltage Rating 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A Warranty Description Contractual Warranty:18 months Width 4.0000 in Width [Metric] 4.0000 cm XCKP FIXED
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap action |
| Alternate Catalog Number | ZCP21M12 |
| Amperage Rating | 3 A |
| Application | XCKP |
| ARRA Compliant | N |
| Brand | Telemecanique Sensors |
| Buy American Compliant | N |
| Catalog Number | ZCP21M12 |
| Closed Contact Resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | Male connector M12, 4 pins |
| Connection Type | 4-Pin M12 Male |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 1.5 A at 240 VAC, 0.1 A at 250 VDC |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 2.56 in H x 1.22 in W x 1.18 in D |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.55 |
| Gross Volume per Pack Metric | 254.82 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 69.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 3.3000 in |
| Height [Metric] | 3.3000 cm |
| Item Group | 22418 |
| Length | 9.7000 in |
| Length [Metric] | 9.7000 cm |
| Manufacturer | Telemecanique Sensors |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=880394&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | ZCP |
| Size | 30 MM,31 MM,65-65 MM |
| Standard | IEC, UL LISTED, CSA |
| Stock Status | NONSTOCK |
| Sub Brand | ZCP |
| Suitable For Use With | XCKP Standard Compact Limit Switch |
| Temperature Rating | -25 to 70 °C |
| Type | 2-Pole Fixed |
| UNSPSC | 39122213 |
| UPC 11 | 78590151653 |
| UPC 12 | 785901516538 |
| Voltage Rating | 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A |
| Warranty Description | Contractual Warranty:18 months |
| Width | 4.0000 in |
| Width [Metric] | 4.0000 cm |
| XCKP |
| FIXED |
