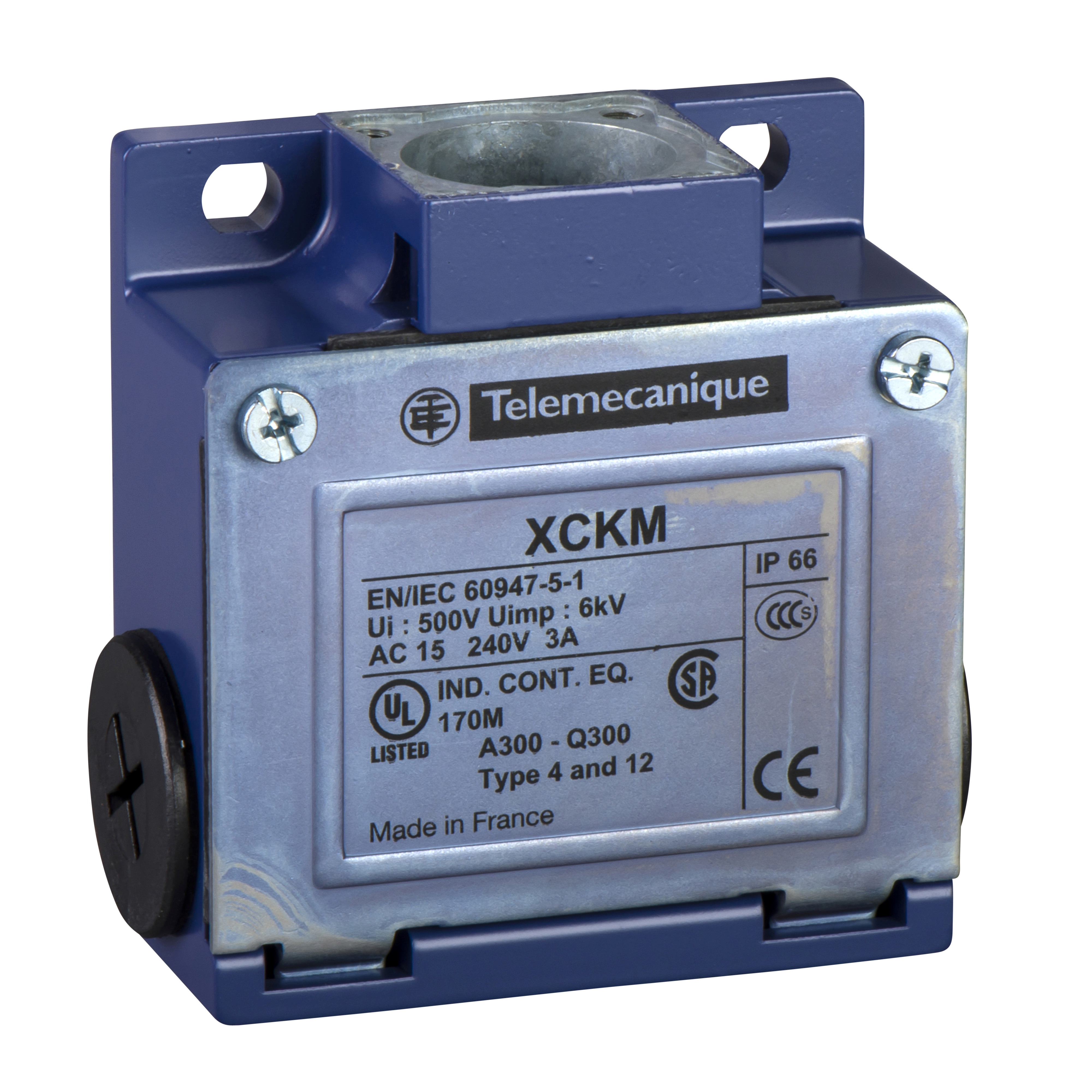

Telemecanique ZCKM1H29 LIMIT SWITCH PARTS
SKU402756
MFGR #ZCKM1H29
Your Cost: $80.92/ea
Telemecanique Sensors ZCKM1H29 LIMIT SWITCH PARTS,-25...70 deg.C for standard environment,1 NC + 1 NO,10 A,2P,3 entries tapped for M20 x 1.5 cable gland,fixed,300 V (CSA, UL) 500 V (IEC),IEC, UL listed, CSA,IP66,OsiSense,OsiSense XC,fixed,limit switch body,Screw-clamp terminals,XCKM,ZCKM,ZCKM,standard format,fixed,standard environment
Telemecanique Sensors ZCKM1H29 LIMIT SWITCH PARTS,-25...70 deg.C for standard environment,1 NC + 1 NO,10 A,2P,3 entries tapped for M20 x 1.5 cable gland,fixed,300 V (CSA, UL) 500 V (IEC),IEC, UL listed, CSA,IP66,OsiSense,OsiSense XC,fixed,limit switch body,Screw-clamp terminals,XCKM,ZCKM,ZCKM,standard format,fixed,standard environment
Action Snap action Alternate Catalog Number ZCKM1H29 Amperage Rating 10 A Application XCKM ARRA Compliant N Brand Telemecanique Sensors Buy American Compliant N Catalog Number ZCKM1H29 Closed Contact Resistance 0.25 MOHM IEC 60255-7 CATEGORY 3 Connection SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² Connection Type Screw Clamp Contact Configuration 1NO-1NC Contact Rating 3 A at 240 VAC, 0.27 A at 250 VDC Country of Origin ID Currency USD Dimensions 2.52 in H x 2.52 in W x 1.18 in D Enclosure IP66 Enclosure Type IP66/IK05 Environmental Conditions STANDARD ENVIRONMENT EU RoHS Indicator Y Gross Volume Per Pack 11.15 Gross Volume per Pack Metric 182.72 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5100 lb Gross Weight per Pack Metric 230.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908140 Height 3.2000 in Height [Metric] 3.2000 cm Item Group 22416 Length 9.8000 in Length [Metric] 9.8000 cm Manufacturer Telemecanique Sensors Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879872&lang=en-us Number Of Poles 2 Operating Temperature -25-70 A°C STANDARD ENVIRONMENT Returnable Y Series ZCKM Size 1.18 in Standard IK05,IP66 Stock Status NONSTOCK Sub Brand ZCKM Suitable For Use With XCKM Standard Format Limit Switch Temperature Rating -25 to 70 °C Type 2-Pole Fixed UNSPSC 39122213 UPC 11 78590132216 UPC 12 785901322160 Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A Warranty Description Contractual Warranty:18 months Width 6.6000 in Width [Metric] 6.6000 cm XCKM FIXED Without local display
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap action |
| Alternate Catalog Number | ZCKM1H29 |
| Amperage Rating | 10 A |
| Application | XCKM |
| ARRA Compliant | N |
| Brand | Telemecanique Sensors |
| Buy American Compliant | N |
| Catalog Number | ZCKM1H29 |
| Closed Contact Resistance | 0.25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 3 A at 240 VAC, 0.27 A at 250 VDC |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 2.52 in H x 2.52 in W x 1.18 in D |
| Enclosure | IP66 |
| Enclosure Type | IP66/IK05 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 11.15 |
| Gross Volume per Pack Metric | 182.72 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5100 lb |
| Gross Weight per Pack Metric | 230.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908140 |
| Height | 3.2000 in |
| Height [Metric] | 3.2000 cm |
| Item Group | 22416 |
| Length | 9.8000 in |
| Length [Metric] | 9.8000 cm |
| Manufacturer | Telemecanique Sensors |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879872&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C STANDARD ENVIRONMENT |
| Returnable | Y |
| Series | ZCKM |
| Size | 1.18 in |
| Standard | IK05,IP66 |
| Stock Status | NONSTOCK |
| Sub Brand | ZCKM |
| Suitable For Use With | XCKM Standard Format Limit Switch |
| Temperature Rating | -25 to 70 °C |
| Type | 2-Pole Fixed |
| UNSPSC | 39122213 |
| UPC 11 | 78590132216 |
| UPC 12 | 785901322160 |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.6000 in |
| Width [Metric] | 6.6000 cm |
| XCKM |
| FIXED |
| Without local display |
