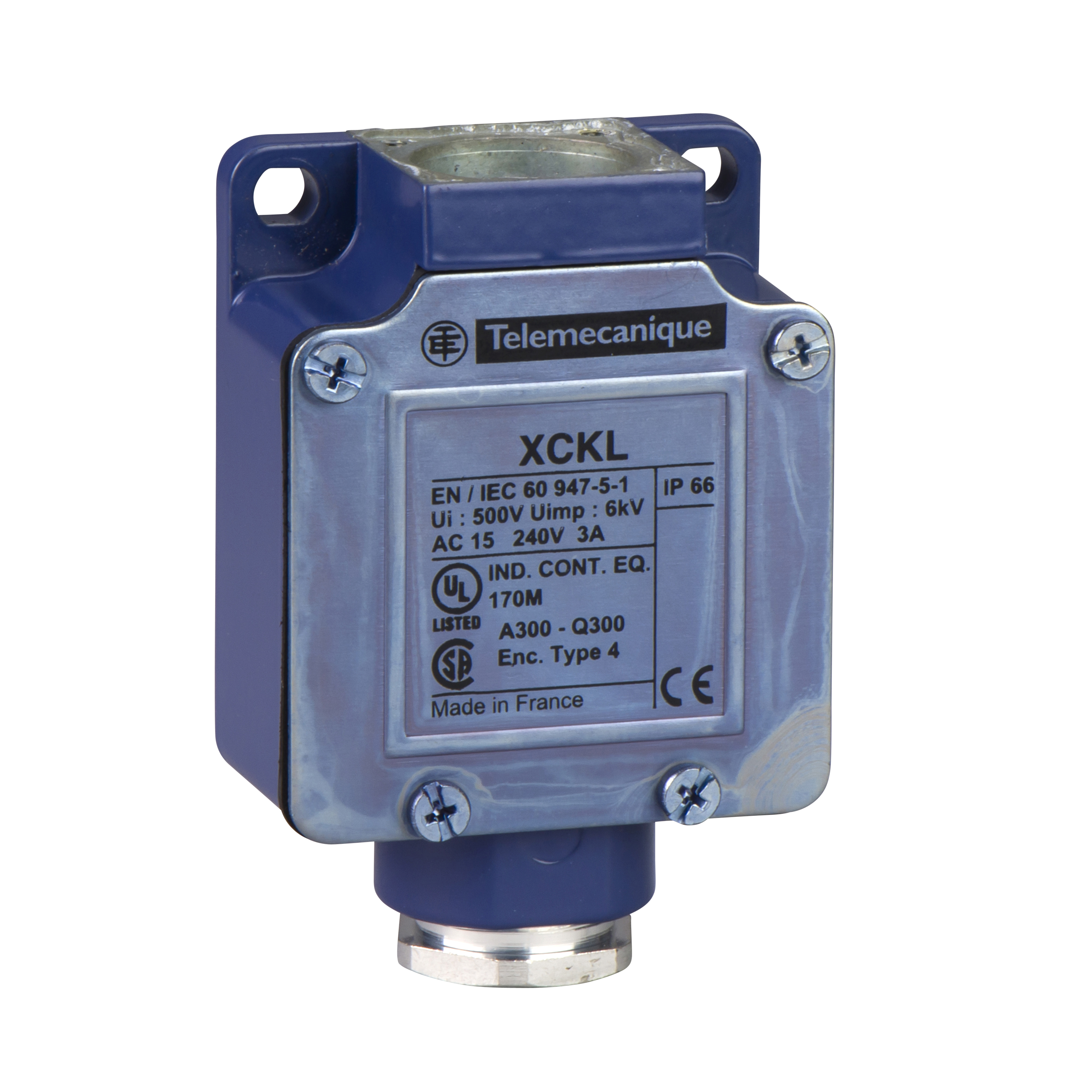

Telemecanique ZCKL1H7 OsiSense® ZCK Limit Switch Body, 1NO-1NC, 10 A at 500 VAC Contact Rating, IP65/IK08 Enclosure
Custom_Product_Images_Illustration
Telemecanique ZCKL1H7 OsiSense® ZCK Limit Switch Body, 1NO-1NC, 10 A at 500 VAC Contact Rating, IP65/IK08 Enclosure
SKU279271
MFGR #ZCKL1H7
Your Cost: $151.86/ea
Telemecanique Sensors ZCKL1H7 LIMIT SWITCH,-25...70 deg.C for standard environment,1 NC + 1 NO,1 entry tapped for 1/2 NPT conduit,fixed,10 A,300 V (CSA, UL) 500 V (IEC),IEC, UL listed, CSA,IP66,OsiSense,OsiSense XC,fixed,limit switch body,Screw-clamp terminals,XCKL,ZCKL,ZCKL,standard format,fixed,standard environment
Telemecanique Sensors ZCKL1H7 LIMIT SWITCH,-25...70 deg.C for standard environment,1 NC + 1 NO,1 entry tapped for 1/2 NPT conduit,fixed,10 A,300 V (CSA, UL) 500 V (IEC),IEC, UL listed, CSA,IP66,OsiSense,OsiSense XC,fixed,limit switch body,Screw-clamp terminals,XCKL,ZCKL,ZCKL,standard format,fixed,standard environment
Action Snap action Alternate Catalog Number ZCKL1H7 Amperage Rating 10 A Application XCKL ARRA Compliant N Brand Telemecanique Sensors Buy American Compliant N Catalog Number ZCKL1H7 Closed Contact Resistance 0.25 MOHM IEC 60255-7 CATEGORY 3 Connection SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² Connection Type Screw Clamp Contact Configuration 1NO-1NC Contact Rating 10 A at 500 VAC Country of Origin FR Currency USD Dimensions 2.83 in H x 2.05 in W x 1.18 in D Enclosure IP66 Enclosure Type IP65/IK08 Environmental Conditions STANDARD ENVIRONMENT EU RoHS Indicator Y Gross Volume Per Pack 10.82 Gross Volume per Pack Metric 177.31 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.4600 lb Gross Weight per Pack Metric 210.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 3.6000 in Height [Metric] 3.6000 cm Item Group 22416 Length 10.2000 in Length [Metric] 10.2000 cm Manufacturer Telemecanique Sensors Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879822&lang=en-us Number Of Poles 2 Operating Temperature -25-70 A°C STANDARD ENVIRONMENT Returnable Y Series ZCK Size 1.18 in Standard IK05,IP66 Standards UL Listed, CSA Certified, IEC 60947-1 Standard, RoHS Compliant Stock Status NONSTOCK Sub Brand ZCKL Suitable For Use With Non-Plug-In XCKL Series Limit Switch Temperature Rating -40 to 70 °C Type LIMIT SWITCH BODY UNSPSC 39122213 UPC 11 78590146670 UPC 12 785901466703 Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A Warranty Description Contractual Warranty:18 months Width 6.3000 in Width [Metric] 6.3000 cm XCKL FIXED 1 x 0.75 to 2 x 1.5 mm sq clamping capacity 1 entry tapped for 1/2 in NPT cable gland Two poles Snap action Silver plated contacts 0.01 m/min actuation speed 0.25 mOhm resistance across terminals 5000000 operating cycles One steps 10 A current Fixed body
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap action |
| Alternate Catalog Number | ZCKL1H7 |
| Amperage Rating | 10 A |
| Application | XCKL |
| ARRA Compliant | N |
| Brand | Telemecanique Sensors |
| Buy American Compliant | N |
| Catalog Number | ZCKL1H7 |
| Closed Contact Resistance | 0.25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² |
| Connection Type | Screw Clamp |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 10 A at 500 VAC |
| Country of Origin | FR |
| Currency | USD |
| Dimensions | 2.83 in H x 2.05 in W x 1.18 in D |
| Enclosure | IP66 |
| Enclosure Type | IP65/IK08 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 10.82 |
| Gross Volume per Pack Metric | 177.31 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.4600 lb |
| Gross Weight per Pack Metric | 210.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 3.6000 in |
| Height [Metric] | 3.6000 cm |
| Item Group | 22416 |
| Length | 10.2000 in |
| Length [Metric] | 10.2000 cm |
| Manufacturer | Telemecanique Sensors |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879822&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C STANDARD ENVIRONMENT |
| Returnable | Y |
| Series | ZCK |
| Size | 1.18 in |
| Standard | IK05,IP66 |
| Standards | UL Listed, CSA Certified, IEC 60947-1 Standard, RoHS Compliant |
| Stock Status | NONSTOCK |
| Sub Brand | ZCKL |
| Suitable For Use With | Non-Plug-In XCKL Series Limit Switch |
| Temperature Rating | -40 to 70 °C |
| Type | LIMIT SWITCH BODY |
| UNSPSC | 39122213 |
| UPC 11 | 78590146670 |
| UPC 12 | 785901466703 |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.3000 in |
| Width [Metric] | 6.3000 cm |
| XCKL |
| FIXED |
| 1 x 0.75 to 2 x 1.5 mm sq clamping capacity |
| 1 entry tapped for 1/2 in NPT cable gland |
| Two poles |
| Snap action |
| Silver plated contacts |
| 0.01 m/min actuation speed |
| 0.25 mOhm resistance across terminals |
| 5000000 operating cycles |
| One steps |
| 10 A current |
| Fixed body |
