Telemecanique Sensors

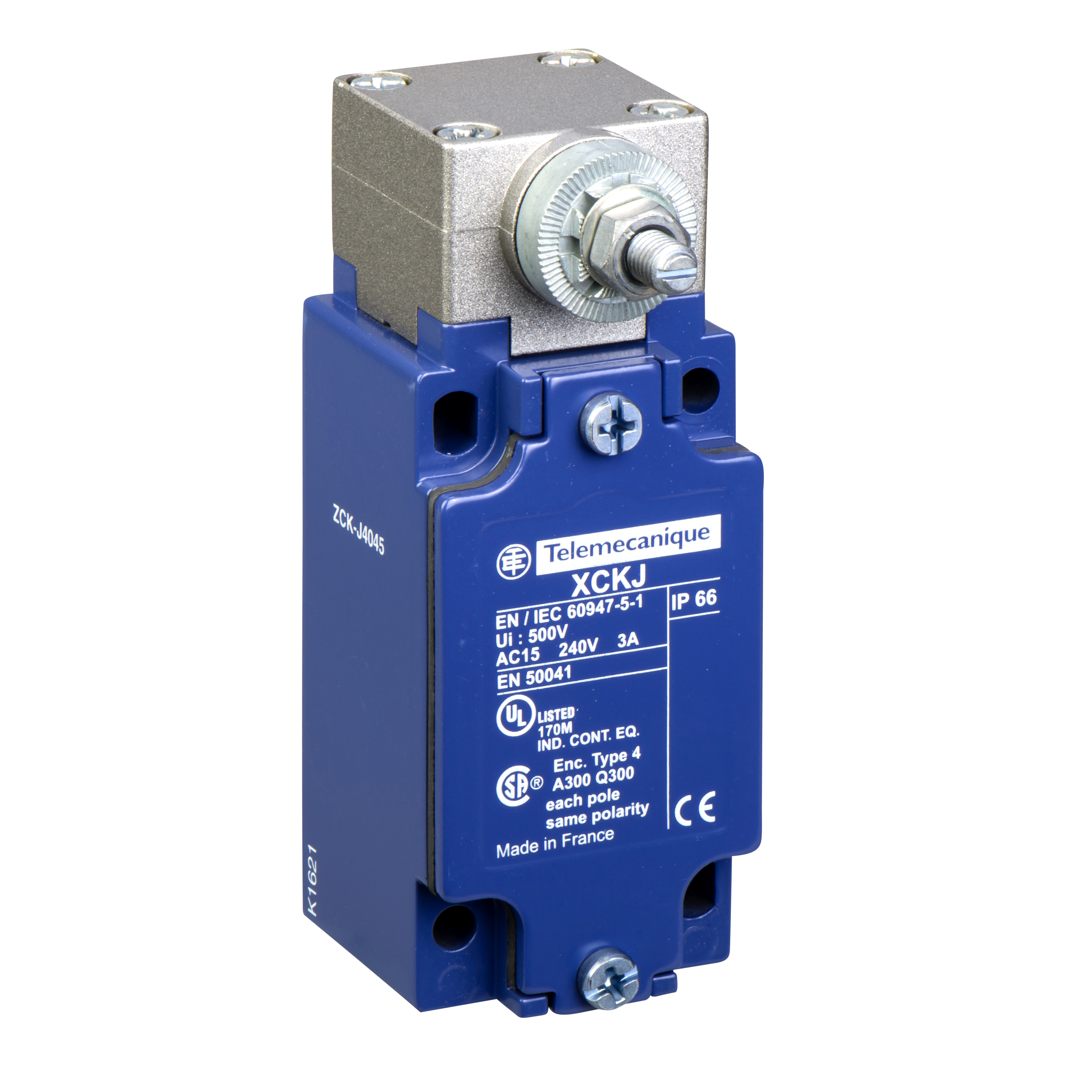

Telemecanique ZCKJ404 LIMIT SWITCH
Custom_Product_Images_Illustration
Telemecanique Sensors
Telemecanique ZCKJ404 LIMIT SWITCH
SKU106105
MFGR #ZCKJ404
Your Cost: $220.67/ea
Telemecanique Sensors ZCKJ404 LIMIT SWITCH,-25...70 deg.C for standard environment,1 entry tapped for Pg 13.5 cable gland,fixed,10 A,2 C/O,IP66,OsiSense XC,fixed,limit switch body with spring return rotary head,XCKJ,ZCKJ,ZCKJ,standard format,fixed,standard environment
Telemecanique Sensors ZCKJ404 LIMIT SWITCH,-25...70 deg.C for standard environment,1 entry tapped for Pg 13.5 cable gland,fixed,10 A,2 C/O,IP66,OsiSense XC,fixed,limit switch body with spring return rotary head,XCKJ,ZCKJ,ZCKJ,standard format,fixed,standard environment
Action Snap action;From left and right Alternate Catalog Number ZCKJ404 Amperage Rating 10 A Application XCKJ ARRA Compliant N Brand Telemecanique Sensors Buy American Compliant N Catalog Number ZCKJ404 Closed Contact Resistance 0.25 MOHM IEC 60255-7 CATEGORY 3 Connection SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA² Connection Type Screw Clamp Contact Configuration 2CO Contact Rating 3 A at 240 VAC, 0.27 A at 250 VDC Country of Origin ID Currency USD Dimensions 4.02 in H x 1.57 in W x 2.36 in D Enclosure IP66 Enclosure Type IP66/IK07 Environmental Conditions STANDARD ENVIRONMENT EU RoHS Indicator Y Gross Volume Per Pack 22.95 Gross Volume per Pack Metric 376.08 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0400 lb Gross Weight per Pack Metric 474.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908140 Height 4.4000 in Height [Metric] 4.4000 cm Item Group 22411 Length 12.7000 in Length [Metric] 12.7000 cm Manufacturer Telemecanique Sensors Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879644&lang=en-us Number Of Poles 2 Operating Temperature -25-70 A°C STANDARD ENVIRONMENT Returnable Y Series ZCKJ Size 2.36 in Standard IK07,IP66 Stock Status NONSTOCK Sub Brand ZCKJ Suitable For Use With XCKJ Standard Format Limit Switch Temperature Rating -25 to 70 °C Type 2-Pole Fixed UNSPSC 39122213 UPC 11 78590164665 UPC 12 785901646655 Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A Warranty Description Contractual Warranty:18 months Width 7.0000 in Width [Metric] 7.0000 cm XCKJ FIXED Without local display, positive opening
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap action;From left and right |
| Alternate Catalog Number | ZCKJ404 |
| Amperage Rating | 10 A |
| Application | XCKJ |
| ARRA Compliant | N |
| Brand | Telemecanique Sensors |
| Buy American Compliant | N |
| Catalog Number | ZCKJ404 |
| Closed Contact Resistance | 0.25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | SCREW-CLAMP TERMINALS 1 X 0.75...2 X 1.5 MMA² |
| Connection Type | Screw Clamp |
| Contact Configuration | 2CO |
| Contact Rating | 3 A at 240 VAC, 0.27 A at 250 VDC |
| Country of Origin | ID |
| Currency | USD |
| Dimensions | 4.02 in H x 1.57 in W x 2.36 in D |
| Enclosure | IP66 |
| Enclosure Type | IP66/IK07 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 22.95 |
| Gross Volume per Pack Metric | 376.08 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0400 lb |
| Gross Weight per Pack Metric | 474.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908140 |
| Height | 4.4000 in |
| Height [Metric] | 4.4000 cm |
| Item Group | 22411 |
| Length | 12.7000 in |
| Length [Metric] | 12.7000 cm |
| Manufacturer | Telemecanique Sensors |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879644&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C STANDARD ENVIRONMENT |
| Returnable | Y |
| Series | ZCKJ |
| Size | 2.36 in |
| Standard | IK07,IP66 |
| Stock Status | NONSTOCK |
| Sub Brand | ZCKJ |
| Suitable For Use With | XCKJ Standard Format Limit Switch |
| Temperature Rating | -25 to 70 °C |
| Type | 2-Pole Fixed |
| UNSPSC | 39122213 |
| UPC 11 | 78590164665 |
| UPC 12 | 785901646655 |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
| Warranty Description | Contractual Warranty:18 months |
| Width | 7.0000 in |
| Width [Metric] | 7.0000 cm |
| XCKJ |
| FIXED |
| Without local display, positive opening |
