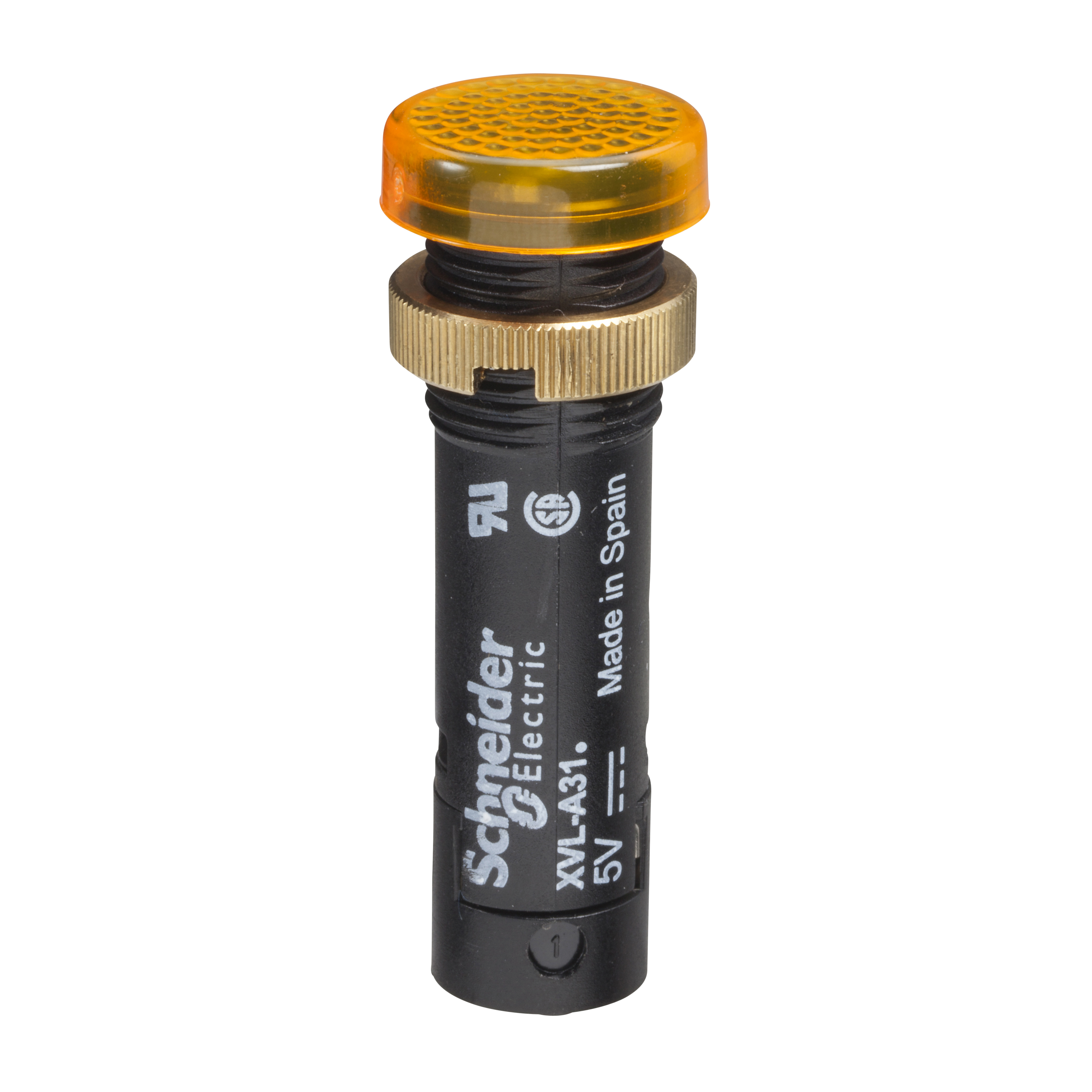

Telemecanique XVLA335 XVL Pilot Light With Integral Lens Cap, 24 VDC, 18 mA, Panel Mount
Custom_Product_Images_Illustration
Telemecanique XVLA335 XVL Pilot Light With Integral Lens Cap, 24 VDC, 18 mA, Panel Mount
SKU671684
MFGR #XVLA335
$/ea
Schneider Electric XVLA335 PILOT LIGHT 24V 12MM +OPTIONS,12mm,24 V DC,Covered LED,Harmony XVL,IP40,LED pilot light with integral lens cap,Panel,UL, CSA,Yellow
Schneider Electric XVLA335 PILOT LIGHT 24V 12MM +OPTIONS,12mm,24 V DC,Covered LED,Harmony XVL,IP40,LED pilot light with integral lens cap,Panel,UL, CSA,Yellow
Alternate Catalog Number XVLA335 Amperage Rating 18 mA ARRA Compliant N Average Life 100000 hr Brand Schneider Electric Buy American Compliant N Catalog Number XVLA335 Color Yellow Connection threaded connector 1 x 0.2...1 x 1.5 mm² Country of Origin ES Currency USD Enclosure Type IP40/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Fixture Type Covered Gross Volume Per Pack 0.61 Gross Volume per Pack Metric 10.00 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0700 lb Gross Weight per Pack Metric 7.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8531809026 Height 1.6000 in Height [Metric] 1.6000 cm Illumination Type Covered LED Item Group 22460 Lamp Type LED Length 4.9000 in Length [Metric] 4.9000 cm Lens Color Yellow Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=664770&lang=en-us Mounting Panel Mounting Type Panel Operating Temperature -25-70 A°C Returnable Y Series XVL Shape Round Size 12 mm Standard CSA-UL,IP65 IEC 60529 WITH SEAL XVLZ912)-IP65 NF C 20-010 WITH SEAL XVLZ912)-IP40 IEC 60529-IP40 NF C 20-010 Stock Status NONSTOCK Style Integral Sub Brand XVL Terminal Type Threaded Type LED pilot light with integral lens cap UNSPSC 39121534 Voltage Rating 24 VDC Warranty Description Contractual Warranty:18 months Width 1.6000 in Width [Metric] 1.6000 cm IP40 CONFORMING TO IEC 60529-IP40 CONFORMING TO NF C 20-010-IP65 (WITH SEAL XVLZ912) CONFORMING TO IEC 60529-IP65 (WITH SEAL XVLZ912) CONFORMING TO IEC 60529-IP65 (WITH SEAL XVLZ912) CONFORMING TO NF C 20-010 Built-in by diode integral ballast resistor and reverse polarity protection diode protection type Highly-resistant to shocks, vibrations and over voltage Low power consumption Very long life and low maintenance cost Low power dissipation Mounting on small control panel 50 V rated insulation voltage 16 mm H x 16 mm W x 51 mm D 100000 hr bulb lifespan -25 to 70 deg C operation temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | XVLA335 |
| Amperage Rating | 18 mA |
| ARRA Compliant | N |
| Average Life | 100000 hr |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | XVLA335 |
| Color | Yellow |
| Connection | threaded connector 1 x 0.2...1 x 1.5 mm² |
| Country of Origin | ES |
| Currency | USD |
| Enclosure Type | IP40/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Fixture Type | Covered |
| Gross Volume Per Pack | 0.61 |
| Gross Volume per Pack Metric | 10.00 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0700 lb |
| Gross Weight per Pack Metric | 7.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8531809026 |
| Height | 1.6000 in |
| Height [Metric] | 1.6000 cm |
| Illumination Type | Covered LED |
| Item Group | 22460 |
| Lamp Type | LED |
| Length | 4.9000 in |
| Length [Metric] | 4.9000 cm |
| Lens Color | Yellow |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=664770&lang=en-us |
| Mounting | Panel |
| Mounting Type | Panel |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | XVL |
| Shape | Round |
| Size | 12 mm |
| Standard | CSA-UL,IP65 IEC 60529 WITH SEAL XVLZ912)-IP65 NF C 20-010 WITH SEAL XVLZ912)-IP40 IEC 60529-IP40 NF C 20-010 |
| Stock Status | NONSTOCK |
| Style | Integral |
| Sub Brand | XVL |
| Terminal Type | Threaded |
| Type | LED pilot light with integral lens cap |
| UNSPSC | 39121534 |
| Voltage Rating | 24 VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.6000 in |
| Width [Metric] | 1.6000 cm |
| IP40 CONFORMING TO IEC 60529-IP40 CONFORMING TO NF C 20-010-IP65 (WITH SEAL XVLZ912) CONFORMING TO IEC 60529-IP65 (WITH SEAL XVLZ912) CONFORMING TO IEC 60529-IP65 (WITH SEAL XVLZ912) CONFORMING TO NF C 20-010 |
| Built-in by diode integral ballast resistor and reverse polarity protection diode protection type |
| Highly-resistant to shocks, vibrations and over voltage |
| Low power consumption |
| Very long life and low maintenance cost |
| Low power dissipation |
| Mounting on small control panel |
| 50 V rated insulation voltage |
| 16 mm H x 16 mm W x 51 mm D |
| 100000 hr bulb lifespan |
| -25 to 70 deg C operation temperature |
