Telemecanique Sensors

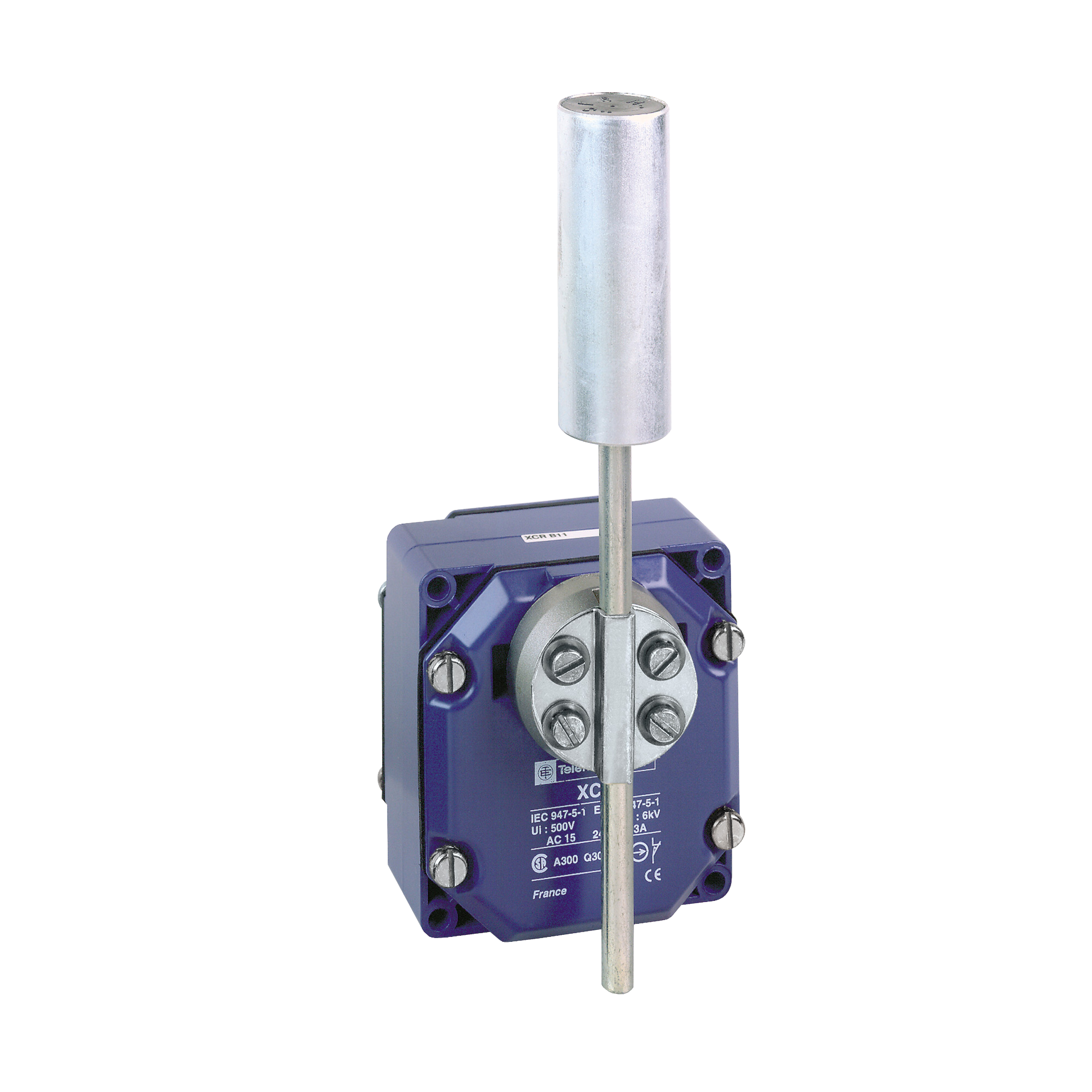

Telemecanique XCRT115 OsiSense® XC Special Format Fixed Limit Switch, 240 VAC, 10 A, Spring Return Roller With Lever Actuator, 2C/O Contact, 2 Poles
Custom_Product_Images_Illustration
Telemecanique Sensors
Telemecanique XCRT115 OsiSense® XC Special Format Fixed Limit Switch, 240 VAC, 10 A, Spring Return Roller With Lever Actuator, 2C/O Contact, 2 Poles
SKU773696
MFGR #XCRT115
Your Cost: $926.15/ea
Telemecanique Sensors OsiSense® XC Limit Switch, Special Format Fixed, Series: XCRT, 240 VAC, 10 A, 2C/O Contact Configuration, 2 Pole, 25 MOhm Closed Contact Resistance, Snap Action, Spring Return Roller With Lever Actuator, 1 x 1/2 to 2 x 2-1/2 sq-mm Screw Clamp Terminal Connection, IP65 Enclosure, 85 mm W x 75 mm D x 95 mm H Size, 5000000 cycles Electrical/300000 cycles Mechanical Operating Cycles, -25 to 70 deg C Operating, Zinc Alloy, Environmental Conditions: -40 to 70 deg C Storage
Telemecanique Sensors OsiSense® XC Limit Switch, Special Format Fixed, Series: XCRT, 240 VAC, 10 A, 2C/O Contact Configuration, 2 Pole, 25 MOhm Closed Contact Resistance, Snap Action, Spring Return Roller With Lever Actuator, 1 x 1/2 to 2 x 2-1/2 sq-mm Screw Clamp Terminal Connection, IP65 Enclosure, 85 mm W x 75 mm D x 95 mm H Size, 5000000 cycles Electrical/300000 cycles Mechanical Operating Cycles, -25 to 70 deg C Operating, Zinc Alloy, Environmental Conditions: -40 to 70 deg C Storage
Action Snap Alternate Catalog Number XCRT115 Application For conveyor belt shift monitoring ARRA Compliant N Buy American Compliant N Catalog Number XCRT115 Closed Contact Resistance 25 Connection Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² Connection Type 1 x 1/2 to 2 x 2-1/2 sq-mm Screw Clamp Terminal Country of Origin ID Currency USD Enclosure Type IP65 Environmental Conditions -40 to 70 deg C Storage EU RoHS Indicator Y Gross Volume Per Pack 209.00 Gross Volume per Pack Metric 3424.88 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.3600 lb Gross Weight per Pack Metric 1.31 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509055 Height 9.0000 in Height [Metric] 9.0000 cm Length 13.3000 in Length [Metric] 13.3000 cm Material Zinc Alloy Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858574&lang=en-us Mounting BY THE BODY Number Of Poles 2 Operating Temperature -25 to 70 Returnable N Series XCRT Size 85 mm W x 75 mm D x 95 mm H Standard 30 GN 18 MS IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,EN 60947-5-1-NF C 79-130-CSA C22.2 NO 14-IEC 60947-5-1-IEC 60204-1-EN 60204-1,IP65 IEC 60529 Sub Brand XCRT Substitute Product Catalog Number XCRZ42 Type Special Format Fixed UNSPSC 39122213 Warranty Description Contractual Warranty:18 months Width 23.5000 in Width [Metric] 23.5000 cm Stock Status NONSTOCK Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Actuator Spring Return Roller With Lever Amperage Rating 10 Contact Configuration 2C/O Voltage Rating 240 For conveyor belt shift monitoring Rotary head
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap |
| Alternate Catalog Number | XCRT115 |
| Application | For conveyor belt shift monitoring |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XCRT115 |
| Closed Contact Resistance | 25 |
| Connection | Screw-clamp terminals 1 x 0.5...2 x 2.5 mm² |
| Connection Type | 1 x 1/2 to 2 x 2-1/2 sq-mm Screw Clamp Terminal |
| Country of Origin | ID |
| Currency | USD |
| Enclosure Type | IP65 |
| Environmental Conditions | -40 to 70 deg C Storage |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 209.00 |
| Gross Volume per Pack Metric | 3424.88 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.3600 lb |
| Gross Weight per Pack Metric | 1.31 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 9.0000 in |
| Height [Metric] | 9.0000 cm |
| Length | 13.3000 in |
| Length [Metric] | 13.3000 cm |
| Material | Zinc Alloy |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858574&lang=en-us |
| Mounting | BY THE BODY |
| Number Of Poles | 2 |
| Operating Temperature | -25 to 70 |
| Returnable | N |
| Series | XCRT |
| Size | 85 mm W x 75 mm D x 95 mm H |
| Standard | 30 GN 18 MS IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,EN 60947-5-1-NF C 79-130-CSA C22.2 NO 14-IEC 60947-5-1-IEC 60204-1-EN 60204-1,IP65 IEC 60529 |
| Sub Brand | XCRT |
| Substitute Product Catalog Number | XCRZ42 |
| Type | Special Format Fixed |
| UNSPSC | 39122213 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 23.5000 in |
| Width [Metric] | 23.5000 cm |
| Stock Status | NONSTOCK |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Actuator | Spring Return Roller With Lever |
| Amperage Rating | 10 |
| Contact Configuration | 2C/O |
| Voltage Rating | 240 |
| For conveyor belt shift monitoring |
| Rotary head |
