Telemecanique Sensors

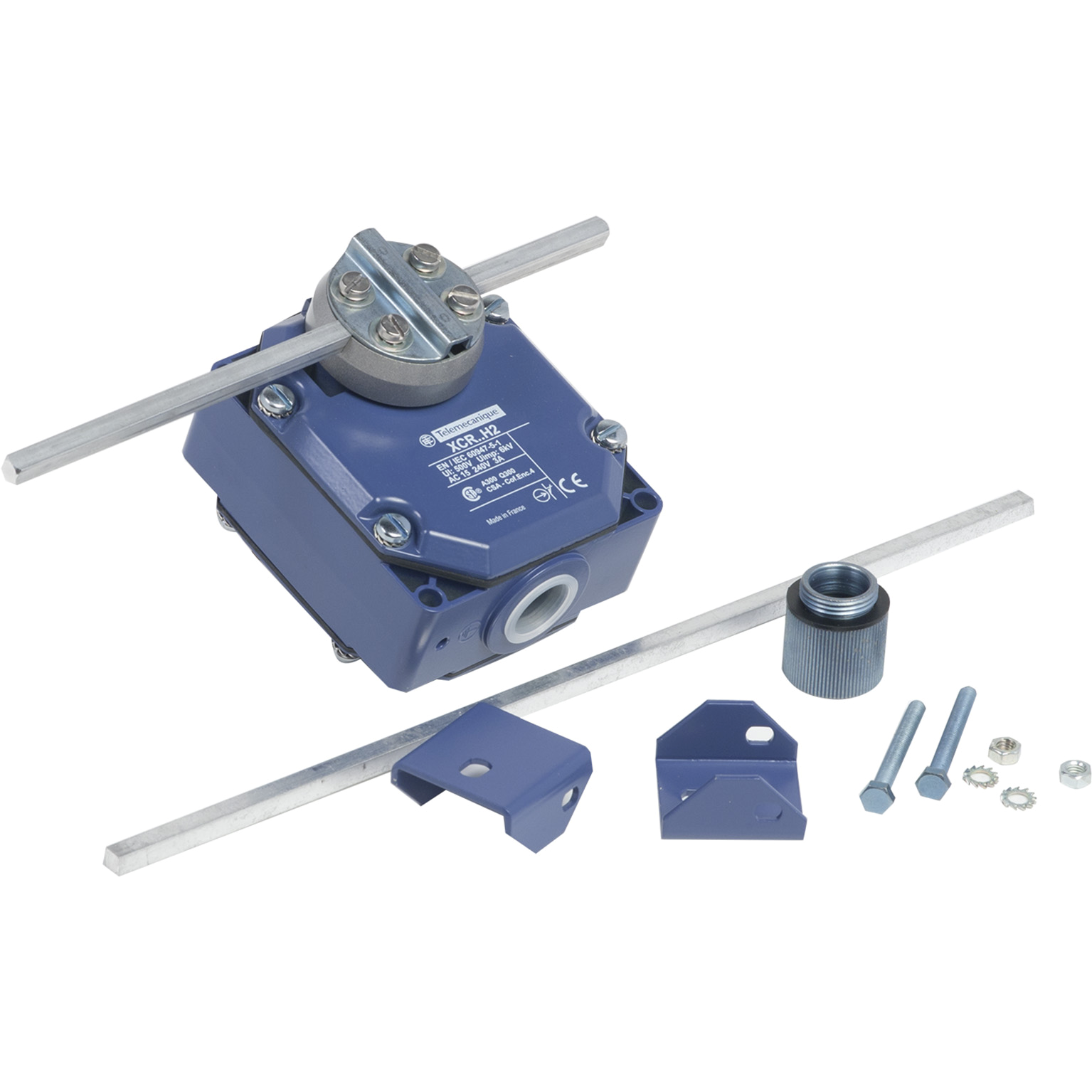

Telemecanique XCRF17H2 OsiSense® Fixed Rotary Limit Switch, 240 VAC, 10 A, 2NO-2NC Contact, 4 Poles
Custom_Product_Images_Illustration
Telemecanique Sensors
Telemecanique XCRF17H2 OsiSense® Fixed Rotary Limit Switch, 240 VAC, 10 A, 2NO-2NC Contact, 4 Poles
SKUPDW~6421925
MFGR #XCRF17H2
Your Cost: $740.29/ea
Telemecanique OsiSense® Limit Switch, Fixed Rotary, Series: XCRF, 240 VAC, 10 A, 2NO-2NC, 4 Pole, Snap, Screw Clamp, IP54, 3.74 in H x 3.35 in W x 2.95 in D, 10000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Metal
Telemecanique OsiSense® Limit Switch, Fixed Rotary, Series: XCRF, 240 VAC, 10 A, 2NO-2NC, 4 Pole, Snap, Screw Clamp, IP54, 3.74 in H x 3.35 in W x 2.95 in D, 10000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Metal
Action BY ANY MOVING PART,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION Alternate Catalog Number XCRF17H2 Application For hoisting and mechanical handling ARRA Compliant N Buy American Compliant N Catalog Number XCRF17H2 Closed Contact Resistance 25 MOHM IEC 60255-7 CATEGORY 3 Connection SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 202.37 Gross Volume per Pack Metric 3316.24 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 2.6000 lb Gross Weight per Pack Metric 1.18 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536509055 Height 12.2000 in Height [Metric] 12.2000 cm Item Group 22449 Length 31.5000 in Length [Metric] 31.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858416&lang=en-us Mounting BY THE BODY Number Of Poles 4 Operating Temperature -25-70 A°C Returnable Y Size 75 MM,85 MM,95-95 MM in Standard 68 GN IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA,IEC 60204-1-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-EN 60204-1-NF C 79-130,IP54 IEC 60529 Sub Brand XCR Type LIMIT SWITCH,ROTARY HEAD UNSPSC 39122213 UPC 11 78590145183 UPC 12 785901451839 Warranty Description Contractual Warranty:18 months Width 9.0000 in Width [Metric] 9.0000 cm Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Actuator STAY PUT CROSSED RODS LEVER METAL SQUARE ROD 6 MM Amperage Rating 10 A Contact Configuration 2 X (1 NC + 1 NO) Voltage Rating 240 VAC For hoisting and mechanical handling FIXED,METAL 4-pole Fixed body Rotary movement of operating head (1) entry tapped for cable gland cable entry 0.35 to 47 in Dia cable By any moving part switch actuation 1 x 0.5 to 2 x 2.5 sq-mm clamping capacity Zb contacts insulation form One number of steps 90 deg maximum displacement angle 90 deg maximum displacement angle <25 MOhm resistance across terminals 10 A short circuit protection 5000000 cycles -40 to 70 deg C temperature rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | BY ANY MOVING PART,LATERAL APPROACH, 2 DIRECTIONS,SNAP ACTION |
| Alternate Catalog Number | XCRF17H2 |
| Application | For hoisting and mechanical handling |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XCRF17H2 |
| Closed Contact Resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 202.37 |
| Gross Volume per Pack Metric | 3316.24 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 2.6000 lb |
| Gross Weight per Pack Metric | 1.18 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 12.2000 in |
| Height [Metric] | 12.2000 cm |
| Item Group | 22449 |
| Length | 31.5000 in |
| Length [Metric] | 31.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=858416&lang=en-us |
| Mounting | BY THE BODY |
| Number Of Poles | 4 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Size | 75 MM,85 MM,95-95 MM in |
| Standard | 68 GN IEC 60068-2-27,9 GN 10-500 HZ)IEC 60068-2-6,CCC-CSA,IEC 60204-1-EN 60947-5-1-CSA C22.2 NO 14-IEC 60947-5-1-EN 60204-1-NF C 79-130,IP54 IEC 60529 |
| Sub Brand | XCR |
| Type | LIMIT SWITCH,ROTARY HEAD |
| UNSPSC | 39122213 |
| UPC 11 | 78590145183 |
| UPC 12 | 785901451839 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 9.0000 in |
| Width [Metric] | 9.0000 cm |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Actuator | STAY PUT CROSSED RODS LEVER METAL SQUARE ROD 6 MM |
| Amperage Rating | 10 A |
| Contact Configuration | 2 X (1 NC + 1 NO) |
| Voltage Rating | 240 VAC |
| For hoisting and mechanical handling |
| FIXED,METAL |
| 4-pole |
| Fixed body |
| Rotary movement of operating head |
| (1) entry tapped for cable gland cable entry |
| 0.35 to 47 in Dia cable |
| By any moving part switch actuation |
| 1 x 0.5 to 2 x 2.5 sq-mm clamping capacity |
| Zb contacts insulation form |
| One number of steps |
| 90 deg maximum displacement angle |
| 90 deg maximum displacement angle |
| <25 MOhm resistance across terminals |
| 10 A short circuit protection |
| 5000000 cycles |
| -40 to 70 deg C temperature rating |
