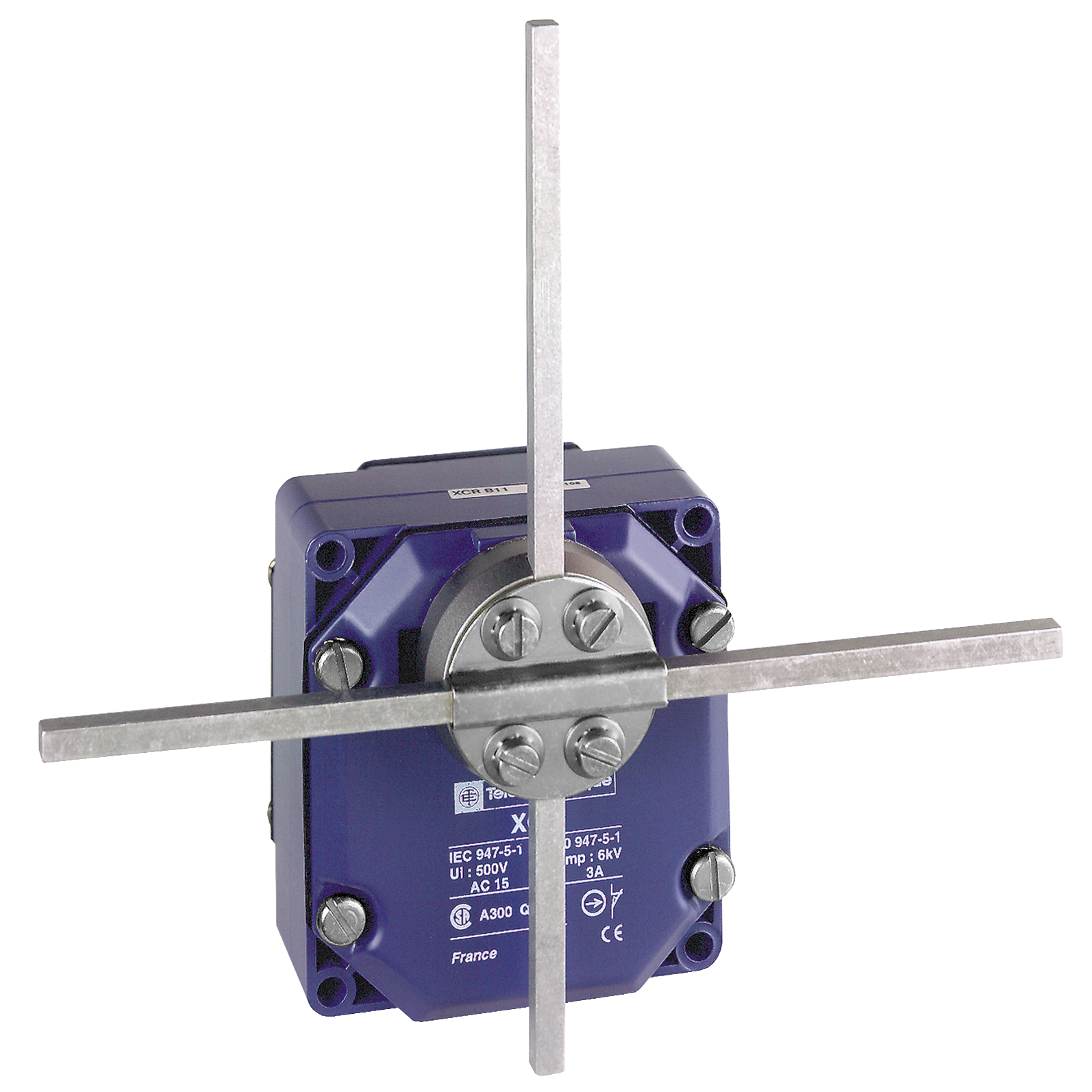

Telemecanique XCRF17 OsiSense® XC Limit Switch, 240 VAC, 10 A, Crossed Rod Lever Actuator, 2NO-2NC Contact, 4 Poles
Rotating Shaft Limit Switches
1124405
MFG #: XCRF17
Telemecanique Sensors
535.72000
/ ea
Telemecanique OsiSense® XC Limit Switch, Series: XCR, 240 VAC, 10 A, 2NO-2NC, 4 Pole, Snap, Crossed Rod Lever, Screw Clamp Terminal, IP54, Body Mount, 95 mm H x 85 mm W x 75 mm D, 10000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Metal
- Brochure URL - c1caadac4b11375ecaf10790722ec2b092021228.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_7R0ZADM549V1F6WK.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_CJGML6IQ05OUDV9N.pdf(Spec Sheet URL)
- Applications
- Features
| For hoisting and mechanical handling |
| 4-pole |
| Fixed body |
| 1-entry tapped for cable gland cable entry |
| 0.35 to 47 in Dia cable |
| By any moving part switch actuation |
| 1 x 0.5 to 2 x 2.5 sq-mm clamping capacity |
| ZB contacts insulation form |
| 1-number of step |
| 0.01 m/min actuation speed |
| <25 MOhm resistance across terminals |
| <25 MOhm resistance across terminals |
| 10 A short circuit protection |
| 5000000 operating cycles |
| -40 to 70 deg C temperature rating |
