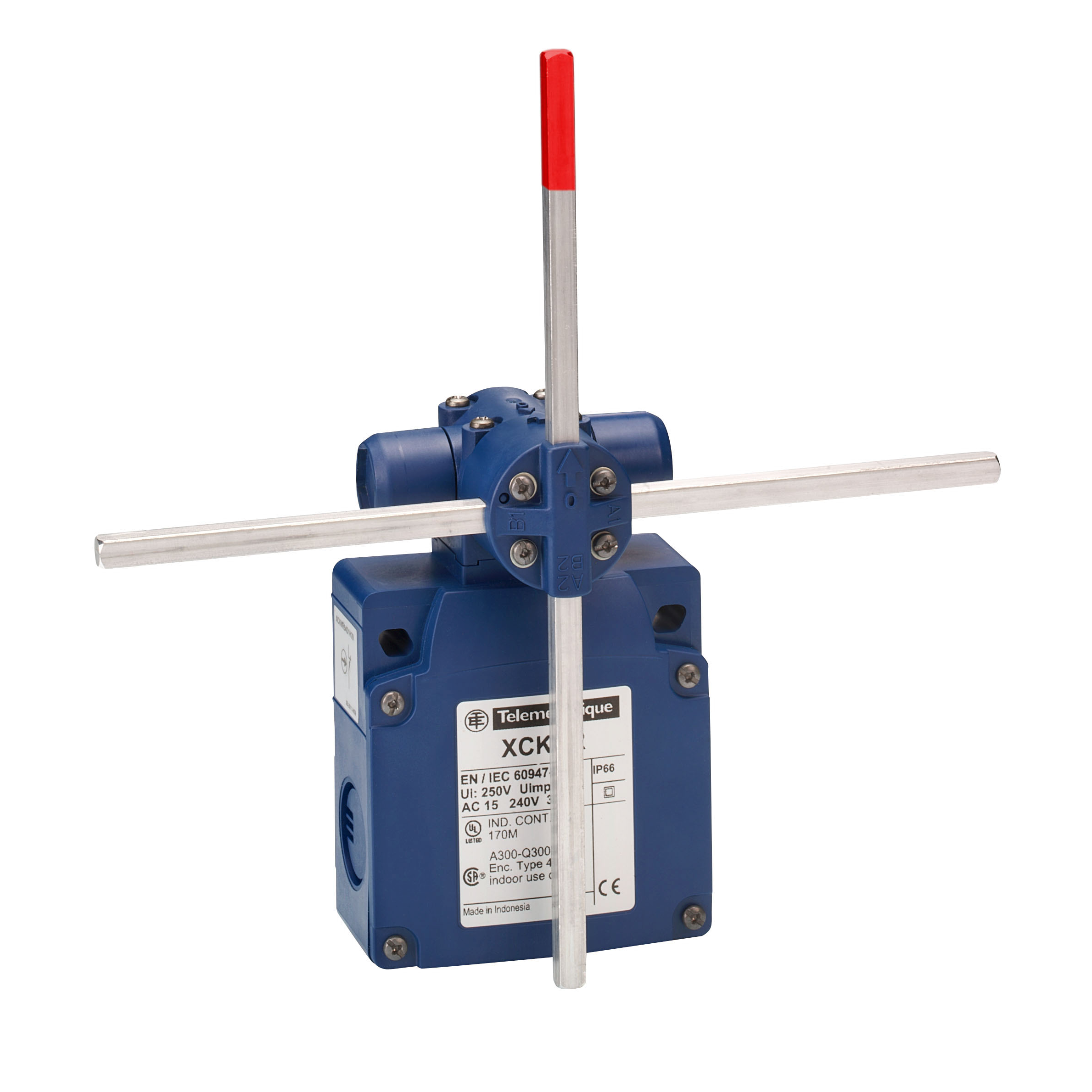

Telemecanique XCKVR54D1H29 OsiSense® XC Fixed Rotary Limit Switch, 4NC Contact, 4 Poles
Rotating Shaft Limit Switches
1343099
MFG #: XCKVR54D1H29
Telemecanique Sensors
389.01000
/ ea
Telemecanique OsiSense® XC Limit Switch, Fixed Rotary, Series: XCKVR, 4NC, 4 Pole, Screw Clamp, IP65 Enclosure, 7.87 in H x 7.87 in W x 2.24 in D, 1000000 Cycles Operating Cycles, -25 to 70 deg C Operating, Plastic
- Brochure URL - c1caadac4b11375ecaf10790722ec2b092021228.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=XCKVR54D1H29-_2D.dwf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_IJPCFGWH1ZU6NM3R.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - files?p_File_Name=S1B83469_01.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_BTP4U1VAM7H9Z26Q.pdf(Spec Sheet URL)
- Applications
- Features
| For use with XCKMR,XCKVR special format limit switch, hoisting and mechanical handling |
| Fixed body |
| Rotary movement of operating head |
| (1) entry tapped and 2-breakout holes for M20 x 1.5 cable gland cable entry |
| 0.28 to 0.51 in Dia cable |
| Slow-break, staggered |
| By any moving part switch actuation |
| 1 x 0.5 to 2 x 2.5 sq-mm clamping capacity |
| Zb contact insulation form |
| 5 electrical position steps |
| 180 deg maximum displacement angle |
| 180 deg maximum displacement angle |
| <25 MOhm resistance across terminals |
| 10 A short circuit protection |
| 1000000 cycles |
| -40 to 70 deg C temperature rating |
