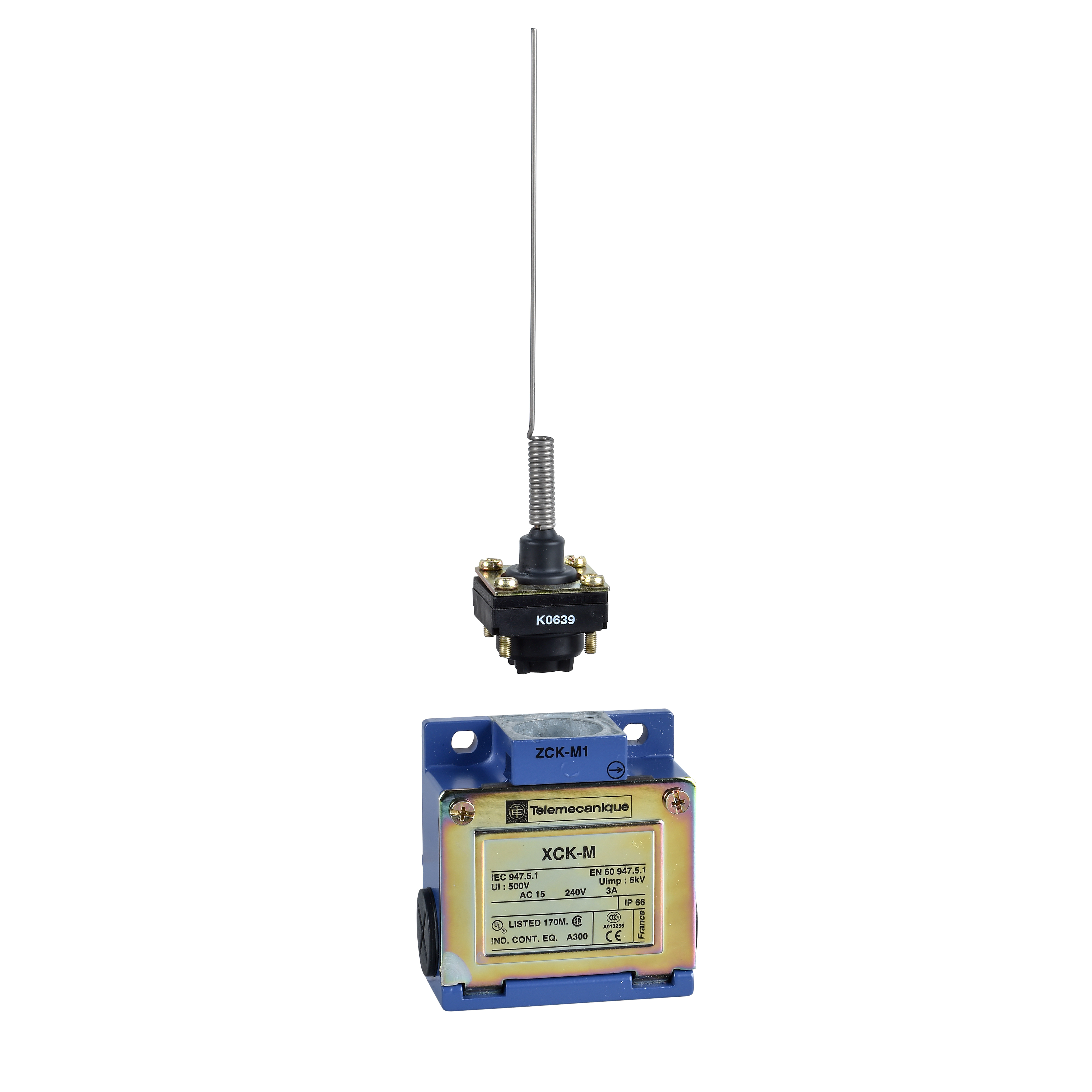

Telemecanique XCKM106 OsiSense® XZ Telemecanique Fixed Multi-Directional Head Standard Format Limit Switch, 240 VAC, 250 VDC, 10 A, Cat Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles
Custom_Product_Images_Illustration
Telemecanique XCKM106 OsiSense® XZ Telemecanique Fixed Multi-Directional Head Standard Format Limit Switch, 240 VAC, 250 VDC, 10 A, Cat Whisker Spring Return Actuator, 1NO-1NC Contact, 2 Poles
SKU373137
MFGR #XCKM106
Your Cost: $146.44/ea
Telemecanique OsiSense® XZ Limit Switch, Fixed Multi-Directional Head Standard Format, 240 VAC, 250 VDC, 10 A, 1NO-1NC Contact Configuration, 2 Pole, Snap Action, Cat Whisker Spring Return Actuator, Screw Clamp Connection, NEMA 4/12/IP65/IP66 Enclosure, Body Mounting, 1.18 in D x 2.52 in H Size, 5000000 cycles Operating Cycles, -25 to 70 deg C Operating, Metal
Telemecanique OsiSense® XZ Limit Switch, Fixed Multi-Directional Head Standard Format, 240 VAC, 250 VDC, 10 A, 1NO-1NC Contact Configuration, 2 Pole, Snap Action, Cat Whisker Spring Return Actuator, Screw Clamp Connection, NEMA 4/12/IP65/IP66 Enclosure, Body Mounting, 1.18 in D x 2.52 in H Size, 5000000 cycles Operating Cycles, -25 to 70 deg C Operating, Metal
Action Snap Alternate Catalog Number XCKM106 Application Classic Applications ARRA Compliant N Buy American Compliant N Catalog Number XCKM106 Closed Contact Resistance 25 MOHM IEC 60255-7 CATEGORY 3 Connection Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² Connection Type Screw Clamp Country of Origin ID Currency USD Enclosure NEMA 4/12 IP65 Enclosure Type NEMA 4/12/IP65/IP66 EU RoHS Indicator Y Gross Volume Per Pack 32.03 Gross Volume per Pack Metric 524.88 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5900 lb Gross Weight per Pack Metric 267.62 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 3.2000 in Height [Metric] 3.2000 cm Item Group 22416 Length 21.6000 in Length [Metric] 21.6000 cm Material Metal Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856528&lang=en-us Mounting BY THE BODY Number Of Poles 2 Operating Cycles 10000000 Operating Temperature -25 to 70 Returnable N Size 2.52 in H x 2.52 in W x 1.18 in D in Standard 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,IEC 60947-5-1-CSA C22.2 NO 14-EN 60204-1-EN 60947-5-1-UL 508-IEC 60204-1,IK05 EN 50102,IP66 EN/IEC 60529,UL-CCC-CSA,CLASS I IEC 61140-CLASS I NF C 20-030 Sub Brand XCKM Substitute Product Catalog Number AB1R11 Type Fixed Multi-Directional Head Standard Format UNSPSC 39122213 UPC 11 78590114830 UPC 12 785901148302 Warranty Description Contractual Warranty:18 months Width 6.4000 in Width [Metric] 6.4000 cm Stock Status NONSTOCK Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Actuator Spring Return Cat Whisker Amperage Rating 10 A Contact Configuration 1NO-1NC Voltage Rating 240 VAC, 250 VDC VAC//VDC Classic Applications FIXED,METAL Spring return type of operator Multi-directional movement of operating head By any moving part switch actuation One number of steps 3 entries tapped for cable entry Two number of pole Zb contact insulation form Zamak body 0.01 m/min actuation speed
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Snap |
| Alternate Catalog Number | XCKM106 |
| Application | Classic Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XCKM106 |
| Closed Contact Resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Connection Type | Screw Clamp |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 4/12 IP65 |
| Enclosure Type | NEMA 4/12/IP65/IP66 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 32.03 |
| Gross Volume per Pack Metric | 524.88 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5900 lb |
| Gross Weight per Pack Metric | 267.62 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 3.2000 in |
| Height [Metric] | 3.2000 cm |
| Item Group | 22416 |
| Length | 21.6000 in |
| Length [Metric] | 21.6000 cm |
| Material | Metal |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856528&lang=en-us |
| Mounting | BY THE BODY |
| Number Of Poles | 2 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 70 |
| Returnable | N |
| Size | 2.52 in H x 2.52 in W x 1.18 in D in |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN 11 MS EN/IEC 60068-2-27,IEC 60947-5-1-CSA C22.2 NO 14-EN 60204-1-EN 60947-5-1-UL 508-IEC 60204-1,IK05 EN 50102,IP66 EN/IEC 60529,UL-CCC-CSA,CLASS I IEC 61140-CLASS I NF C 20-030 |
| Sub Brand | XCKM |
| Substitute Product Catalog Number | AB1R11 |
| Type | Fixed Multi-Directional Head Standard Format |
| UNSPSC | 39122213 |
| UPC 11 | 78590114830 |
| UPC 12 | 785901148302 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.4000 in |
| Width [Metric] | 6.4000 cm |
| Stock Status | NONSTOCK |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Actuator | Spring Return Cat Whisker |
| Amperage Rating | 10 A |
| Contact Configuration | 1NO-1NC |
| Voltage Rating | 240 VAC, 250 VDC VAC//VDC |
| Classic Applications |
| FIXED,METAL |
| Spring return type of operator |
| Multi-directional movement of operating head |
| By any moving part switch actuation |
| One number of steps |
| 3 entries tapped for cable entry |
| Two number of pole |
| Zb contact insulation form |
| Zamak body |
| 0.01 m/min actuation speed |
