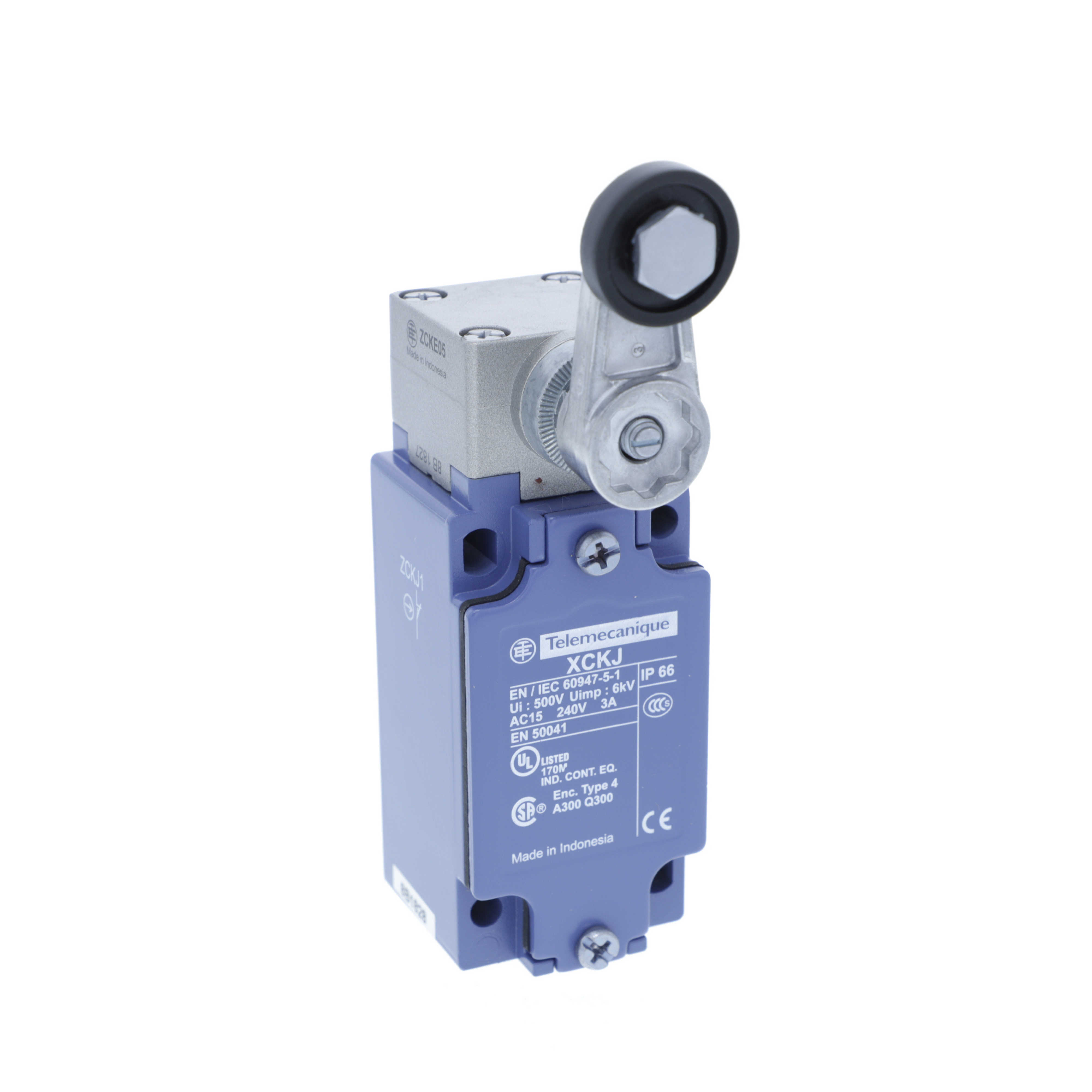

Telemecanique XCKJ10511 OsiSense XC Standard Rotary Actuated Limit Switch, 240 VAC, 10 A, 1NO-1NC, 2 Poles
Custom_Product_Images_Illustration
Telemecanique XCKJ10511 OsiSense XC Standard Rotary Actuated Limit Switch, 240 VAC, 10 A, 1NO-1NC, 2 Poles
SKU97667
MFGR #XCKJ10511
Your Cost: $162.16/ea
Telemecanique Sensors XCKJ10511 LIMIT SWITCH 240VAC 10AMP XCKJ +OPTIONS,-25...70 deg.C,1 NC + 1 NO,1 entry tapped for Pg 13.5 cable gland, cable outer diameter 9...12 mm,fixed,form A conforming to CENELEC EN 50041,10 A,240VAC/250VDC,Conduit Entrance (0.5 NPT) Screw Clamp,Lever Arm with Thermoplastic Roller (ZCKY11) CW and CCW,NEMA 1/2/4/12 IP 66,OsiSense,OsiSense XC,fixed,limit switch,rotary head,UL Listed - CSA Certified - CE Marked,XCKJ,XCKJ,rotary head,standard format,fixed,metal,rotary
Telemecanique Sensors XCKJ10511 LIMIT SWITCH 240VAC 10AMP XCKJ +OPTIONS,-25...70 deg.C,1 NC + 1 NO,1 entry tapped for Pg 13.5 cable gland, cable outer diameter 9...12 mm,fixed,form A conforming to CENELEC EN 50041,10 A,240VAC/250VDC,Conduit Entrance (0.5 NPT) Screw Clamp,Lever Arm with Thermoplastic Roller (ZCKY11) CW and CCW,NEMA 1/2/4/12 IP 66,OsiSense,OsiSense XC,fixed,limit switch,rotary head,UL Listed - CSA Certified - CE Marked,XCKJ,XCKJ,rotary head,standard format,fixed,metal,rotary
Action Lateral approach, 1 or 2 programmable direction;Snap action;By 30° cam Actuator Spring return roller lever thermoplastic A Alternate Catalog Number XCKJ10511 Amperage Rating 10 A Application Industrial ARRA Compliant N Brand Telemecanique Sensors Buy American Compliant N Catalog Number XCKJ10511 Closed Contact Resistance 25 MOHM IEC 60255-7 CATEGORY 3 Connection SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² Contact Configuration 1 NC + 1 NO Country of Origin ID Currency USD Enclosure NEMA 1/2/4/12 IP 66 EU RoHS Indicator Y Gross Volume Per Pack 23.41 Gross Volume per Pack Metric 383.62 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 1.0400 lb Gross Weight per Pack Metric 474.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509055 Height 4.4000 in Height [Metric] 4.4000 cm Item Group 22411 Length 12.8000 in Length [Metric] 12.8000 cm Manufacturer Telemecanique Sensors Material Zamak Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856092&lang=en-us Mounting BY THE BODY Number Of Poles 2 Operating Temperature -25-70 A°C Returnable Y Size 40 MM,44 MM,77-77 MM in Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,CSA C22.2 NO 14-IEC 60947-5-1-CENELEC EN 50041-IEC 60204-1-EN 60204-1-EN 60947-5-1-UL 508,IK07 EN 50102,IP66 IEC 60529 Stock Status NONSTOCK Sub Brand XCKJ Substitute Product Catalog Number ZCKZ021 Type LIMIT SWITCH,ROTARY HEAD UNSPSC 39122213 UPC 11 78590132070 UPC 12 785901320708 Voltage Rating 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A Warranty Description Contractual Warranty:18 months Width 6.8000 in Width [Metric] 6.8000 cm INDUSTRIAL FIXED,METAL XCKJ + option limit switch Snap action contact operation 0.5 in NPT conduit entrance
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Action | Lateral approach, 1 or 2 programmable direction;Snap action;By 30° cam |
| Actuator | Spring return roller lever thermoplastic A |
| Alternate Catalog Number | XCKJ10511 |
| Amperage Rating | 10 A |
| Application | Industrial |
| ARRA Compliant | N |
| Brand | Telemecanique Sensors |
| Buy American Compliant | N |
| Catalog Number | XCKJ10511 |
| Closed Contact Resistance | 25 MOHM IEC 60255-7 CATEGORY 3 |
| Connection | SCREW-CLAMP TERMINALS 1 X 0.34...2 X 1.5 MMA² |
| Contact Configuration | 1 NC + 1 NO |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 1/2/4/12 IP 66 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 23.41 |
| Gross Volume per Pack Metric | 383.62 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 1.0400 lb |
| Gross Weight per Pack Metric | 474.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509055 |
| Height | 4.4000 in |
| Height [Metric] | 4.4000 cm |
| Item Group | 22411 |
| Length | 12.8000 in |
| Length [Metric] | 12.8000 cm |
| Manufacturer | Telemecanique Sensors |
| Material | Zamak |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=856092&lang=en-us |
| Mounting | BY THE BODY |
| Number Of Poles | 2 |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Size | 40 MM,44 MM,77-77 MM in |
| Standard | 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,CCC-CSA-UL,CSA C22.2 NO 14-IEC 60947-5-1-CENELEC EN 50041-IEC 60204-1-EN 60204-1-EN 60947-5-1-UL 508,IK07 EN 50102,IP66 IEC 60529 |
| Stock Status | NONSTOCK |
| Sub Brand | XCKJ |
| Substitute Product Catalog Number | ZCKZ021 |
| Type | LIMIT SWITCH,ROTARY HEAD |
| UNSPSC | 39122213 |
| UPC 11 | 78590132070 |
| UPC 12 | 785901320708 |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
| Warranty Description | Contractual Warranty:18 months |
| Width | 6.8000 in |
| Width [Metric] | 6.8000 cm |
| INDUSTRIAL |
| FIXED,METAL |
| XCKJ + option limit switch |
| Snap action contact operation |
| 0.5 in NPT conduit entrance |
