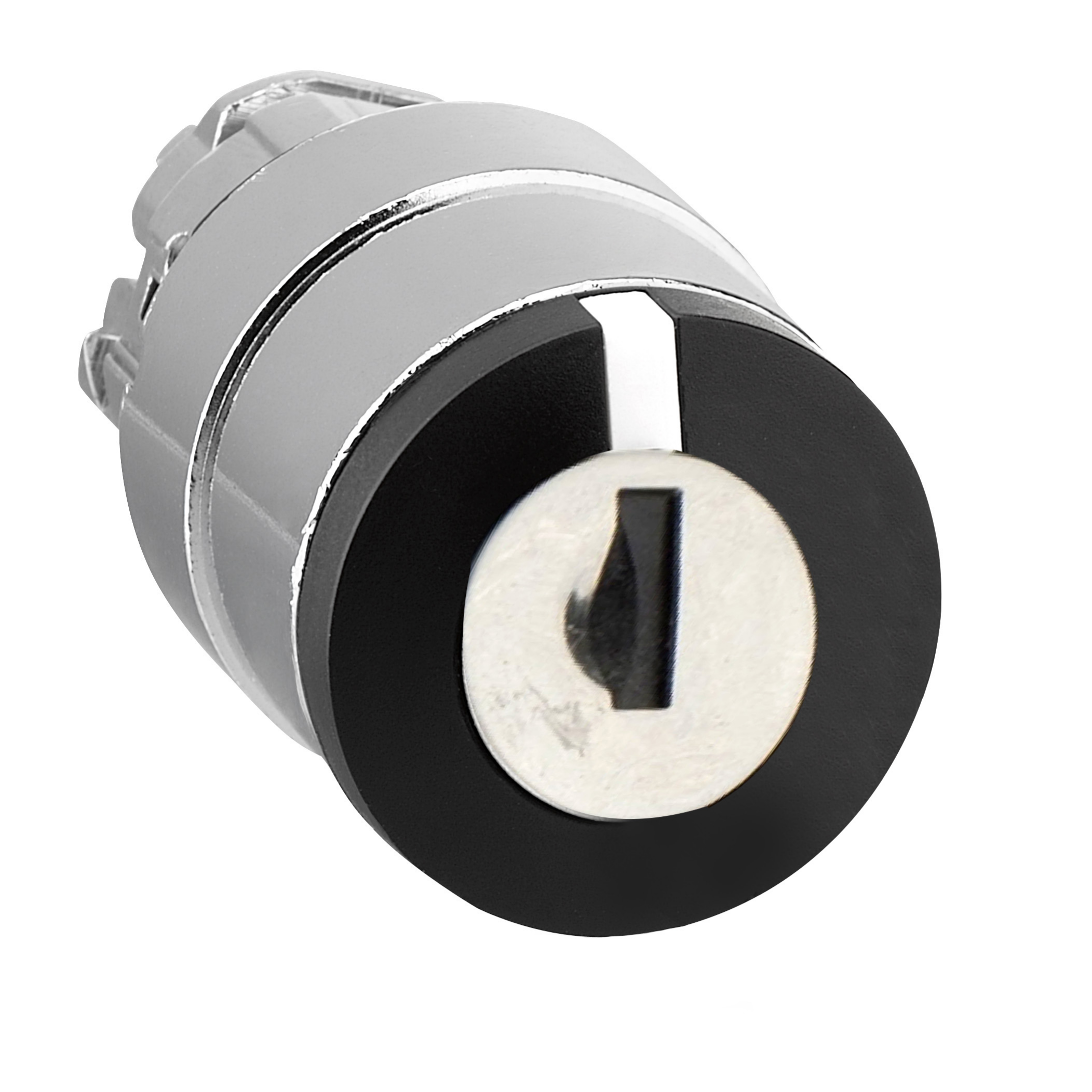

Telemecanique Harmony XB4 Key Switch, 22 mm, 3 Positions, Black
Pilot Devices
47128
MFG #: ZB4BG3
Schneider Electric
98.40000
/ ea
Schneider Electric ZB4BG3 KEY SWITCH, Unmarked,22mm Round,Harmony,IP 65,Key Operated 3 Position (Key Withdrawal Center),Maintained,NEMA 1/2/3/4/4X/13,Non-Illuminated,Selector Switch Operator,UL Listed File Number E164353 CCN NKCR - CSA Certified File Number LR44087 Class 321103 - CE Marked
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=7999272360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_65fe95c83387e8d9f1c878e9f76c3e99d9b4728a8b30da70b2afddf405a80b2e.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB4BG3_2D+Left+Side+View.dwg(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=ZB4BG3_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_VD4QFZ26N5SYLJXW.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_UDOKY6NSRJPGT4WI.pdf(Service Manual URL)
- Tech Drawing URL - 11003_MU3ZAY9OHRQIK8FN.pdf(Tech Drawing URL)
- Spec Sheet URL - 11003_AS2T46KI3LRDPMXH.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_9G4YJKVUWQDPC57N.pdf(Tech Drawing URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2308006EN.pdf(Service Manual URL)
- Video - https://www.youtube.com/embed/kSLYD1dXJVc(Video)
- Service Manual URL - 11003_Z5K7YEDHAFLTQ8XR.pdf(Service Manual URL)
- Applications
- Features
| UNMARKED |
| NON-ILLUMINATED |
| One sale per indivisible quantity |
| Round shape of signaling unit head |
| +/- 45 deg operator position |
| Ronis 455 keylock |
| Center key withdrawal position |
| 1.14 in H x 1.14 in W x 2.83 in D |
| 1015.26 psi (7000000 Pa) at 131 deg F (55 deg C), 0.1 m distance resistance to high pressure washer |
| 1000000 cycles mechanical durability |
| TH protective treatment |
| Class I conforming to IEC 60536 overvoltage category |
| 5 gn (f = 2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance |
| 30 gn (duration = 18 ms) and 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
