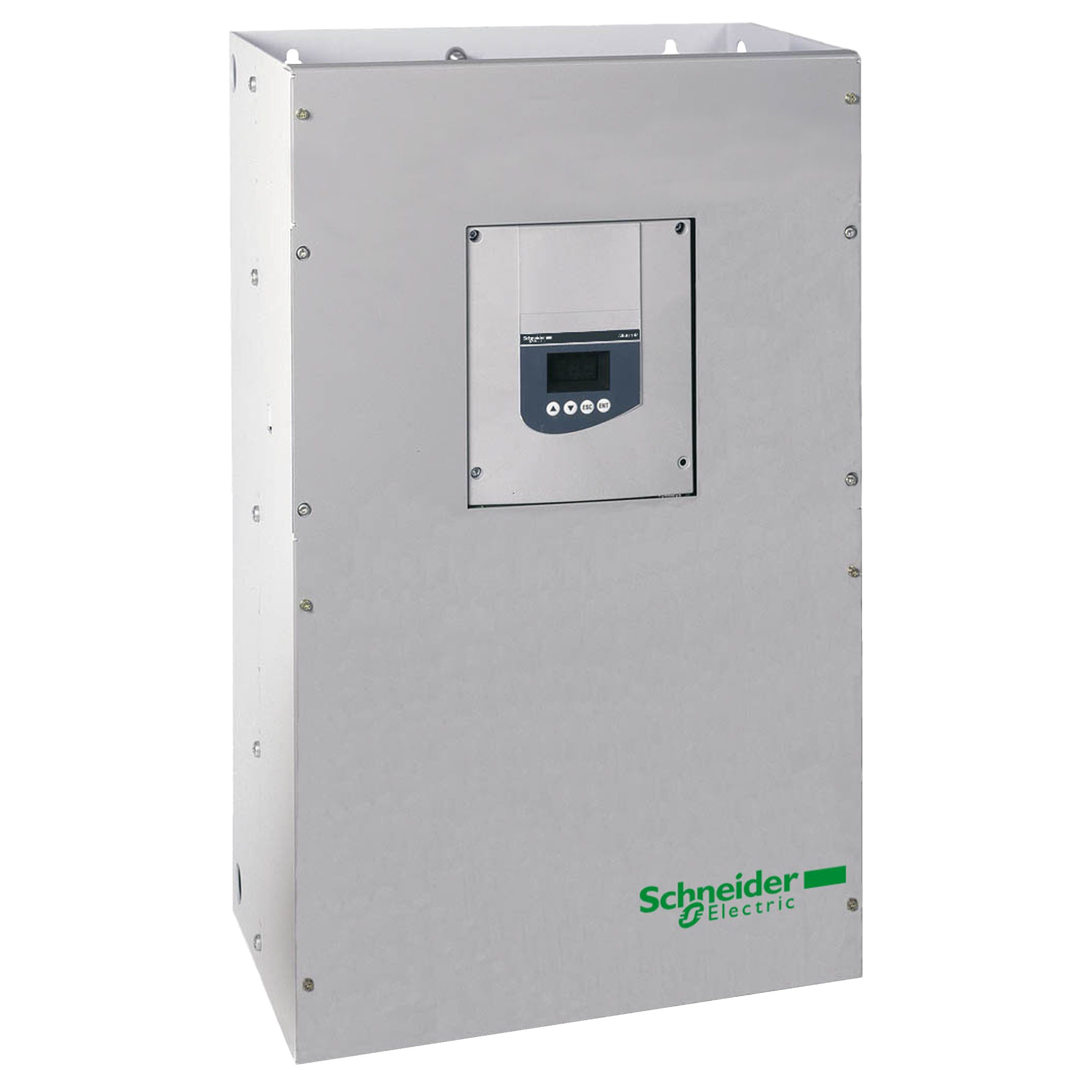

Telemecanique Altistart 48 Square D™ ATS48C59Y Soft Starter With Heat Sink, 110/230 VAC V Coil, IP00 Enclosure
Custom_Product_Images_Illustration
Telemecanique Altistart 48 Square D™ ATS48C59Y Soft Starter With Heat Sink, 110/230 VAC V Coil, IP00 Enclosure
SKU1162328
MFGR #ATS48C59Y
Your Cost: $10,500.38/ea
Telemecanique Altistart 48 Square D™ Soft Starter, Series: ATS48, 208 to 690 VAC, 590 A, 50/60 Hz Frequency, 132/560 kW Wattage, 150 hp Motor, 110/230 VAC Coil, 3 ph, Plug-In Connection, IP00 Enclosure, -10 to 40 deg C Operating, 15.75 in W x 11.81 in D x 26.38 in H Dimensions
Telemecanique Altistart 48 Square D™ Soft Starter, Series: ATS48, 208 to 690 VAC, 590 A, 50/60 Hz Frequency, 132/560 kW Wattage, 150 hp Motor, 110/230 VAC Coil, 3 ph, Plug-In Connection, IP00 Enclosure, -10 to 40 deg C Operating, 15.75 in W x 11.81 in D x 26.38 in H Dimensions
Alternate Catalog Number ATS48C59Y Application Asynchronous Motors, Heavy Duty Industry and Pump Applications ARRA Compliant N Buy American Compliant N Catalog Number ATS48C59Y Connection In the motor supply line Connection Type In the motor supply line Country of Origin FR Currency USD EU RoHS Indicator Y Gross Volume Per Pack 14978.40 Gross Volume per Pack Metric 245451.04 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 122.1000 lb Gross Weight per Pack Metric 55.50 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 15.40 in Height [Metric] 39.5000 cm Item Group 22579 Length 30.62 in Length [Metric] 78.5000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=715072&lang=en-us Power Supply 208...690 V - 15...10 ,50...60 HZ - 5...5 Returnable N Size 11.81 in Standard EN/IEC 60947-4-2 Sub Brand ATS48 Substitute Product Catalog Number VW3G48101 UNSPSC 39121521 UPC 11 78590198250 UPC 12 785901982500 Voltage Rating 177-759 V,50...60 HZ - 5...5 Warranty Description Contractual Warranty:18 months Width 23.01 in Width [Metric] 59.0000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Type Soft starter;ATS48;1 RJ45 Asynchronous Motors, Heavy Duty Industry and Pump Applications EXTERNAL BYPASS (OPTIONAL) The Altistart® 48 soft start/soft stop unit is a cost-effective solution Reduce machine operating costs by reducing mechanical stress and improving machine availability The Altistart® 48 soft start/soft stop unit 1 is supplied ready for use in a standard application with Class 10 motor protection Exclusive Altistart® torque control Constant control of the torque supplied to the motor during acceleration and deceleration periods Ease of adjusting the ramp and the starting torque Wide frequency tolerance for generator set power supplies Built-in motor thermal protection External bypass (optional)
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATS48C59Y |
| Application | Asynchronous Motors, Heavy Duty Industry and Pump Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | ATS48C59Y |
| Connection | In the motor supply line |
| Connection Type | In the motor supply line |
| Country of Origin | FR |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 14978.40 |
| Gross Volume per Pack Metric | 245451.04 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 122.1000 lb |
| Gross Weight per Pack Metric | 55.50 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 15.40 in |
| Height [Metric] | 39.5000 cm |
| Item Group | 22579 |
| Length | 30.62 in |
| Length [Metric] | 78.5000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=715072&lang=en-us |
| Power Supply | 208...690 V - 15...10 ,50...60 HZ - 5...5 |
| Returnable | N |
| Size | 11.81 in |
| Standard | EN/IEC 60947-4-2 |
| Sub Brand | ATS48 |
| Substitute Product Catalog Number | VW3G48101 |
| UNSPSC | 39121521 |
| UPC 11 | 78590198250 |
| UPC 12 | 785901982500 |
| Voltage Rating | 177-759 V,50...60 HZ - 5...5 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 23.01 in |
| Width [Metric] | 59.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Type | Soft starter;ATS48;1 RJ45 |
| Asynchronous Motors, Heavy Duty Industry and Pump Applications |
| EXTERNAL BYPASS (OPTIONAL) |
| The Altistart® 48 soft start/soft stop unit is a cost-effective solution |
| Reduce machine operating costs by reducing mechanical stress and improving machine availability |
| The Altistart® 48 soft start/soft stop unit 1 is supplied ready for use in a standard application with Class 10 motor protection |
| Exclusive Altistart® torque control |
| Constant control of the torque supplied to the motor during acceleration and deceleration periods |
| Ease of adjusting the ramp and the starting torque |
| Wide frequency tolerance for generator set power supplies |
| Built-in motor thermal protection |
| External bypass (optional) |
