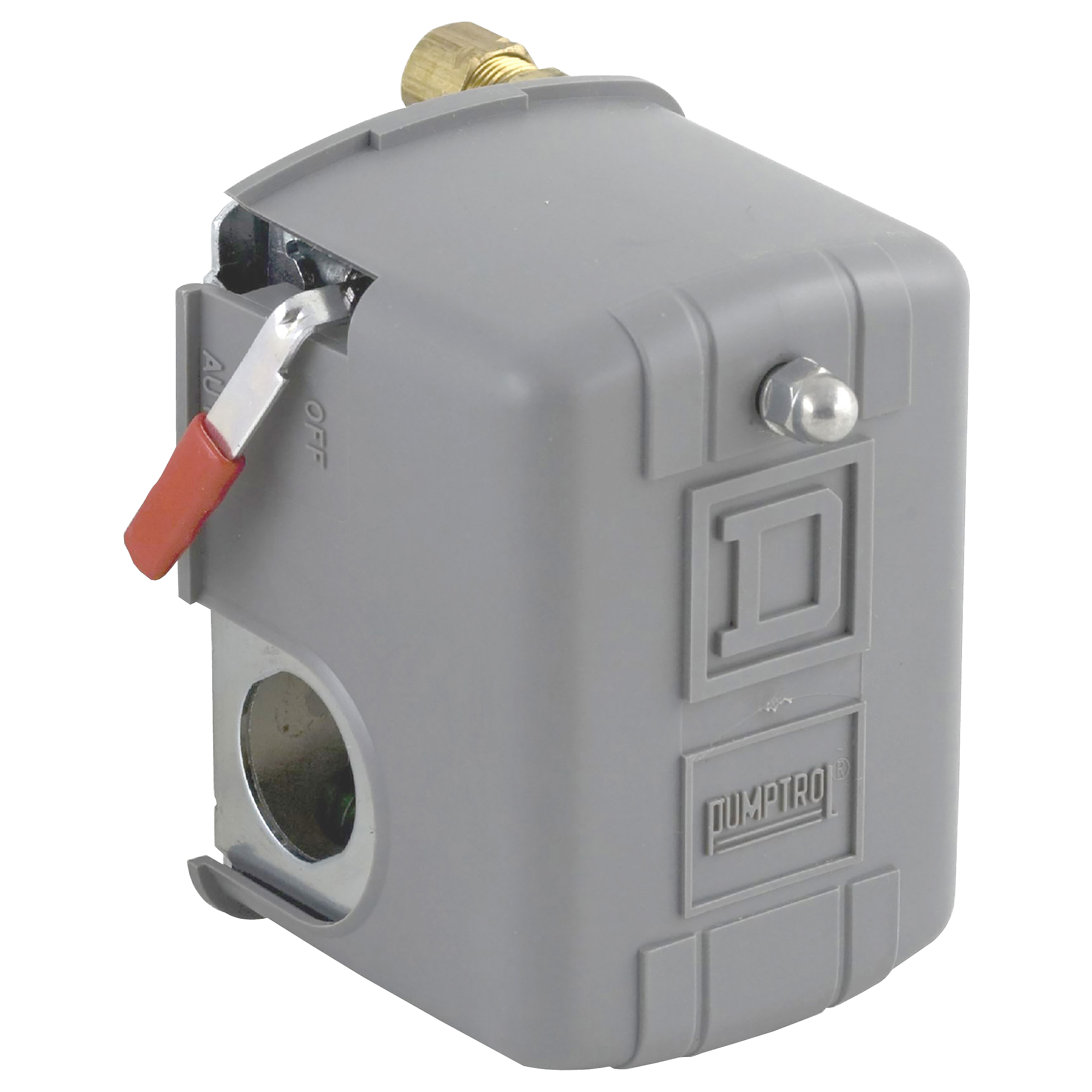

Telemecanique 9013FHG32J52M1 Pumptrol™ Electro-Mechanical Pressure Switch, 70 to 150 psi Pressure, 30 psi Differential, DPST Contact, Screw Clamp Connection, 1 hp at 575 VAC Contact
Pressure Control Switches
1322235
MFG #: 9013FHG32J52M1
Telemecanique Sensors
80.15000
/ ea
Telemecanique Pumptrol™ Pressure Switch, Electro-Mechanical, Series: 9013FH, 70 to 150 psi Pressure, 30 psi Differential, 220 psi Maximum, DPST Contact Configuration, 1 hp at 575 VAC Contact, 10 cpm Operating Cycles, -33 to 257 deg F, Screw Clamp Connection, Zinc Plated Steel Connection, Nitrile Diaphragm, Polypropylene Housing Material, IP20/NEMA 1 Enclosure, 3.71 in H x 3.1 in W x 3.76 in D Dimensions
- Brochure URL - 12dfd2a4ef8e22cc82e8869280f8fa82a07f594b.pdf(Brochure URL)
- Install Instructions 1 URL - 11003_K251XBESOWT6D4PF.pdf(Install Instructions 1 URL)
- Service Manual URL - 11003_CN8RVX013QY6IDJE.pdf(Service Manual URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Install Instructions 1 URL - files?p_File_Name=65013-005-50G.pdf(Install Instructions 1 URL)
- Service Manual URL - 11003_CPJTB8F0X1VINW4H.pdf(Service Manual URL)
- Spec Sheet URL - 11003_UJN8TQF62SPOA9DZ.pdf(Spec Sheet URL)
- Service Manual URL - files?p_enDocType=End of life manual&p_File_Name=ENVEOLI111210EN_V0.pdf(Service Manual URL)
- Spec Sheet URL(Spec Sheet URL)
- Applications
- Features
| For controlling small electrically driven air compressors, indoor and general purpose applications |
| MAINTAINED MANUAL CUT-OUT LEVER (AUTO-OFF) |
| -22 to 257 deg F air controlled fluid |
| Regulation between 2 threshold pressure switch operation |
| Fixed differential scale |
| 1/4 in NPSF internal fluid connection |
| +/-3% repeat accuracy |
| 2 NC, snap action, DPST-DB, form YY contacts type and composition |
| (2) 0.88 in cable entries with 0.84 in across flats |
| 10 AWG clamping capacity |
| 1/4 in NPSF internal conforming to UL 508 fluid connection |
| 100000 cycles at 10 cycles/min electrical durability |
| 100000 cycles at 10 cycles/min electrical durability |
| 300000 cycles mechanical durability |
| 4-terminal block |
| 575 VAC insulation voltage |
| Without local display |
| A600 NEMA contact rating designation |
| Maintained manual cut-out lever (auto-off) |
| General purpose (indoor) environmental conditions |
| 220 psig system pressure |
