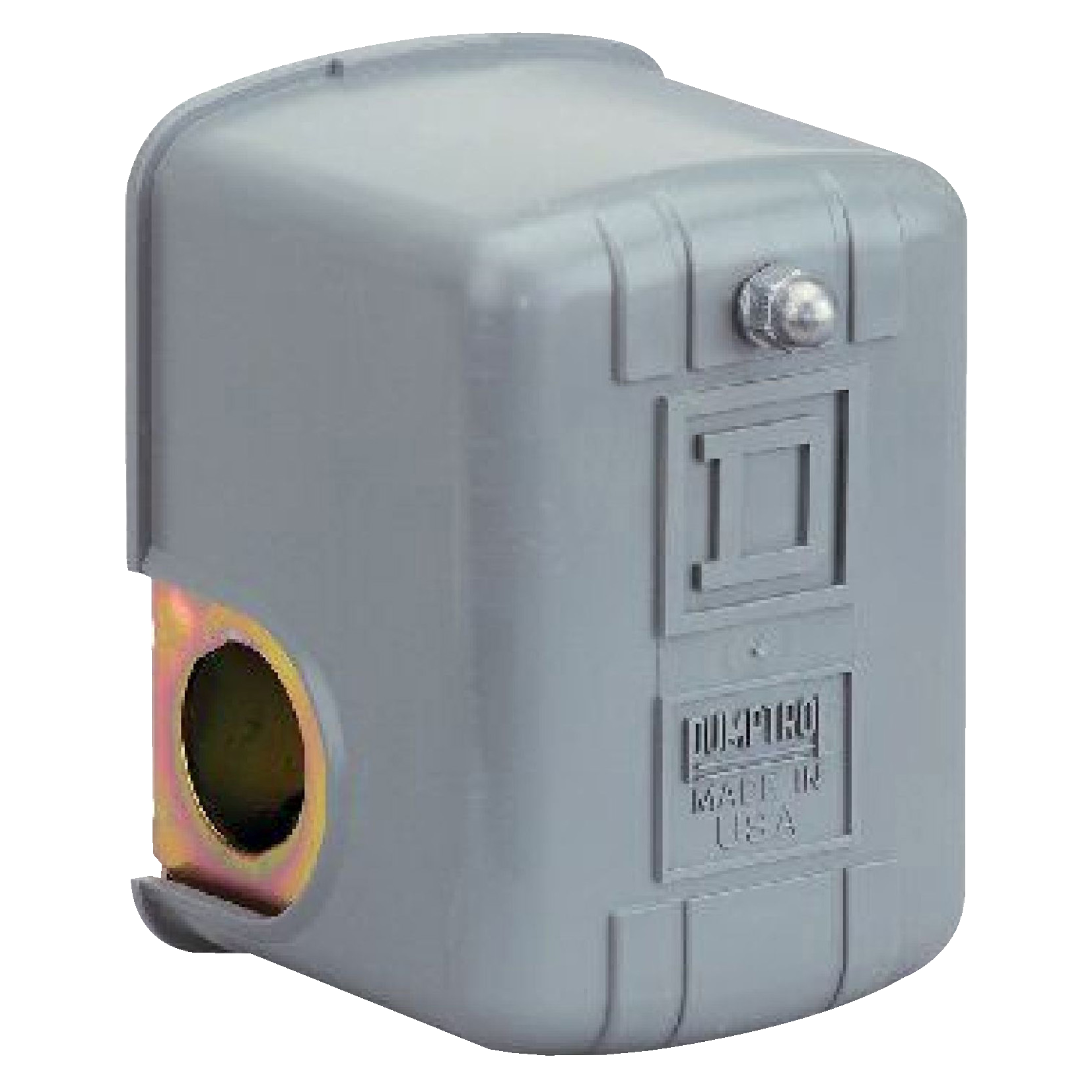

Telemecanique 9013FHG2J27 Pumptrol™ Electro-Mechanical Pressure Switch, 40 to 100 psi, 20 psi, 2NC DPST/DB, Screw Clamp
Pressure Control Switches
33669
MFG #: 9013FHG2J27
Telemecanique Sensors
28.51000
/ ea
Telemecanique 9013FHG2J27 PRESSURE SWITCH 575VAC 1HP F +OPTIONS,-,0.25 inch NPSF internal conforming to UL 508,100 psi,20 psi,40...100 psi,off at 100 psi,220 PSIG,A600,DPST,General Purpose (Indoor),NEMA 1,Pressure Switch,Pumptrol,Screw Clamp,UL listed, CSA,air (-22...257 deg.F),control small electrically driven air compressors
- Brochure URL - 11003_U15DY9OPJN7FG43B.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_b10280cf867b73e94e1871c4f71f7a065c58d3555af5a3fb8c8a52715abc2a2f.pdf(Catalog URL)
- Compliance Cert URL - Square_D_9013FHG2J27_Compliance_Certificate.pdf(Compliance Cert URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=9013FSG_3DCAD.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_K251XBESOWT6D4PF.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_CPJTB8F0X1VINW4H.pdf(Service Manual URL)
- Spec Sheet URL - 11003_5QTMU908DJEP3WZN.pdf(Spec Sheet URL)
- Video - https://youtube.com/embed/FZOJsWILWiA(Video)
- Applications
- Features
| Control small electrically driven air compressors;Power circuit;Regulation between 2 thresholds |
| - |
| Class 9013 Type FHG pressure switches are designed for the control of small electrically driven air compressors |
| Contacts open on pressure rise |
| Diaphragm actuated |
| 2 NC, snap action, DPST-DB, form YY contact |
| -22 to 257 deg F air controlled fluid |
| 1/4 in NPSF internal fluid connection |
| Regulation between 2 thresholds, fixed differential scale |
| 4-terminal block |
| 10 AWG clamping capacity electrical connection |
| Nitrile (Buna-N) diaphragm |
| 300000 cycles mechanical durability, 100000 cycles at 10 cycles/min electrical durability |
| Zinc plated steel or equivalent flange |
| 2.2 kW at 230 VAC 3-phase, 1.5 kW at 230 VAC 1-phase, 1.1 kW at 115 VAC 1-phase, 1.5 kW at 115 VAC 3-phase, 0.75 kW at 460 VAC 3-phase, 0.75 kW at 575 VAC 3-phase power rating |
| General purpose (indoor) environmental conditions |
| Bracket mounting |
| (2) 0.88 in cable entries with 0.84 in across flats UL 508 |
| A600 NEMA contact rating designation |
| Noryl thermoplastic resin |
| 220 psig system pressure |
