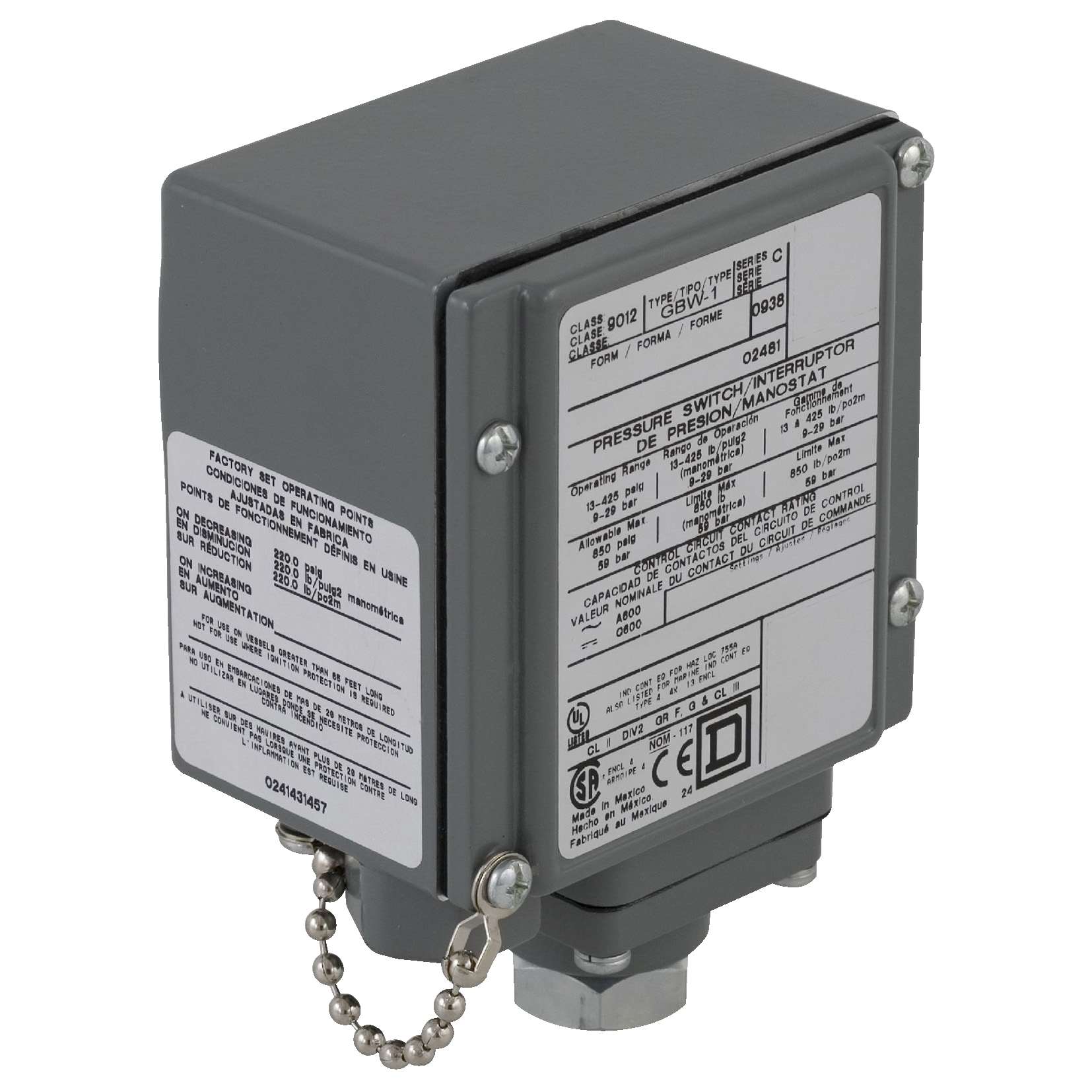

Telemecanique 9012GBW1 Electro-Mechanical Pressure Switch, 13 to 425 psi, 16 to 90 psi, 1NO/1NC SPDT/DB, Screw Clamp
Custom_Product_Images_Illustration
Telemecanique 9012GBW1 Electro-Mechanical Pressure Switch, 13 to 425 psi, 16 to 90 psi, 1NO/1NC SPDT/DB, Screw Clamp
SKU31583
MFGR #9012GBW1
Your Cost: $671.57/ea
Telemecanique 9012GBW1 PRESSURE SWITCH 480VAC 10AMP G +OPTIONS,-10...185 F,0.25 inch 18 NPTF conforming to UL 508,0.5 inch NPT conduit entrance,120 operating cycles per minute (max),13...425 psi,425 psi,Adjustable Differential,NEMA 4/4X/13,Pressure Switch,SPDT (isolated),Single Stage,UL, CSA, IEC, CE-marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),air-non-corrosive liquids-non-corrosive gas-hydraulic oil (-40...250 deg.F)
Telemecanique 9012GBW1 PRESSURE SWITCH 480VAC 10AMP G +OPTIONS,-10...185 F,0.25 inch 18 NPTF conforming to UL 508,0.5 inch NPT conduit entrance,120 operating cycles per minute (max),13...425 psi,425 psi,Adjustable Differential,NEMA 4/4X/13,Pressure Switch,SPDT (isolated),Single Stage,UL, CSA, IEC, CE-marked,Water tight, Dust tight, Oil tight and Corrosion Resistant (Indoor/Outdoor),air-non-corrosive liquids-non-corrosive gas-hydraulic oil (-40...250 deg.F)
Alternate Catalog Number 9012GBW1 Application Regulation between 2 thresholds;Control circuit ARRA Compliant N Buy American Compliant N Catalog Number 9012GBW1 Conduit Connection 0.5 inch NPT conduit entrance Country of Origin MX Currency USD Decreasing Range 13-425 PSI Enclosure Die cast aluminium alloy 380 Environmental Conditions WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) EU RoHS Indicator Y Gross Volume Per Pack 348.14 Gross Volume per Pack Metric 5704.97 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.0000 lb Gross Weight per Pack Metric 1.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 9032200000 Height 13.2080 in Height [Metric] 13.2080 cm Item Group 21522 Length 26.1620 in Length [Metric] 26.1620 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=381259&lang=en-us Operating Temperature -10-185 A°F Process Connection 0.25 INCH 18 NPTF UL 508 Process Fluid HYDRAULIC OIL -40-250 A°F)-NON-CORROSIVE LIQUIDS-AIR-NON-CORROSIVE GAS Returnable Y Standard UL 508-CE-CSA C22.2 NO 14,UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03-CE Sub Brand 9012G Substitute Product Catalog Number 9049UE1 System Pressure 425 PSI,850 PSI Type 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH UNSPSC 39122210 UPC 11 78590102481 UPC 12 785901024811 Warranty Description Contractual Warranty:18 months Width 16.5100 in Width [Metric] 16.5100 cm Stock Status NONSTOCK Brand Telemecanique Sensors Manufacturer Telemecanique Sensors Contact Configuration NC-NO, SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS Regulation between 2 thresholds;Control circuit SCREW-CLAMP TERMINALS, AWG 22...AWG 12
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | 9012GBW1 |
| Application | Regulation between 2 thresholds;Control circuit |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 9012GBW1 |
| Conduit Connection | 0.5 inch NPT conduit entrance |
| Country of Origin | MX |
| Currency | USD |
| Decreasing Range | 13-425 PSI |
| Enclosure | Die cast aluminium alloy 380 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 348.14 |
| Gross Volume per Pack Metric | 5704.97 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.0000 lb |
| Gross Weight per Pack Metric | 1.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 9032200000 |
| Height | 13.2080 in |
| Height [Metric] | 13.2080 cm |
| Item Group | 21522 |
| Length | 26.1620 in |
| Length [Metric] | 26.1620 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=381259&lang=en-us |
| Operating Temperature | -10-185 A°F |
| Process Connection | 0.25 INCH 18 NPTF UL 508 |
| Process Fluid | HYDRAULIC OIL -40-250 A°F)-NON-CORROSIVE LIQUIDS-AIR-NON-CORROSIVE GAS |
| Returnable | Y |
| Standard | UL 508-CE-CSA C22.2 NO 14,UL LISTED FILE E12158 CCN NKPZ AND CCN NTHT-CSA LR25490 CLASS 3211 03-CE |
| Sub Brand | 9012G |
| Substitute Product Catalog Number | 9049UE1 |
| System Pressure | 425 PSI,850 PSI |
| Type | 3 A 240 V AC A600 NEMA RATING DESIGNATION-6 A 120 V AC A600 NEMA RATING DESIGNATION-0.27 A 250 V DC R300 NEMA RATING DESIGNATION-0.22 A 125 V DC R300 NEMA RATING DESIGNATION,ADJUSTABLE DIFFERENTIAL,ELECTROMECHANICAL PRESSURE SWITCH |
| UNSPSC | 39122210 |
| UPC 11 | 78590102481 |
| UPC 12 | 785901024811 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 16.5100 in |
| Width [Metric] | 16.5100 cm |
| Stock Status | NONSTOCK |
| Brand | Telemecanique Sensors |
| Manufacturer | Telemecanique Sensors |
| Contact Configuration | NC-NO, SPDT-DB, FORM Z, SNAP ACTION, SILVER NICKEL CONTACTS |
| Regulation between 2 thresholds;Control circuit |
| SCREW-CLAMP TERMINALS, AWG 22...AWG 12 |
