TPI

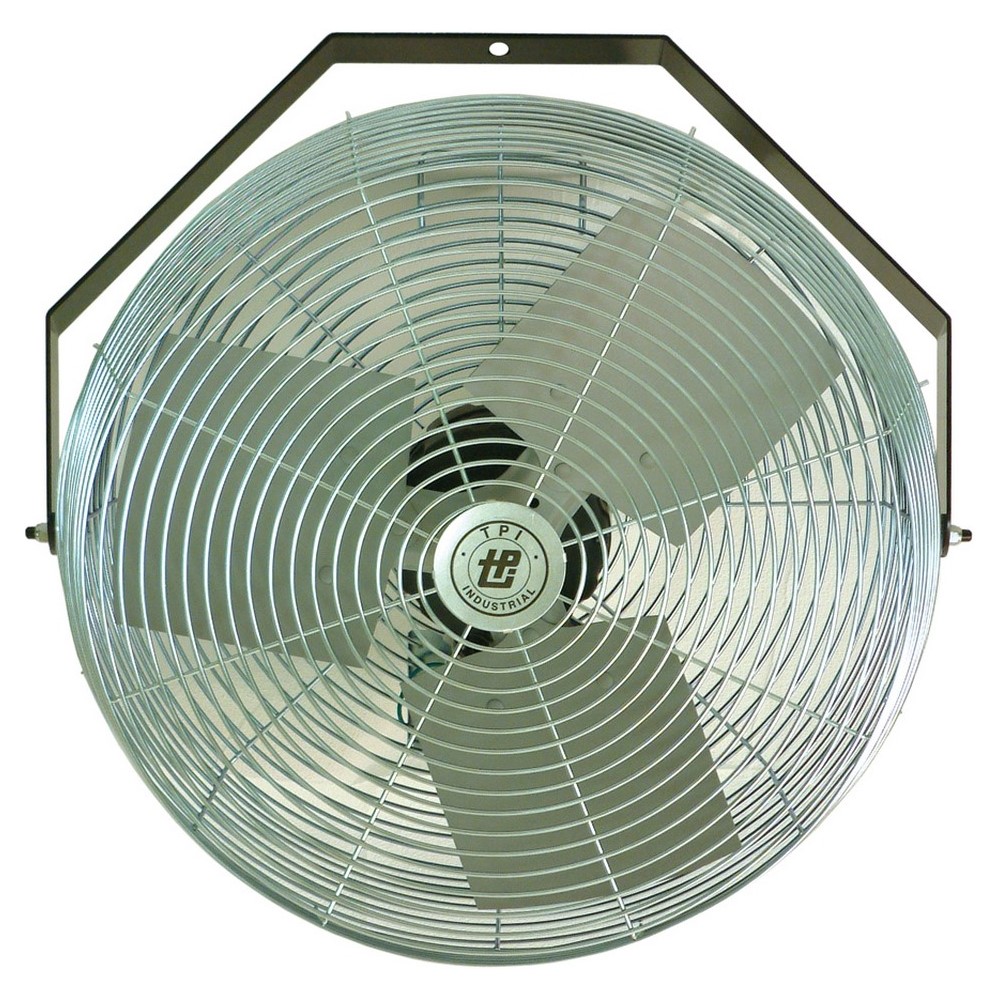

TPI U-18-TE Standard Workstation Fan, 18 in Blade, 1800 cfm High, 1500 cfm Medium, 1300 cfm Low, 120 VAC, 2.2 A
Custom_Product_Images_Illustration
TPI
TPI U-18-TE Standard Workstation Fan, 18 in Blade, 1800 cfm High, 1500 cfm Medium, 1300 cfm Low, 120 VAC, 2.2 A
SKU917676
MFGR #U18TE
Your Cost: $182.73/ea
List: TPI Workstation Fan, Standard, 18 in Blade, 1800 cfm High, 1500 cfm Medium, 1300 cfm Low, 1370 rpm Low/1550 rpm Medium/1800 rpm High, 1/8 hp, 120 VAC, 2.2 A, 3 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing, Ceiling Mount, 10 ft SJT Cord, 21-1/2 in H x 20-1/2 in W x 10-1/2 in D, Import
TPI Workstation Fan, Standard, 18 in Blade, 1800 cfm High, 1500 cfm Medium, 1300 cfm Low, 1370 rpm Low/1550 rpm Medium/1800 rpm High, 1/8 hp, 120 VAC, 2.2 A, 3 Speed, Pull Chain Control, Paddle Blade, Aluminum Blade, AC Motor, Steel Housing, Ceiling Mount, 10 ft SJT Cord, 21-1/2 in H x 20-1/2 in W x 10-1/2 in D, Import
Air Flow 3200/4200/4600 Amperage Rating 2.2 A Application Indoor-Industrial/Institutional ARRA Compliant N Blade Material Aluminum Buy American Compliant N Catalog Number U18TE Connection Back and Side Wired Screw Terminals Country of Origin CN Currency USD EU RoHS Indicator N Fan Speed 1370/1550/1660 RPM Flow Rate 3200/4200/4600 CFM Gross Weight Per Pack 21.0000 lb Gross Weight per Pack Metric 9.53 Gross Weight UOM Metric kg Height 23.00 in Height [Metric] 58.4200 cm Housing Material Steel (Guard) Length 23.00 in Length [Metric] 58.4200 cm Motor Type AC Motor Mounting Wall;Ceiling;Work Bench;Machine Phase 1 Shaft Diameter 5/16 in Size 18 in Standard cETLus Listed;OSHA Standards cETLus Listed, OSHA Approved UNSPSC 40101604 UPC 11 68633479728 UPC 12 686334797283 Voltage Rating 120 V Width 9.00 in Width [Metric] 22.8600 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Industrial/Institutional Features: Pull Chain Switch;Head Rotates 360 DEG Vertically and Horizontally;SJT Type 3 Conductor, 10 FT Cord;Steel Hub/Spider Aluminum Paddle Blades;Totally Enclosed Permanently Lubricated Motor;Sleeve Bearing;42 Frame Size;120 V; Horsepower: 1/8 HP; Dimensions: 20-1/2 Width X 20-1/2 Height X 10-1/2 Depth IN Head rotates 360 deg vertically and horizontally Coated steel guards SJT type 3 conductor, 10 ft L cord Steel hub/spider aluminum paddle blades 1-Phase, sleeve bearing, totally enclosed and permanently lubricated motor 5/16 in shaft NO 42 frame 2900 cfm/125 sq-ft area velocity profile Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface Flow rate is measured 2 ft from face of fan
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Air Flow | 3200/4200/4600 |
| Amperage Rating | 2.2 A |
| Application | Indoor-Industrial/Institutional |
| ARRA Compliant | N |
| Blade Material | Aluminum |
| Buy American Compliant | N |
| Catalog Number | U18TE |
| Connection | Back and Side Wired Screw Terminals |
| Country of Origin | CN |
| Currency | USD |
| EU RoHS Indicator | N |
| Fan Speed | 1370/1550/1660 RPM |
| Flow Rate | 3200/4200/4600 CFM |
| Gross Weight Per Pack | 21.0000 lb |
| Gross Weight per Pack Metric | 9.53 |
| Gross Weight UOM Metric | kg |
| Height | 23.00 in |
| Height [Metric] | 58.4200 cm |
| Housing Material | Steel (Guard) |
| Length | 23.00 in |
| Length [Metric] | 58.4200 cm |
| Motor Type | AC Motor |
| Mounting | Wall;Ceiling;Work Bench;Machine |
| Phase | 1 |
| Shaft Diameter | 5/16 in |
| Size | 18 in |
| Standard | cETLus Listed;OSHA |
| Standards | cETLus Listed, OSHA Approved |
| UNSPSC | 40101604 |
| UPC 11 | 68633479728 |
| UPC 12 | 686334797283 |
| Voltage Rating | 120 V |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Industrial/Institutional |
| Features: Pull Chain Switch;Head Rotates 360 DEG Vertically and Horizontally;SJT Type 3 Conductor, 10 FT Cord;Steel Hub/Spider Aluminum Paddle Blades;Totally Enclosed Permanently Lubricated Motor;Sleeve Bearing;42 Frame Size;120 V; Horsepower: 1/8 HP; Dimensions: 20-1/2 Width X 20-1/2 Height X 10-1/2 Depth IN |
| Head rotates 360 deg vertically and horizontally |
| Coated steel guards |
| SJT type 3 conductor, 10 ft L cord |
| Steel hub/spider aluminum paddle blades |
| 1-Phase, sleeve bearing, totally enclosed and permanently lubricated motor |
| 5/16 in shaft |
| NO 42 frame |
| 2900 cfm/125 sq-ft area velocity profile |
| Mount with one bolt or lag screw to walls, ceilings, work benches, machines or any surface |
| Flow rate is measured 2 ft from face of fan |
