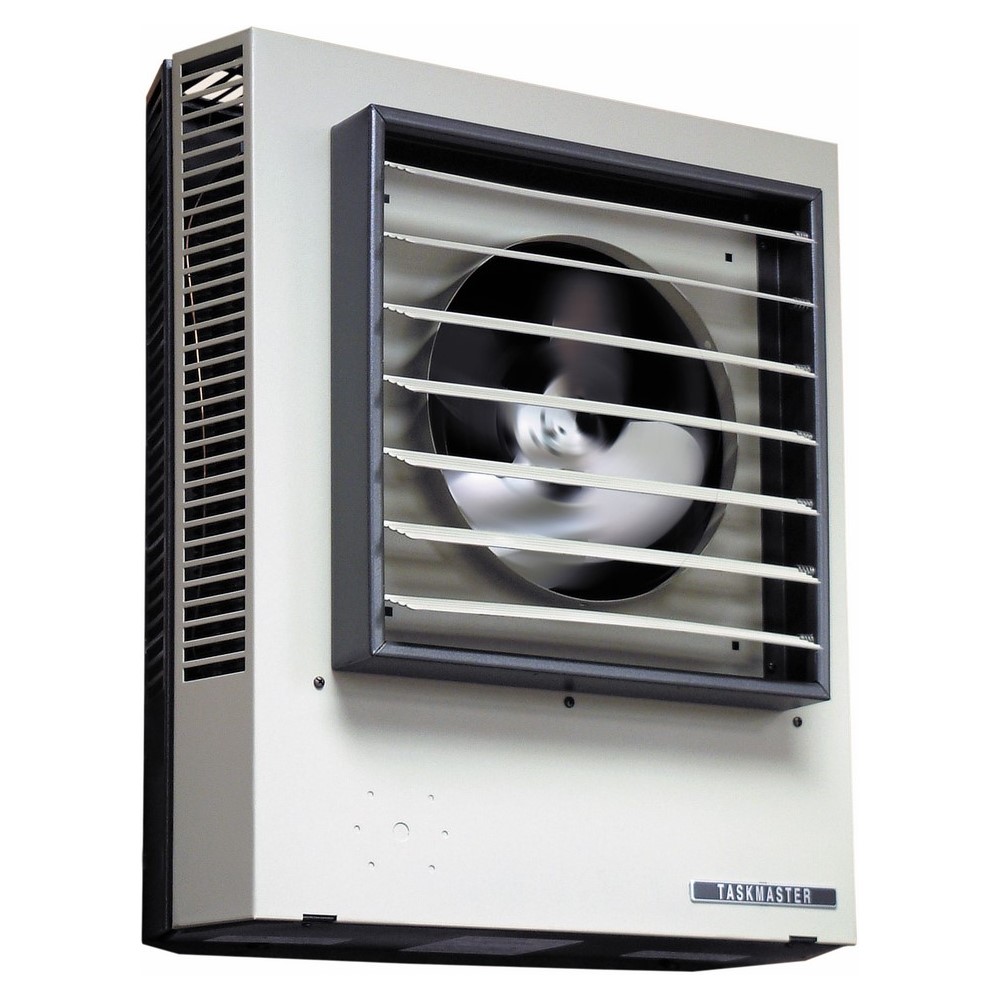

TPI P3P5140CA1N Taskmaster 5100 3-Phase Standard Fan Forced Unit Heater, 133.1 Btu/hr, 480 VAC, 47 A, 39 kW
Custom_Product_Images_Illustration
TPI P3P5140CA1N Taskmaster 5100 3-Phase Standard Fan Forced Unit Heater, 133.1 Btu/hr, 480 VAC, 47 A, 39 kW
SKU917121
MFGR #P3P5140CA1N
Your Cost: $6,282.91/ea
List: TPI Fan Forced Unit Heater, 3-Phase Standard, Series: Taskmaster 5100, 133.1 Btu/hr, 480 VAC, 47 A, 39 kW, 3100/2800 cfm, Surface/Wall Mount, 15 ft Horizontal/24 ft Vertical Mounting Height, Steel, Gray, Powder Coated, 34 in H x 29-1/4 in W x 10-1/16 in D
TPI Fan Forced Unit Heater, 3-Phase Standard, Series: Taskmaster 5100, 133.1 Btu/hr, 480 VAC, 47 A, 39 kW, 3100/2800 cfm, Surface/Wall Mount, 15 ft Horizontal/24 ft Vertical Mounting Height, Steel, Gray, Powder Coated, 34 in H x 29-1/4 in W x 10-1/16 in D
Amperage Rating 47 A Application Indoor-Commercial/Industrial ARRA Compliant Y Buy American Compliant Y Capacity 133.1 BTU/h Catalog Number P3P5140CA1N Color Gray Country of Origin US Currency USD Dimensions 29-1/4 in W x 10-1/16 in D x 34 in H EU RoHS Indicator N Finish Powder Coated Flow Rate 3100/2800 cfm Gross Weight Per Pack 120.0000 lb Gross Weight per Pack Metric 54.43 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8516.29 Height 20.00 in Height [Metric] 50.8000 cm Housing Material Steel Length 35.00 in Length [Metric] 88.9000 cm Material Steel Model P3P5140CA1N Mounting Wall Mounting Height 15 ft Horizontal/24 ft Vertical Mounting Type Wall Phase 3 Power Rating 39 kW Returnable Y Series 5100 Standard cETLus Listed;ABS Approved Standards ABS Approved, cETLus Listed Temperature Rating 40/45 °F Type 3-Phase Fan Forced Standard UNSPSC 40101809 UPC 11 68633464408 UPC 12 686334644082 Voltage Rating 480 VAC Wattage 39 kW Width 30.00 in Width [Metric] 76.2000 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Commercial/Industrial Features: Overheat Protection;Automatic Reset Type Limit Control;Summer Fan Switch;Power Disconnect Switch;Heat Stratification Thermostat;Manufactured in U.S.A.; Btu Rating: 133.1 (Per Hour); Amperage Rating: 47 AMP; Finish: Powder Coated; Air Flow: 3100/2800 CFM; Series: 5100; Control Voltage: 24 V Heavy 18 ga welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation maintenance Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur Totally enclosed, 2-Speed, 1-Phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 to 50 kW models All motors mounted with rubber insulators to minimize vibration and noise Fan over-ride purges unit of residual heat at shutdown Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40 to 110 deg F Units with model numbers ending in CA1 are factory wired for low voltage controls 25 to 50 kW units are designed for two stage heating operation Unit heaters can be mounted for horizontal or vertical discharge 55 ft air throw 40 to 45 deg F temperature rise
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 47 A |
| Application | Indoor-Commercial/Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Capacity | 133.1 BTU/h |
| Catalog Number | P3P5140CA1N |
| Color | Gray |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 29-1/4 in W x 10-1/16 in D x 34 in H |
| EU RoHS Indicator | N |
| Finish | Powder Coated |
| Flow Rate | 3100/2800 cfm |
| Gross Weight Per Pack | 120.0000 lb |
| Gross Weight per Pack Metric | 54.43 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8516.29 |
| Height | 20.00 in |
| Height [Metric] | 50.8000 cm |
| Housing Material | Steel |
| Length | 35.00 in |
| Length [Metric] | 88.9000 cm |
| Material | Steel |
| Model | P3P5140CA1N |
| Mounting | Wall |
| Mounting Height | 15 ft Horizontal/24 ft Vertical |
| Mounting Type | Wall |
| Phase | 3 |
| Power Rating | 39 kW |
| Returnable | Y |
| Series | 5100 |
| Standard | cETLus Listed;ABS Approved |
| Standards | ABS Approved, cETLus Listed |
| Temperature Rating | 40/45 °F |
| Type | 3-Phase Fan Forced Standard |
| UNSPSC | 40101809 |
| UPC 11 | 68633464408 |
| UPC 12 | 686334644082 |
| Voltage Rating | 480 VAC |
| Wattage | 39 kW |
| Width | 30.00 in |
| Width [Metric] | 76.2000 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Commercial/Industrial |
| Features: Overheat Protection;Automatic Reset Type Limit Control;Summer Fan Switch;Power Disconnect Switch;Heat Stratification Thermostat;Manufactured in U.S.A.; Btu Rating: 133.1 (Per Hour); Amperage Rating: 47 AMP; Finish: Powder Coated; Air Flow: 3100/2800 CFM; Series: 5100; Control Voltage: 24 V |
| Heavy 18 ga welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation maintenance |
| Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow |
| All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur |
| Totally enclosed, 2-Speed, 1-Phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 to 50 kW models |
| All motors mounted with rubber insulators to minimize vibration and noise |
| Fan over-ride purges unit of residual heat at shutdown |
| Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal |
| Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40 to 110 deg F |
| Units with model numbers ending in CA1 are factory wired for low voltage controls |
| 25 to 50 kW units are designed for two stage heating operation |
| Unit heaters can be mounted for horizontal or vertical discharge |
| 55 ft air throw |
| 40 to 45 deg F temperature rise |
