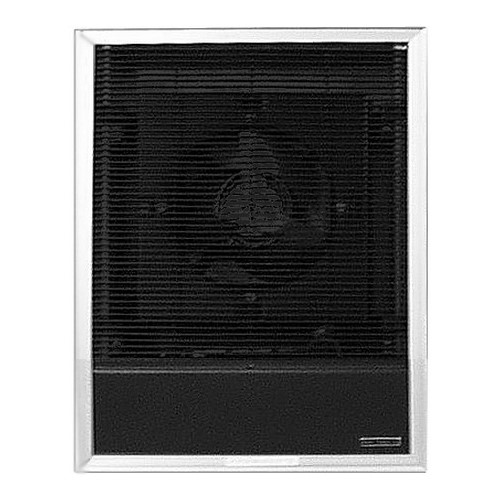

TPI J3424T 3420 3-Phase Heavy Duty Fan Forced Wall Heater, 13652 Btu, 208 VAC, 11.1 A, 4000 W
Custom_Product_Images_Illustration
TPI J3424T 3420 3-Phase Heavy Duty Fan Forced Wall Heater, 13652 Btu, 208 VAC, 11.1 A, 4000 W
SKU961052
MFGR #J3424T
$/ea
TPI Fan Forced Wall Heater, 3-Phase Heavy Duty, Series: 3420, 13652 Btu, 208 VAC, 11.1 A, 4000 W, 245 cfm, 1400 rpm, 110 deg F, Wall Mount, Steel, Powder Coated, 19-3/8 in H x 14-1/4 in W x 4-1/4 in D
TPI Fan Forced Wall Heater, 3-Phase Heavy Duty, Series: 3420, 13652 Btu, 208 VAC, 11.1 A, 4000 W, 245 cfm, 1400 rpm, 110 deg F, Wall Mount, Steel, Powder Coated, 19-3/8 in H x 14-1/4 in W x 4-1/4 in D
Amperage Rating 11.1 A Application Indoor-Commercial/Industrial ARRA Compliant Y Buy American Compliant Y Catalog Number J3424T Country of Origin US Currency USD Dimensions 14-1/4 in W x 4-1/4 in D x 19-3/8 in H EU RoHS Indicator N Finish Powder Coated Flow Rate 245 cfm Gross Weight Per Pack 41.0000 lb Gross Weight per Pack Metric 18.60 Gross Weight UOM Metric kg Height 6.00 in Height [Metric] 15.2400 cm Housing Material Steel Length 22.00 in Length [Metric] 55.8800 cm Material Steel Maximum Operating Temperature 110 (Thermostat) DEG F Model J3424T Mounting Wall Mounting Type Wall Phase 3 Power Rating 4 kW Series 3420 Speed 1400 rpm Standard cETLus Listed Standards ARRA CompliantBuy American Act CompliantcETLus Listed Temperature Rating 110 °F Type 3-Phase Fan Forced Heavy-Duty Standard UNSPSC 40101809 UPC 11 68633469140 UPC 12 686334691406 Voltage Rating 208 VAC Wattage 4 kW Width 18.00 in Width [Metric] 45.7200 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Commercial/Industrial Features: In-Built Double Pole Tamper Proof Thermostat;Manual Reset Thermal Limit;Corrosion Resistant;3 Pole Thermostat for Positive Off Position;Manufactured in U.S.A.; Btu Rating: 13652; Amperage Rating: 11.1 AMP; Air Flow: 245 CFM; Finish: Powder Coated; Series: 3420 Powder coated bar stock steel tamper proof grille, with extruded aluminum frame and 16 ga housing In built double pole tamper proof thermostat with a 60 to 120 deg F temperature range and positive off, 3-Phase heaters have 3 pole thermostat for positive off position with a 60 to 165 deg temperature range Manual reset thermal limit switch Corrosion resistant steel tubular element with brazed steel fins Permanently lubricated, unit bearing, shaded pole motor with impedance protection 1400 rpm motor, 245 cfm propeller type fan blade 21-15/32 in H x 17-7/16 in W grill
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 11.1 A |
| Application | Indoor-Commercial/Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | J3424T |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 14-1/4 in W x 4-1/4 in D x 19-3/8 in H |
| EU RoHS Indicator | N |
| Finish | Powder Coated |
| Flow Rate | 245 cfm |
| Gross Weight Per Pack | 41.0000 lb |
| Gross Weight per Pack Metric | 18.60 |
| Gross Weight UOM Metric | kg |
| Height | 6.00 in |
| Height [Metric] | 15.2400 cm |
| Housing Material | Steel |
| Length | 22.00 in |
| Length [Metric] | 55.8800 cm |
| Material | Steel |
| Maximum Operating Temperature | 110 (Thermostat) DEG F |
| Model | J3424T |
| Mounting | Wall |
| Mounting Type | Wall |
| Phase | 3 |
| Power Rating | 4 kW |
| Series | 3420 |
| Speed | 1400 rpm |
| Standard | cETLus Listed |
| Standards | ARRA CompliantBuy American Act CompliantcETLus Listed |
| Temperature Rating | 110 °F |
| Type | 3-Phase Fan Forced Heavy-Duty Standard |
| UNSPSC | 40101809 |
| UPC 11 | 68633469140 |
| UPC 12 | 686334691406 |
| Voltage Rating | 208 VAC |
| Wattage | 4 kW |
| Width | 18.00 in |
| Width [Metric] | 45.7200 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Commercial/Industrial |
| Features: In-Built Double Pole Tamper Proof Thermostat;Manual Reset Thermal Limit;Corrosion Resistant;3 Pole Thermostat for Positive Off Position;Manufactured in U.S.A.; Btu Rating: 13652; Amperage Rating: 11.1 AMP; Air Flow: 245 CFM; Finish: Powder Coated; Series: 3420 |
| Powder coated bar stock steel tamper proof grille, with extruded aluminum frame and 16 ga housing |
| In built double pole tamper proof thermostat with a 60 to 120 deg F temperature range and positive off, 3-Phase heaters have 3 pole thermostat for positive off position with a 60 to 165 deg temperature range |
| Manual reset thermal limit switch |
| Corrosion resistant steel tubular element with brazed steel fins |
| Permanently lubricated, unit bearing, shaded pole motor with impedance protection |
| 1400 rpm motor, 245 cfm propeller type fan blade |
| 21-15/32 in H x 17-7/16 in W grill |
