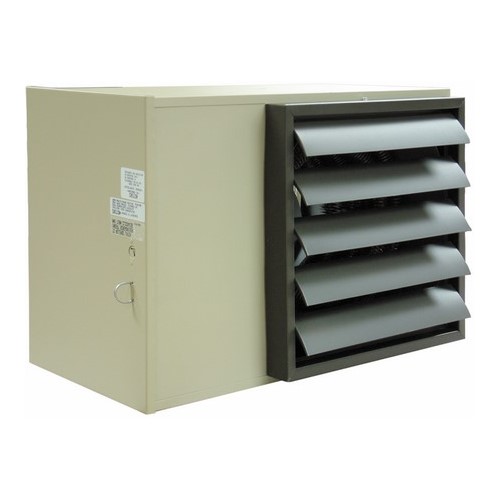

TPI H1HUH10CA1 UH Series Fan-Forced Horizontal Electric Wall Mount Heater, 34100 Btu, 240 VAC, 41.7 A, 10 kW
Custom_Product_Images_Illustration
TPI H1HUH10CA1 UH Series Fan-Forced Horizontal Electric Wall Mount Heater, 34100 Btu, 240 VAC, 41.7 A, 10 kW
SKU734597
MFGR #H1HUH10CA1
Your Cost: $1,631.58/ea
List: For over 65 years TPI Corporation has been known as America's Comfort Conditioning Company. Today - as a U.S. based privately held manufacturer - TPI Corporation continues to produce innovative, industry leading products for the electric heating, fan and ventilation, industrial lighting, commercial controls, and industrial oven markets.
For over 65 years TPI Corporation has been known as America's Comfort Conditioning Company. Today - as a U.S. based privately held manufacturer - TPI Corporation continues to produce innovative, industry leading products for the electric heating, fan and ventilation, industrial lighting, commercial controls, and industrial oven markets.
Amperage Rating 41.7 A Application Indoor-Commercial/Industrial ARRA Compliant Y Buy American Compliant Y Capacity 34100 BTU/h Catalog Number H1HUH10CA1 Country of Origin US Currency USD Dimensions 13 in H x 20 in W x 11 in D EU RoHS Indicator N Finish Powder Coated Flow Rate 575 cfm Gross Weight Per Pack 39.0000 lb Gross Weight per Pack Metric 17.69 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8516.29 Height 22.00 in Height [Metric] 55.8800 cm Housing Material Steel Length 21.00 in Length [Metric] 53.3400 cm Material Steel Model H1HUH10CA1 Mounting Panel Mounting Height 9 ft Mounting Type Panel Phase 1 Power Rating 10 kW Returnable Y Series UH Series Standard ETLus Listed Type 1-Phase Fan Forced Horizontal Standard UNSPSC 40101809 UPC 11 68633468084 UPC 12 686334680844 Voltage Rating 240 VAC Wattage 10k W Width 17.00 in Width [Metric] 43.1800 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Commercial/Industrial Features: Overheat Protection;Automatic Resetting Type Limit;Manufactured in U.S.A.; Btu Rating: 34100; Amperage Rating: 41.7 AMP; Air Flow: 575 CFM; Finish: Powder Coated; Series: UH; Control Voltage: 24 V Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade All units come equipped with automatic resetting type limit controls to de-energize the heater should an over temperature situation occur Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application 24 V control voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 41.7 A |
| Application | Indoor-Commercial/Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Capacity | 34100 BTU/h |
| Catalog Number | H1HUH10CA1 |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 13 in H x 20 in W x 11 in D |
| EU RoHS Indicator | N |
| Finish | Powder Coated |
| Flow Rate | 575 cfm |
| Gross Weight Per Pack | 39.0000 lb |
| Gross Weight per Pack Metric | 17.69 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8516.29 |
| Height | 22.00 in |
| Height [Metric] | 55.8800 cm |
| Housing Material | Steel |
| Length | 21.00 in |
| Length [Metric] | 53.3400 cm |
| Material | Steel |
| Model | H1HUH10CA1 |
| Mounting | Panel |
| Mounting Height | 9 ft |
| Mounting Type | Panel |
| Phase | 1 |
| Power Rating | 10 kW |
| Returnable | Y |
| Series | UH Series |
| Standard | ETLus Listed |
| Type | 1-Phase Fan Forced Horizontal Standard |
| UNSPSC | 40101809 |
| UPC 11 | 68633468084 |
| UPC 12 | 686334680844 |
| Voltage Rating | 240 VAC |
| Wattage | 10k W |
| Width | 17.00 in |
| Width [Metric] | 43.1800 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Commercial/Industrial |
| Features: Overheat Protection;Automatic Resetting Type Limit;Manufactured in U.S.A.; Btu Rating: 34100; Amperage Rating: 41.7 AMP; Air Flow: 575 CFM; Finish: Powder Coated; Series: UH; Control Voltage: 24 V |
| Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance |
| Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade |
| All units come equipped with automatic resetting type limit controls to de-energize the heater should an over temperature situation occur |
| Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise |
| Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard |
| Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow |
| 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application |
| 24 V control voltage |
