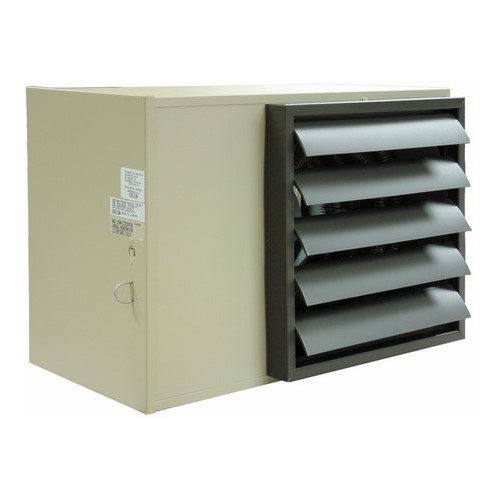

TPI G1GUH03003 UH Series 1-Phase Standard Fan Forced Unit Heater, 11200 Btu, 277 VAC, 11.9 A, 3.3 kW
Custom_Product_Images_Illustration
TPI G1GUH03003 UH Series 1-Phase Standard Fan Forced Unit Heater, 11200 Btu, 277 VAC, 11.9 A, 3.3 kW
SKU913344
MFGR #G1GUH03003
Your Cost: $697.70/ea
List: TPI Fan Forced Unit Heater, 1-Phase Standard, Series: UH Series, 11200 Btu, 277 VAC, 11.9 A, 3.3 kW, 400 cfm, Panel Mount, 9 ft Mounting Height, Steel, Beige, Powder Coated, 13 in H x 20 in W x 11 in D
TPI Fan Forced Unit Heater, 1-Phase Standard, Series: UH Series, 11200 Btu, 277 VAC, 11.9 A, 3.3 kW, 400 cfm, Panel Mount, 9 ft Mounting Height, Steel, Beige, Powder Coated, 13 in H x 20 in W x 11 in D
Amperage Rating 11.9 A Application Indoor-Commercial/Industrial ARRA Compliant Y Buy American Compliant Y Capacity 11200 BTU/h Catalog Number G1GUH03003 Color Beige Country of Origin US Currency USD Dimensions 20 in W x 11 in D x 13 in H EU RoHS Indicator N Finish Powder Coated Flow Rate 400 cfm Gross Weight Per Pack 31.0000 lb Gross Weight per Pack Metric 14.06 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8516.29 Height 22.00 in Height [Metric] 55.8800 cm Housing Material Steel Length 21.00 in Length [Metric] 53.3400 cm Material Steel Model G1GUH03003 Mounting Panel Mounting Height 9 ft Mounting Type Panel Phase 1 Power Rating 3.3 kW Returnable Y Series UH Series Standard ETLus Listed Type 1-Phase Fan Forced Horizontal Standard UNSPSC 40101809 UPC 11 68633464472 UPC 12 686334644723 Voltage Rating 277 VAC Wattage 3.3 kW Width 17.00 in Width [Metric] 43.1800 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Commercial/Industrial Features: Overheat Protection;Automatic Resetting Type Limit;Manufactured in U.S.A.; Btu Rating: 11200; Amperage Rating: 11.9 AMP; Air Flow: 400 CFM; Finish: Powder Coated; Series: UH; Control Voltage: 277 V Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application 277 VAC control voltage
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 11.9 A |
| Application | Indoor-Commercial/Industrial |
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Capacity | 11200 BTU/h |
| Catalog Number | G1GUH03003 |
| Color | Beige |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 20 in W x 11 in D x 13 in H |
| EU RoHS Indicator | N |
| Finish | Powder Coated |
| Flow Rate | 400 cfm |
| Gross Weight Per Pack | 31.0000 lb |
| Gross Weight per Pack Metric | 14.06 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8516.29 |
| Height | 22.00 in |
| Height [Metric] | 55.8800 cm |
| Housing Material | Steel |
| Length | 21.00 in |
| Length [Metric] | 53.3400 cm |
| Material | Steel |
| Model | G1GUH03003 |
| Mounting | Panel |
| Mounting Height | 9 ft |
| Mounting Type | Panel |
| Phase | 1 |
| Power Rating | 3.3 kW |
| Returnable | Y |
| Series | UH Series |
| Standard | ETLus Listed |
| Type | 1-Phase Fan Forced Horizontal Standard |
| UNSPSC | 40101809 |
| UPC 11 | 68633464472 |
| UPC 12 | 686334644723 |
| Voltage Rating | 277 VAC |
| Wattage | 3.3 kW |
| Width | 17.00 in |
| Width [Metric] | 43.1800 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Commercial/Industrial |
| Features: Overheat Protection;Automatic Resetting Type Limit;Manufactured in U.S.A.; Btu Rating: 11200; Amperage Rating: 11.9 AMP; Air Flow: 400 CFM; Finish: Powder Coated; Series: UH; Control Voltage: 277 V |
| Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation and maintenance |
| Circular copper clad steel sheath element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade |
| All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur |
| Totally enclosed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 10 kW models and sleeve bearings on 12.5 to 48 kW models - mounted with rubber insulators to minimize vibration and noise |
| Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard |
| Louvers are individually adjustable for directional control of air flow and the entire assembly can be repositioned in the field from down flow to up flow or left/right directional air flow |
| 20 to 48 kW units and all 480 V have built-in 24 V transformer for low voltage remote thermostat application |
| 277 VAC control voltage |
