TPI

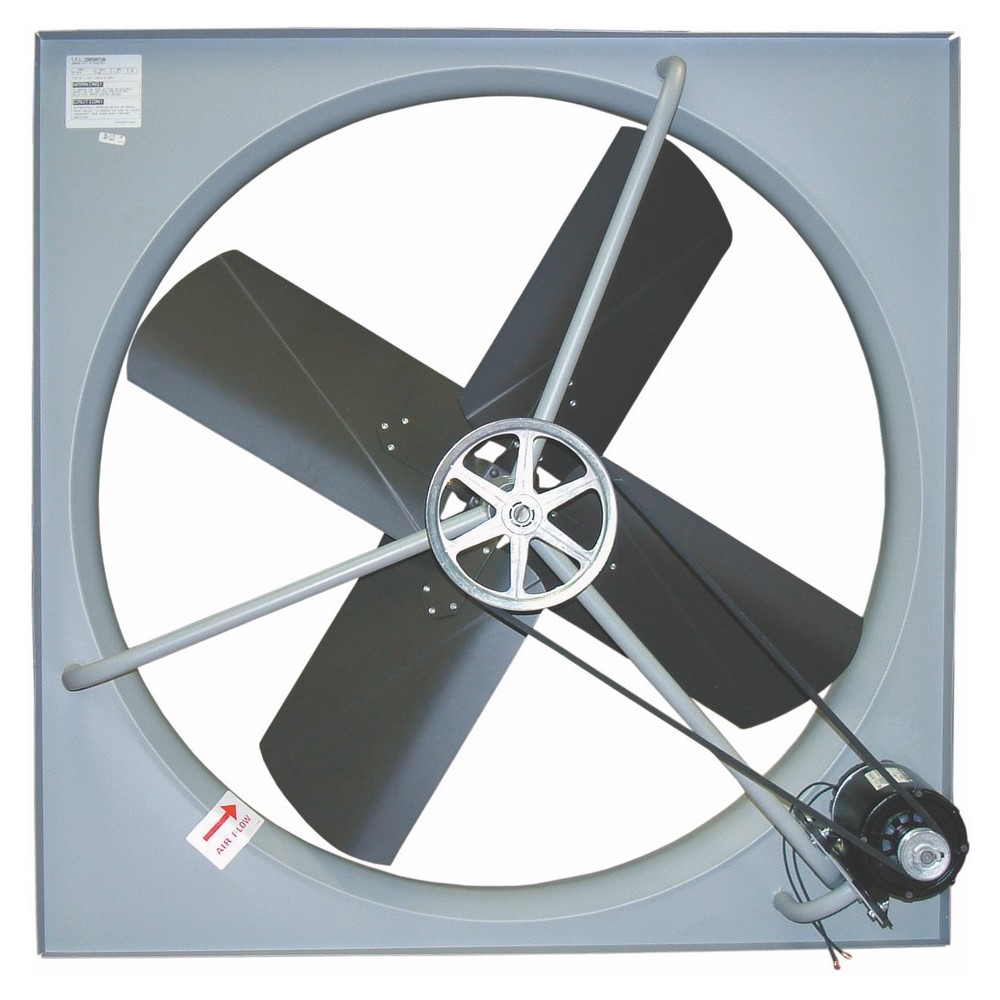

TPI CE-36B CE Series Belt Drive Standard Exhaust Fan, 6900 cfm, 36 in Dia Duct, 1/2 hp, 115 VAC, 8 A, Domestic
Custom_Product_Images_Illustration
TPI
TPI CE-36B CE Series Belt Drive Standard Exhaust Fan, 6900 cfm, 36 in Dia Duct, 1/2 hp, 115 VAC, 8 A, Domestic
SKU976168
MFGR #CE36B
Your Cost: $918.71/ea
List: TPI Exhaust Fan, Belt Drive Standard, Series: CE Series, 6900 cfm, 36 in Duct Dia, 115 VAC, 8 A, 1/2 hp, 41-1/2 in Housing Length, 40 in Housing Width, 17 in Housing Height, Wall Mount, Domestic
TPI Exhaust Fan, Belt Drive Standard, Series: CE Series, 6900 cfm, 36 in Duct Dia, 115 VAC, 8 A, 1/2 hp, 41-1/2 in Housing Length, 40 in Housing Width, 17 in Housing Height, Wall Mount, Domestic
Air Flow 9870 Amperage Rating 8 A Application Indoor-Industrial/Some Commercial-Wall Exhaust ARRA Compliant Y Blade Material Aluminum Buy American Compliant Y Catalog Number CE36B Country of Origin US Currency USD EU RoHS Indicator N Fan Speed 1725 RPM Finish Powder Coat Flow Rate 9870 CFM Gross Weight Per Pack 50.0000 lb Gross Weight per Pack Metric 22.68 Gross Weight UOM Metric kg Height 42.00 in Height [Metric] 106.6800 cm Length 43.00 in Length [Metric] 109.2200 cm Motor Type AC Motor Mounting Wall Phase 1 Shaft Diameter 5/8 in Size 36 in Type Belt Drive UNSPSC 40101604 UPC 11 68633479672 UPC 12 686334796729 Voltage Rating 115 V Width 17.00 in Width [Metric] 43.1800 cm Stock Status NONSTOCK Brand TPI Manufacturer TPI Indoor-Industrial/Some Commercial-Wall Exhaust Features: Ball bearing, Permanently Lubricated, Drip Proof Motor;Permanently Lubricated Bearings on Blade Drive Shaft;Motor Frame Size 56; Horsepower: 1/2 HP; Dimensions: 41.50 Length X 40 Width X 17 Depth IN 1-Phase, ball bearing, permanently lubricated, drip proof motor Permanently lubricated bearings on blade drive shaft Aluminum blade Powder coated venturi 1725 rpm Motor frame size 56 5/8 in Dia shaft AC motor
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Air Flow | 9870 |
| Amperage Rating | 8 A |
| Application | Indoor-Industrial/Some Commercial-Wall Exhaust |
| ARRA Compliant | Y |
| Blade Material | Aluminum |
| Buy American Compliant | Y |
| Catalog Number | CE36B |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | N |
| Fan Speed | 1725 RPM |
| Finish | Powder Coat |
| Flow Rate | 9870 CFM |
| Gross Weight Per Pack | 50.0000 lb |
| Gross Weight per Pack Metric | 22.68 |
| Gross Weight UOM Metric | kg |
| Height | 42.00 in |
| Height [Metric] | 106.6800 cm |
| Length | 43.00 in |
| Length [Metric] | 109.2200 cm |
| Motor Type | AC Motor |
| Mounting | Wall |
| Phase | 1 |
| Shaft Diameter | 5/8 in |
| Size | 36 in |
| Type | Belt Drive |
| UNSPSC | 40101604 |
| UPC 11 | 68633479672 |
| UPC 12 | 686334796729 |
| Voltage Rating | 115 V |
| Width | 17.00 in |
| Width [Metric] | 43.1800 cm |
| Stock Status | NONSTOCK |
| Brand | TPI |
| Manufacturer | TPI |
| Indoor-Industrial/Some Commercial-Wall Exhaust |
| Features: Ball bearing, Permanently Lubricated, Drip Proof Motor;Permanently Lubricated Bearings on Blade Drive Shaft;Motor Frame Size 56; Horsepower: 1/2 HP; Dimensions: 41.50 Length X 40 Width X 17 Depth IN |
| 1-Phase, ball bearing, permanently lubricated, drip proof motor |
| Permanently lubricated bearings on blade drive shaft |
| Aluminum blade |
| Powder coated venturi |
| 1725 rpm |
| Motor frame size 56 |
| 5/8 in Dia shaft |
| AC motor |
