Panduit®

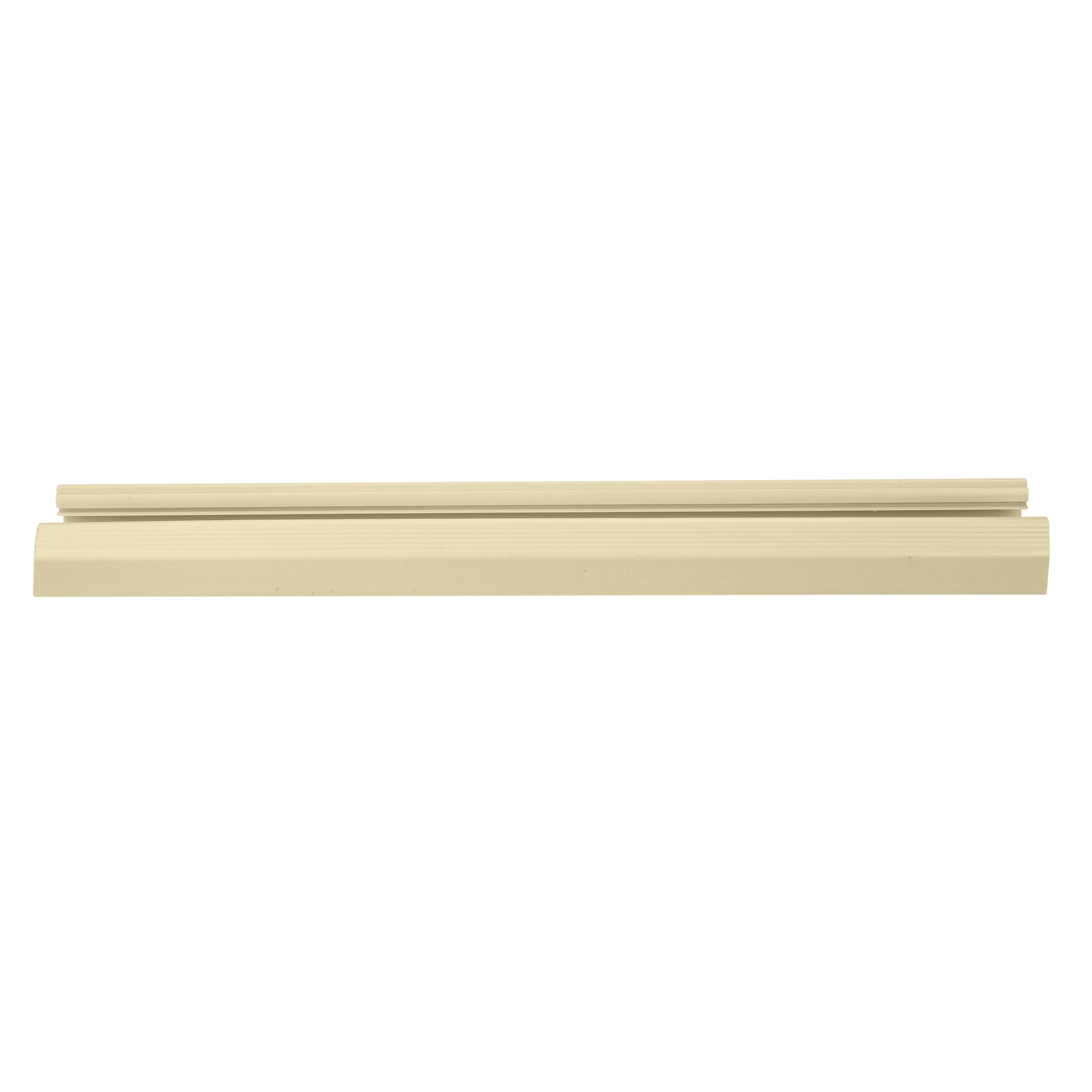

T-70 Power Rated Multi-Channel Raceway B
Custom_Product_Images_Illustration
Panduit®
T-70 Power Rated Multi-Channel Raceway B
SKU500647
MFGR #T70BEI10
Your Cost: $7.65/ea
T-70 non-metallic multi-channel capable surface raceway shall be used to route, protect and conceal data, voice, video, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications up to 600 volts between conductors by Underwriters Laboratories, Inc. per standard 5A and by Canadian Standards Association, Inc. per 22.2 no. 62.1-03, when screw secured and installed per instructions. A full complement of fittings with a 1" minimum bend radius compliant with TIA/EIA-568-B, must be available as well as device brackets and internal junction boxes to install a variety of communication and electrical devices. Divider walls must be available to form separate channels in the multi-channel raceway. "Snap-on" faceplates for data and powerterminations shall be available. An offset box shall be available, with versions for Panduit "snap-on" as well as "screw mount" faceplates, for mounting the power receptacle outside of the raceway channel. T-70 raceway will be manufactured from impact-resistant material with flammability rating of V-0. T-70 raceway must be tamper resistant yet, also allow access for moves, adds and changes. T-70 raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. T-70 raceway shall be available in four standard colors and shall be optimized for use with the Panduit® Pan-Net ® Communication System.
T-70 non-metallic multi-channel capable surface raceway shall be used to route, protect and conceal data, voice, video, fiber optic and power cabling. The raceway shall be listed as suitable for use in applications up to 600 volts between conductors by Underwriters Laboratories, Inc. per standard 5A and by Canadian Standards Association, Inc. per 22.2 no. 62.1-03, when screw secured and installed per instructions. A full complement of fittings with a 1" minimum bend radius compliant with TIA/EIA-568-B, must be available as well as device brackets and internal junction boxes to install a variety of communication and electrical devices. Divider walls must be available to form separate channels in the multi-channel raceway. "Snap-on" faceplates for data and powerterminations shall be available. An offset box shall be available, with versions for Panduit "snap-on" as well as "screw mount" faceplates, for mounting the power receptacle outside of the raceway channel. T-70 raceway will be manufactured from impact-resistant material with flammability rating of V-0. T-70 raceway must be tamper resistant yet, also allow access for moves, adds and changes. T-70 raceway finish shall be pure color and will resist scratches and dents and will not peel or corrode. T-70 raceway shall be available in four standard colors and shall be optimized for use with the Panduit® Pan-Net ® Communication System.
Application Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center ™ Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. ARRA Compliant Y Brand Panduit® Buy American Compliant Y Catalog Number T70BEI10 Color Electric Ivory Country of Origin USA Cover Type Multi-Channel Currency USD EU RoHS Indicator Y Gross Volume Per Pack 3.00 Gross Volume per Pack Metric 0.08 Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.6800 lb Gross Weight per Pack Metric 18.59 Gross Weight UOM Metric kg Height 4.30 in Height [Metric] 10.9220 cm Manufacturer Panduit® Material PVC Mounting Type Threaded Returnable Y Standard CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA C22.2 No. 62-93UL5A Listed Stock Status NONSTOCK Sub Brand Pan-Way?® Temperature Rating 0 to 50 °C Type Channel UNSPSC 39131710 UPC 11 07498370745 UPC 12 07498370745 Voltage Rating 600 VAC Width 11.10 in Width [Metric] 28.1940 cm
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Media
- Substitute Products
Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center ™ Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
ARRA Compliant | Y |
Brand | Panduit® |
Buy American Compliant | Y |
Catalog Number | T70BEI10 |
Color | Electric Ivory |
Country of Origin | USA |
Cover Type | Multi-Channel |
Currency | USD |
EU RoHS Indicator | Y |
Gross Volume Per Pack | 3.00 |
Gross Volume per Pack Metric | 0.08 |
Gross Volume UOM | CF |
Gross Volume UOM Metric | m3 |
Gross Weight Per Pack | 0.6800 lb |
Gross Weight per Pack Metric | 18.59 |
Gross Weight UOM Metric | kg |
Height | 4.30 in |
Height [Metric] | 10.9220 cm |
Manufacturer | Panduit® |
Material | PVC |
Mounting Type | Threaded |
Returnable | Y |
Standard | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantCE CertifiedCSA C22.2 No. 62-93UL5A Listed |
Stock Status | NONSTOCK |
Sub Brand | Pan-Way?® |
Temperature Rating | 0 to 50 °C |
Type | Channel |
UNSPSC | 39131710 |
UPC 11 | 07498370745 |
UPC 12 | 07498370745 |
Voltage Rating | 600 VAC |
Width | 11.10 in |
Width [Metric] | 28.1940 cm |
