Steel City® 665-CI Floor Box, Cast Iron, 126/45 cu-in, 4 Gangs
Floor Boxes
243379
MFG #: 665-CI
Steel City®
573.81000
/ ea

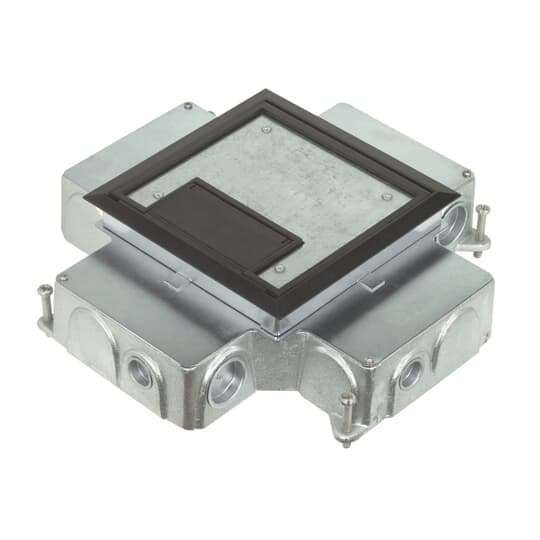

The new Steel City® 665 Cast Iron Floor Box provides a high capacity power and data solution for groundfloor installations. This 4-gang recessed service floor box is ideal for concrete slab on grade applications. Removable voltage dividers enable users to customize wiring configurations by feeding two or more adjacent compartments with a single conduit. Aesthetic covers feature a recess to accept floor covering to match the surrounding floor.
- http://www.TNB.com(Seller Home Page URL)
- Install Instructions 1 URL - TA02931-TB2.pdf(Install Instructions 1 URL)

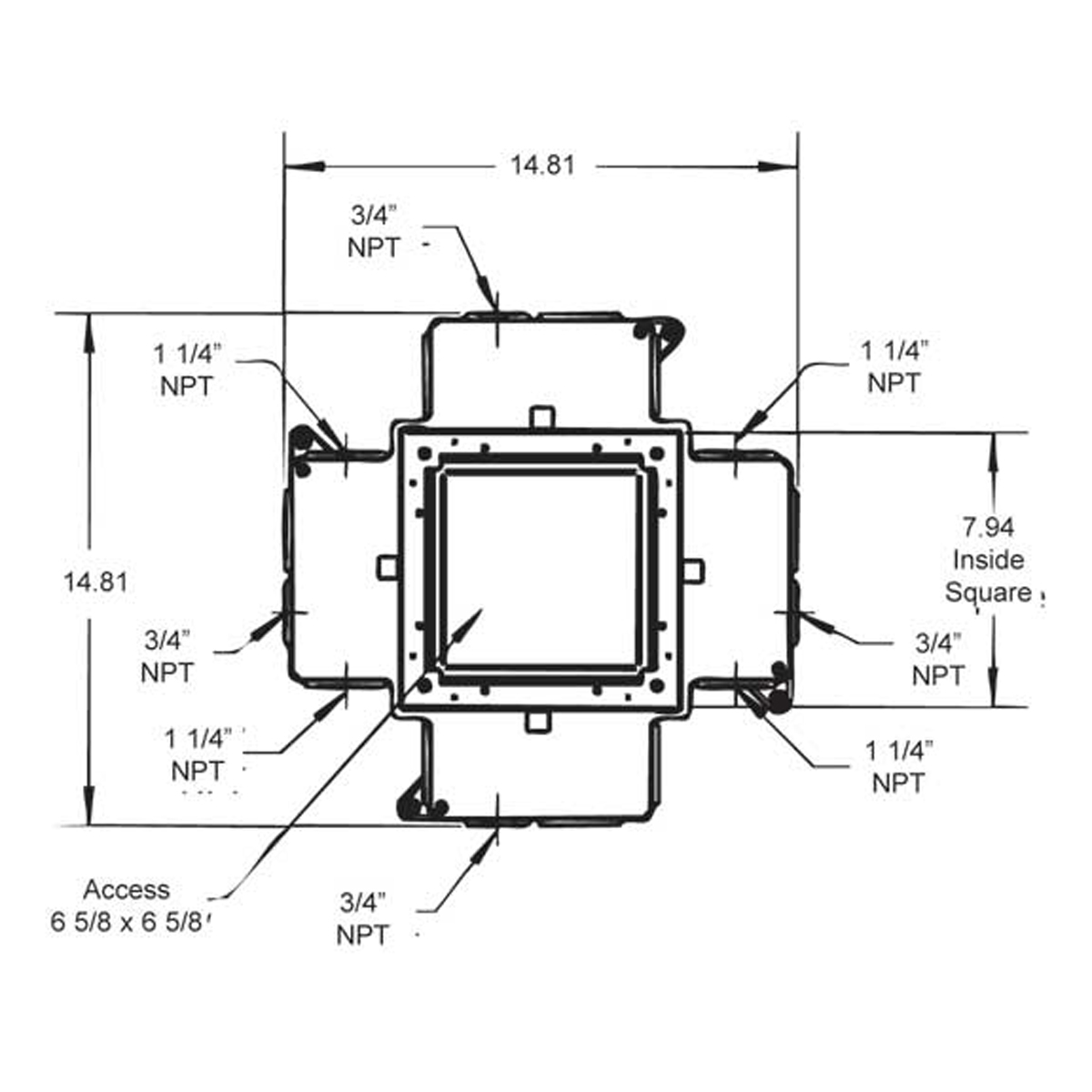

- Line Drawing URL - 665ci_sc_2_ld_en(Line Drawing URL)
- Spec Sheet 1 URL - Steel_City_665_CI_Data_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 12055_JZ9QY4AR7LTCG26U.pdf(Spec Sheet URL)
- Spec Sheet URL - WSD-000090.pdf(Spec Sheet URL)
- Tech Drawing URL - IDW_DOCUMENT_1520550061387.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/hPvlycg26vM(Video)
- Applications
- Features
| Ideal for modern office with workstations that have power, communications and data equipment. |
| Allows installation of up to 4 device panels in one box |
| Delivers power, communications and data from standard conduit with no exposed service fittings |
| 5-3/4 in L x 3-1/2 in W x 3-3/8 in D compartment size |
| Recessed service for a high-capacity aesthetic floor box solution |
| Removable voltage dividers between compartments enable a single conduit to feed two or more adjacent compartments |
| Heavy-duty, non-metallic covers with steel reinforcement plates are available in a wide variety of colours to match any decor |
| Metallic covers |
| Separate cord door in the cover latches firmly in the open position to prevent damage to cables |
| MopTiteTM covers meet UL scrub water exclusion requirements for carpet, tile and wood |
| Largest cubic-inch capacity of any cast iron recessed 4-gang floor box |
| Inline 1-1/4 in hubs allow high-capacity straight runs for communication wiring |
| 126 cu in (Device Access), 45 cu in (Device Compartments) |
