Sta-Kon® RB Series Insulated Pin Terminal, 16 to 14 AWG Conductor, 0.075 in Dia x 0.39 in L Pin, Copper, Blue
Pin Terminals
101320
MFG #: 14RB-47PT
Sta-Kon®
169.01000
/ ea
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.
- Compliance Cert URL - Sta_Kon_14RB_47PT_RoHS_Sheet.pdf(Compliance Cert URL)
- http://www.TNB.com(Seller Home Page URL)

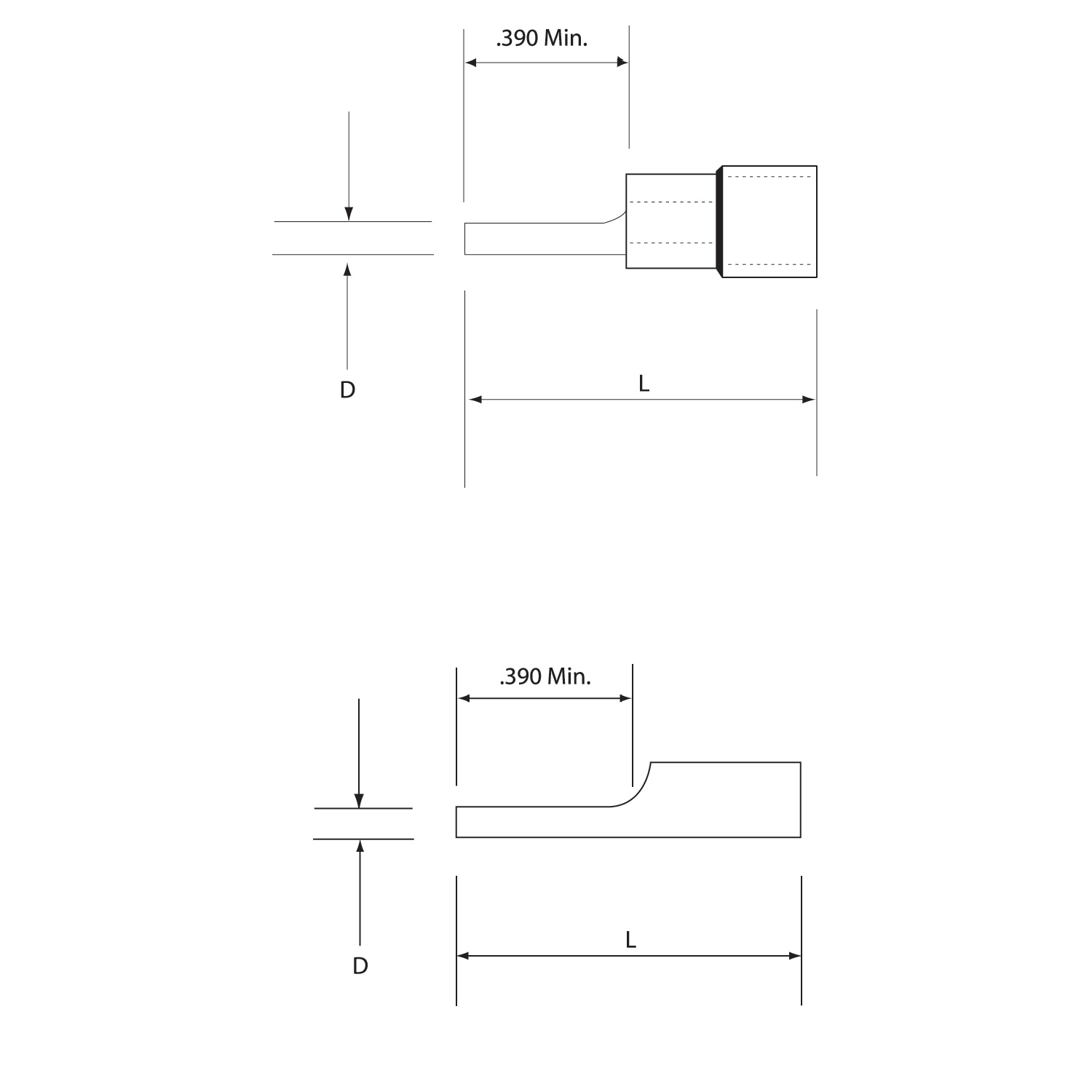

- Line Drawing URL - ring-terminal-sk2ld-11(Line Drawing URL)
- Spec Sheet 1 URL - Sta_Kon_14RB_47PT_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 029_CAT3_G15-19.pdf(Spec Sheet URL)
- Tech Drawing URL - rb47pt_sk1.JPG(Tech Drawing URL)
- Features
| Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks. |
| Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks |
| Vinyl insulated |
| ERG4001 recommended tool |
| Designed to prevent shorting, wire strand loss and/or wire pullout resulting from improper termination of stranded wire |
| Designed to meet emerging global standards which require wire to metric-style terminal block installations be terminated with a "pin" style terminal |
| Electro-tin plated finish |
