Schneider Electric

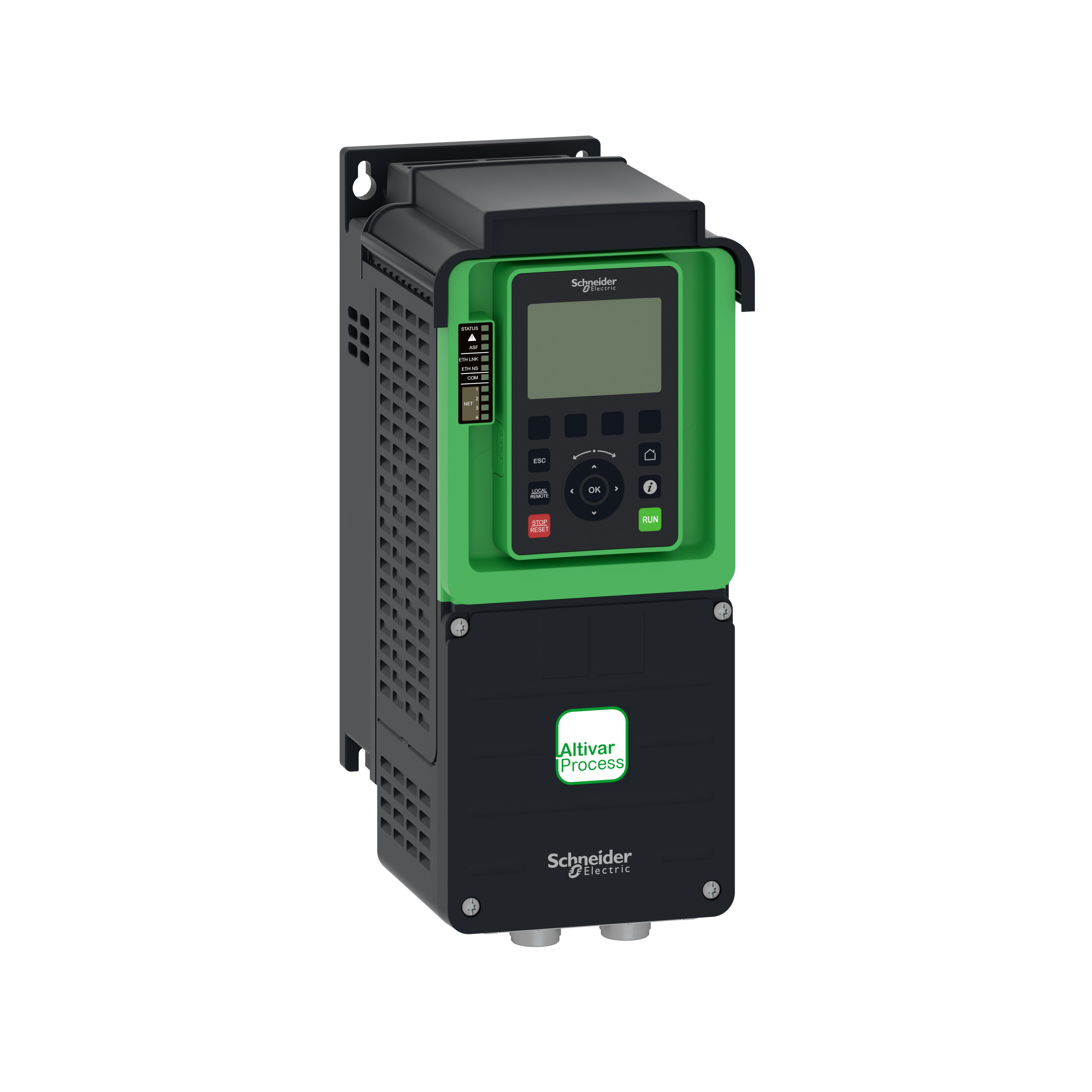

Square D ATV630U55N4 ATV630 TYPE1 460V 7
Custom_Product_Images_Illustration
Schneider Electric
Square D ATV630U55N4 ATV630 TYPE1 460V 7
SKU1044433
MFGR #ATV630U55N4
Call For Price
List: Schneider Electric ATV630U55N4 ATV630 TYPE1 460V 7.5 HP
Schneider Electric ATV630U55N4 ATV630 TYPE1 460V 7.5 HP
Alternate Catalog Number ATV630U55N4 Amperage Rating 7.2/8/9.1/10.4 A Application Synchronous motors;asynchronous motors;Process and utilities; ARRA Compliant N Brand Schneider Electric Buy American Compliant N Catalog Number ATV630U55N4 Communication Modbus serial;Modbus TCP;Ethernet Country of Origin US Currency USD Current Rating 12.7 A 4 kHz normal duty;9.3 A 4 kHz heavy duty A Depth 7.99 in Display for local diagnostic 3 LEDs; for embedded communication status 3 LEDs (dual colour); for communication module status 4 LEDs (dual colour); for presence of voltage 1 LED (red) Display Type Remote Graphic Enclosure Type NEMA 1/IP20/IP21 EU RoHS Indicator Y Gross Volume Per Pack 1657.50 Gross Volume per Pack Metric 27161.45 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0627 lb Gross Weight per Pack Metric 6.23 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8504404000 Height 31.5000 in Height [Metric] 31.5000 cm Horsepower 5 hp, 7-1/2 hp Input Voltage 380...480 V - 15...10 % Item Group 22205 Length 41.0000 in Length [Metric] 41.0000 cm Manufacturer Schneider Electric Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421036882&lang=en-us Mounting Wall Mount Mounting Type Wall Number Of Phases 3 Returnable Y Series Altivar™ Process 630 Size 7.99 in Standard IP21IEC 61800-5-1;IP21IEC 60529 Stock Status NONSTOCK Sub Brand ATV630 Substitute Product Catalog Number VW3A1112 Type 3-Phase Type 1 Standard UNSPSC 39122001 Voltage Rating 460 VAC Width 17.6000 in Width [Metric] 17.6000 cm Synchronous motors;asynchronous motors;Process and utilities; Constant torque standard;Variable torque standard;Optimized torque mode;16 preset speeds;Forced convection Accurate measurement for monitoring system energy consumption (deviation <5%) Installation energy drift detection Embedded Ethernet with direct access to system configuration and monitoring Integration of actual pump curves to optimize the system operating point Optimized pump monitoring based on actual operating point Sensorless estimated flow rate Measurements expressed in working units Limitation of overvoltage at the motor terminals Contextual access to technical documentation through dynamic QR code Continuous and historical real-time measurements with customizable dashboards Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) 7-1/2 hp at normal duty, 5 hp at heavy duty horsepower rating 10.4 A at 380 VAC normal duty, 9.1 A at 480 VAC normal duty, 8 A at 380 VAC heavy duty, 7.2 A at 480 VAC heavy duty amperage rating
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | ATV630U55N4 |
| Amperage Rating | 7.2/8/9.1/10.4 A |
| Application | Synchronous motors;asynchronous motors;Process and utilities; |
| ARRA Compliant | N |
| Brand | Schneider Electric |
| Buy American Compliant | N |
| Catalog Number | ATV630U55N4 |
| Communication | Modbus serial;Modbus TCP;Ethernet |
| Country of Origin | US |
| Currency | USD |
| Current Rating | 12.7 A 4 kHz normal duty;9.3 A 4 kHz heavy duty A |
| Depth | 7.99 in |
| Display | for local diagnostic 3 LEDs; for embedded communication status 3 LEDs (dual colour); for communication module status 4 LEDs (dual colour); for presence of voltage 1 LED (red) |
| Display Type | Remote Graphic |
| Enclosure Type | NEMA 1/IP20/IP21 |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 1657.50 |
| Gross Volume per Pack Metric | 27161.45 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0627 lb |
| Gross Weight per Pack Metric | 6.23 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8504404000 |
| Height | 31.5000 in |
| Height [Metric] | 31.5000 cm |
| Horsepower | 5 hp, 7-1/2 hp |
| Input Voltage | 380...480 V - 15...10 % |
| Item Group | 22205 |
| Length | 41.0000 in |
| Length [Metric] | 41.0000 cm |
| Manufacturer | Schneider Electric |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=421036882&lang=en-us |
| Mounting | Wall Mount |
| Mounting Type | Wall |
| Number Of Phases | 3 |
| Returnable | Y |
| Series | Altivar™ Process 630 |
| Size | 7.99 in |
| Standard | IP21IEC 61800-5-1;IP21IEC 60529 |
| Stock Status | NONSTOCK |
| Sub Brand | ATV630 |
| Substitute Product Catalog Number | VW3A1112 |
| Type | 3-Phase Type 1 Standard |
| UNSPSC | 39122001 |
| Voltage Rating | 460 VAC |
| Width | 17.6000 in |
| Width [Metric] | 17.6000 cm |
| Synchronous motors;asynchronous motors;Process and utilities; |
| Constant torque standard;Variable torque standard;Optimized torque mode;16 preset speeds;Forced convection |
| Accurate measurement for monitoring system energy consumption (deviation <5%) |
| Installation energy drift detection |
| Embedded Ethernet with direct access to system configuration and monitoring |
| Integration of actual pump curves to optimize the system operating point |
| Optimized pump monitoring based on actual operating point |
| Sensorless estimated flow rate |
| Measurements expressed in working units |
| Limitation of overvoltage at the motor terminals |
| Contextual access to technical documentation through dynamic QR code |
| Continuous and historical real-time measurements with customizable dashboards |
| Predictive and preventive maintenance tracking functions (e.g.: temperatures with PT100/1000 probe, fan monitoring) |
| 7-1/2 hp at normal duty, 5 hp at heavy duty horsepower rating |
| 10.4 A at 380 VAC normal duty, 9.1 A at 480 VAC normal duty, 8 A at 380 VAC heavy duty, 7.2 A at 480 VAC heavy duty amperage rating |
