Schneider Electric

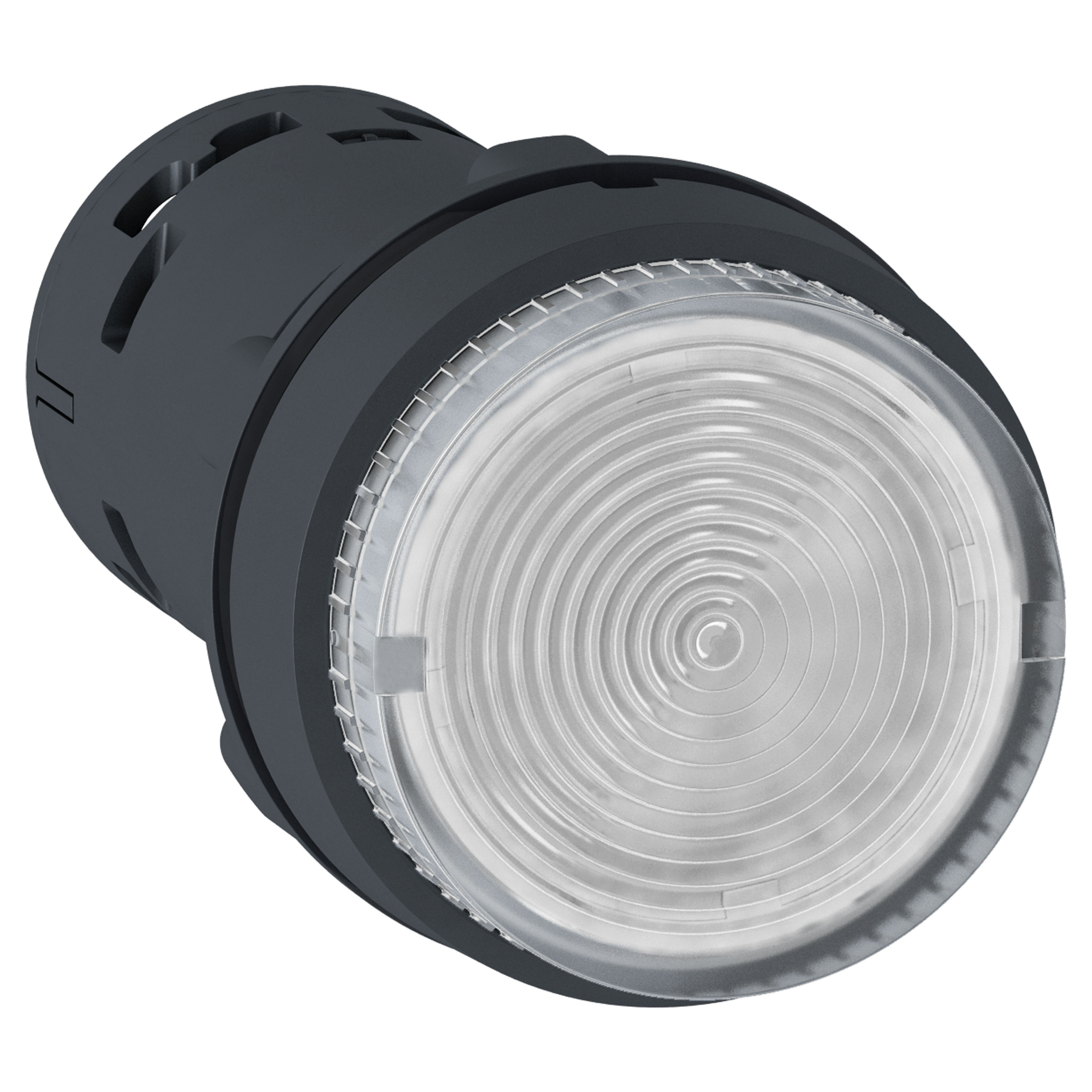

Square D™ XB7NW37M1 ILLUM PB LED Spring R
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NW37M1 ILLUM PB LED Spring R
SKUPDW~11799932
MFGR #XB7NW37M1
Price Not Available
Schneider Electric XB7NW37M1,ILLUM PB LED Spring Rtn 1NO Clear 230v
Schneider Electric XB7NW37M1,ILLUM PB LED Spring Rtn 1NO Clear 230v
Action SLOW-BREAK Actuator spring return;Clear projecting, unmarked Alternate Catalog Number XB7NW37M1 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NW37M1 Connection Type Cable Connector Contact Rating 0.3 A at 240 VAC/0.6 A at 120 VAC/0.1 A at 250 VDC/0.22 A at 125 VDC Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E Enclosure Type NEMA 12 Environmental Conditions -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance EU RoHS Indicator Y Gross Volume Per Pack 2.20 Gross Volume per Pack Metric 36.05 Gross Weight Per Pack 0.0600 lb Gross Weight per Pack Metric 25.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 2.3622 in Height [Metric] 6.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Lamp Type LED/Integral LED Length 1.1811 in Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267951730&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Mounting Type Through Hole Operating Temperature -25-70 A°C Returnable N Series XB7 Series Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Substitute Product Catalog Number ZB5AZ905 Terminal Type Screw Clamp Type Illuminated push-button UNSPSC 39122216 UPC 11 78590153142 UPC 12 785901531425 Voltage Rating 230 V AC 50/60 HZ Warranty Description Contractual Warranty:18 months Width 1.1811 in Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1 NO Operator Type Clear Projecting/Spring Return/Slow Break Size 22 MM,29 MM,29 MM,57.5 MM in ILLUMINATED PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Clear projecting, unmarked |
| Alternate Catalog Number | XB7NW37M1 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NW37M1 |
| Connection Type | Cable Connector |
| Contact Rating | 0.3 A at 240 VAC/0.6 A at 120 VAC/0.1 A at 250 VDC/0.22 A at 125 VDC |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2.20 |
| Gross Volume per Pack Metric | 36.05 |
| Gross Weight Per Pack | 0.0600 lb |
| Gross Weight per Pack Metric | 25.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 2.3622 in |
| Height [Metric] | 6.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Lamp Type | LED/Integral LED |
| Length | 1.1811 in |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267951730&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Mounting Type | Through Hole |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 Series |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Substitute Product Catalog Number | ZB5AZ905 |
| Terminal Type | Screw Clamp |
| Type | Illuminated push-button |
| UNSPSC | 39122216 |
| UPC 11 | 78590153142 |
| UPC 12 | 785901531425 |
| Voltage Rating | 230 V AC 50/60 HZ |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.1811 in |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 NO |
| Operator Type | Clear Projecting/Spring Return/Slow Break |
| Size | 22 MM,29 MM,29 MM,57.5 MM in |
| ILLUMINATED PUSH-BUTTON |
