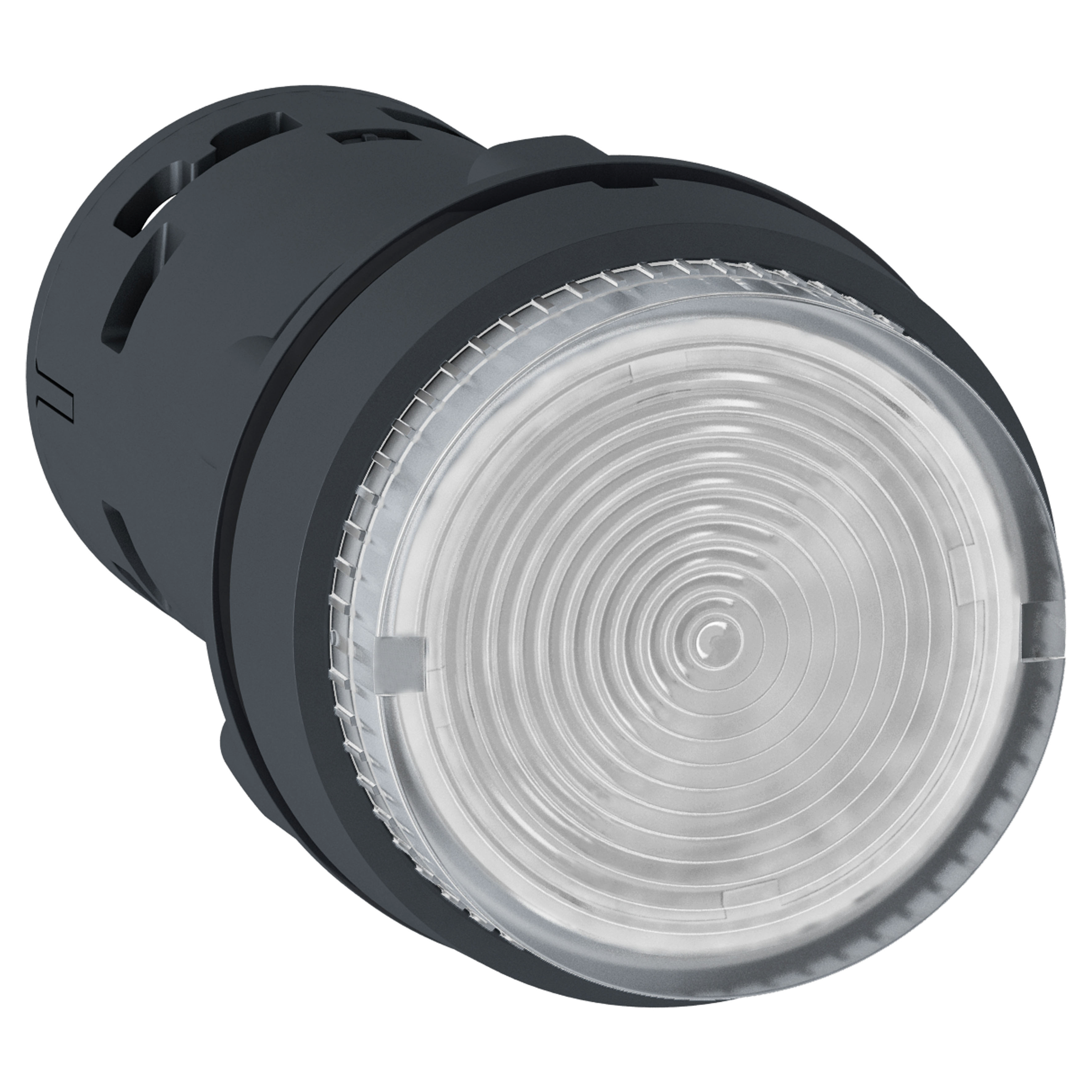

Square D™ XB7NW37G1 ILLUM PB LED Spring R
SKUPDW~11799931
MFGR #XB7NW37G1
Price Not Available
Schneider Electric XB7NW37G1,ILLUM PB LED Spring Rtn 1NO Clear 110v
Schneider Electric XB7NW37G1,ILLUM PB LED Spring Rtn 1NO Clear 110v
Action SLOW-BREAK Actuator spring return;Clear projecting, unmarked Alternate Catalog Number XB7NW37G1 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Bezel|Housing Plastic Bezel Buy American Compliant N Catalog Number XB7NW37G1 Contact Mode Projecting Push Contact Rating 0.6 A at 120 VAC, 0.3 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E Enclosure Type NEMA 12/IP20/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 2.54 Gross Volume per Pack Metric 41.62 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0600 lb Gross Weight per Pack Metric 25.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 2.3622 in Height [Metric] 6.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Lamp Type Integral LED Length 1.1811 in Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958865&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Operating Temperature -25-70 A°C Returnable N Series XB7 Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Substitute Product Catalog Number ZBY2101 Terminal Type Screw/Clamp Type Monolithic Round Unmarked UNSPSC 39122216 UPC 11 785901531418 UPC 12 785901531418 Voltage Rating 120 V AC 50/60 HZ Warranty Description Contractual Warranty:18 months Width 1.1811 in Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Clear Contact Configuration 1NO Contact Type Slow Break Operator Type Spring Return Size 22 mm ILLUMINATED PUSH-BUTTON This Schneider electric Harmony™ XB7 illuminated projecting monolithic clear pushbutton operates with a spring return/impulse mechanism, is supplied with 120 VAC, uses an integral LED and has screw clamp terminals The XB7 line is an all-in-one pushbutton with the operators on the back of the operator Monolithic design easy to buy and quick to install by eliminating the need for components Four terminals with two contacts a more flexible solution for customers wiring needs Separate NO and NC contacts increased wiring flexibility
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Clear projecting, unmarked |
| Alternate Catalog Number | XB7NW37G1 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic Bezel |
| Buy American Compliant | N |
| Catalog Number | XB7NW37G1 |
| Contact Mode | Projecting Push |
| Contact Rating | 0.6 A at 120 VAC, 0.3 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| Enclosure Type | NEMA 12/IP20/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2.54 |
| Gross Volume per Pack Metric | 41.62 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0600 lb |
| Gross Weight per Pack Metric | 25.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 2.3622 in |
| Height [Metric] | 6.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Lamp Type | Integral LED |
| Length | 1.1811 in |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958865&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Substitute Product Catalog Number | ZBY2101 |
| Terminal Type | Screw/Clamp |
| Type | Monolithic Round Unmarked |
| UNSPSC | 39122216 |
| UPC 11 | 785901531418 |
| UPC 12 | 785901531418 |
| Voltage Rating | 120 V AC 50/60 HZ |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.1811 in |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Clear |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | Spring Return |
| Size | 22 mm |
| ILLUMINATED PUSH-BUTTON |
| This Schneider electric Harmony™ XB7 illuminated projecting monolithic clear pushbutton operates with a spring return/impulse mechanism, is supplied with 120 VAC, uses an integral LED and has screw clamp terminals |
| The XB7 line is an all-in-one pushbutton with the operators on the back of the operator |
| Monolithic design easy to buy and quick to install by eliminating the need for components |
| Four terminals with two contacts a more flexible solution for customers wiring needs |
| Separate NO and NC contacts increased wiring flexibility |
