Schneider Electric

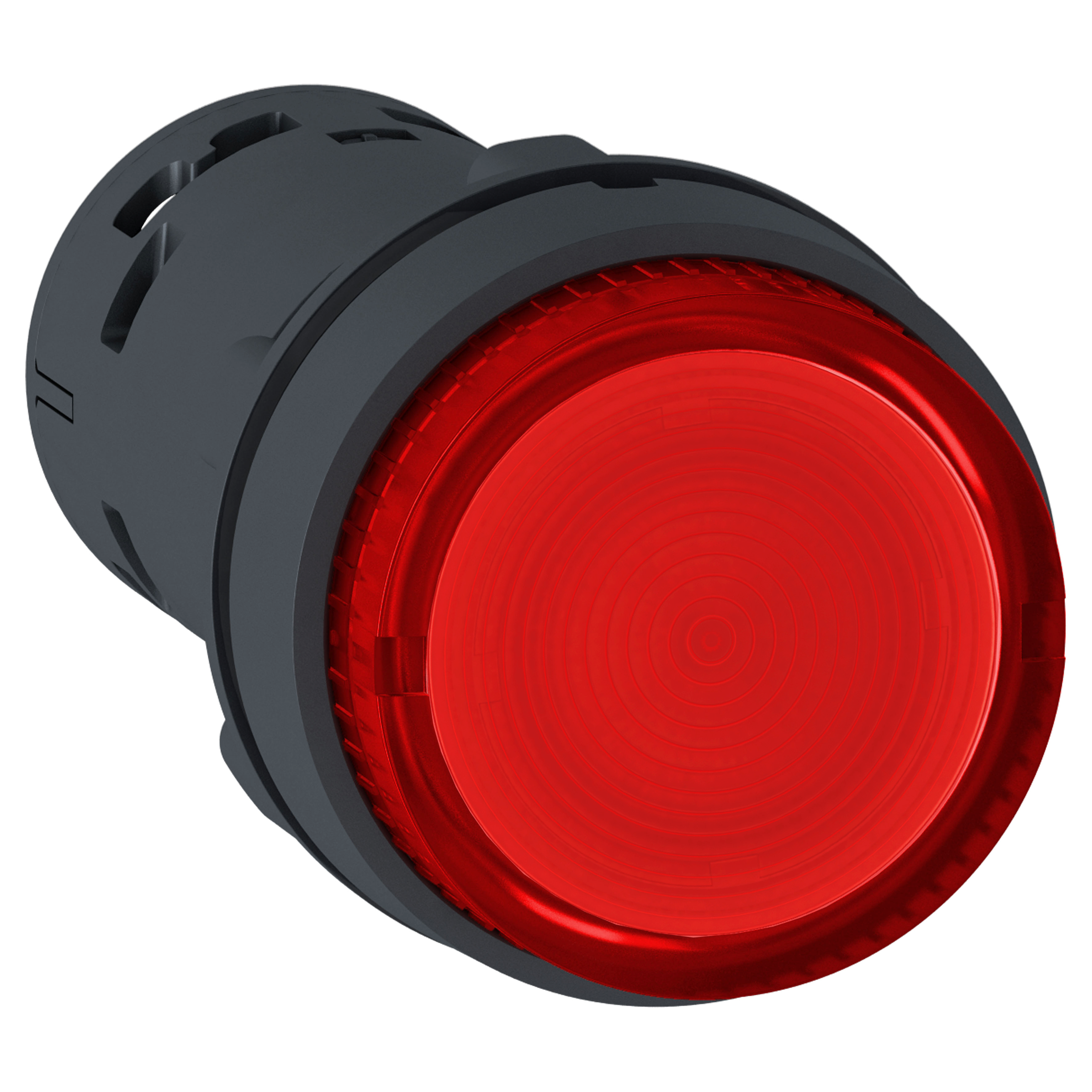

Square D™ XB7NW34M1 ILLUM PB LED Spring
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NW34M1 ILLUM PB LED Spring
SKUPDW~11799922
MFGR #XB7NW34M1
Price Not Available
Schneider Electric XB7NW34M1 ILLUM PB LED Spring Rtn 1NO Red 230v,1 NO,22 mm,230 V AC, 50/60 Hz,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Schneider Electric XB7NW34M1 ILLUM PB LED Spring Rtn 1NO Red 230v,1 NO,22 mm,230 V AC, 50/60 Hz,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Action SLOW-BREAK Actuator Red projecting, unmarked; spring return Alternate Catalog Number XB7NW34M1 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NW34M1 Connection Type Cable Connector Contact Rating 0.3 A at 240 VAC/0.6 A at 120 VAC/0.1 A at 250 VDC/0.22 A at 125 VDC Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E Enclosure Type NEMA 12 Environmental Conditions -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance EU RoHS Indicator Y Gross Volume Per Pack 3.75 Gross Volume per Pack Metric 61.45 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 25.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509031 Height 6.0000 in Height [Metric] 6.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Lamp Type LED/Integral LED Length 3.2000 in Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267943304&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Mounting Type Through Hole Operating Temperature -25-70 A°C Returnable N Series XB7 Series Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Substitute Product Catalog Number ZBY2101 Terminal Type Screw Clamp Type Monolithic UNSPSC 39122216 UPC 11 785901529965 UPC 12 785901529965 Voltage Rating 230 V AC 50/60 HZ Warranty Description Contractual Warranty:18 months Width 3.2000 in Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1NO Operator Type Red Projecting/Spring Return/Slow Break Size 22 in ILLUMINATED PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Red projecting, unmarked; spring return |
| Alternate Catalog Number | XB7NW34M1 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NW34M1 |
| Connection Type | Cable Connector |
| Contact Rating | 0.3 A at 240 VAC/0.6 A at 120 VAC/0.1 A at 250 VDC/0.22 A at 125 VDC |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| Enclosure Type | NEMA 12 |
| Environmental Conditions | -13 to 158 deg F Operation/-40 to 158 deg F Storage/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 3.75 |
| Gross Volume per Pack Metric | 61.45 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 25.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 6.0000 in |
| Height [Metric] | 6.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Lamp Type | LED/Integral LED |
| Length | 3.2000 in |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267943304&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Mounting Type | Through Hole |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 Series |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Substitute Product Catalog Number | ZBY2101 |
| Terminal Type | Screw Clamp |
| Type | Monolithic |
| UNSPSC | 39122216 |
| UPC 11 | 785901529965 |
| UPC 12 | 785901529965 |
| Voltage Rating | 230 V AC 50/60 HZ |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.2000 in |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NO |
| Operator Type | Red Projecting/Spring Return/Slow Break |
| Size | 22 in |
| ILLUMINATED PUSH-BUTTON |
