Schneider Electric

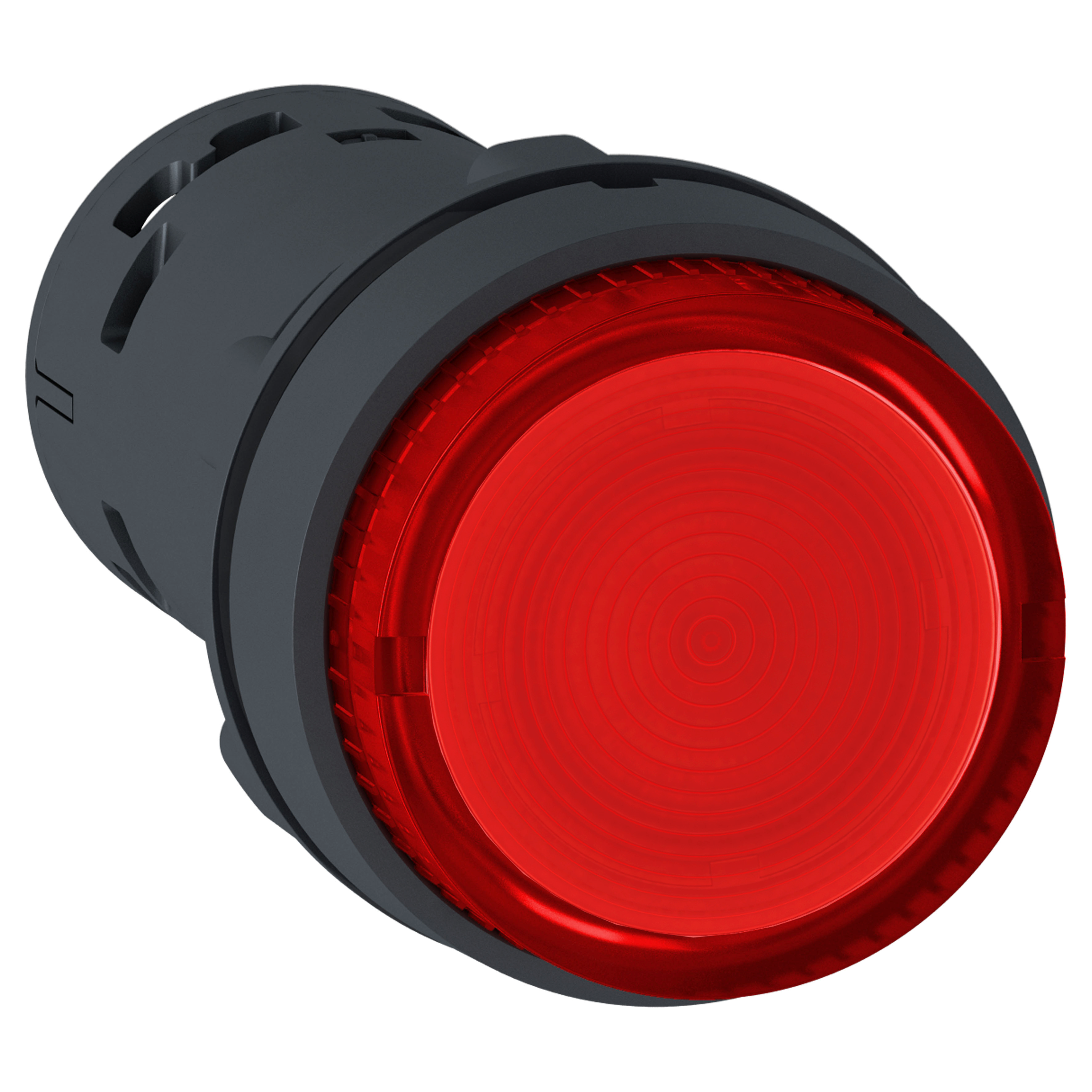

Square D™ XB7NW34B2 ILLUM. P.B - LED - Sp
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NW34B2 ILLUM. P.B - LED - Sp
SKUPDW~9347876
MFGR #XB7NW34B2
Your Cost: $44.40/ea
Schneider Electric,ILLUM. P.B - LED - Spring Rtn -1NC - Red - 24v,1 NC,22 mm,24 V AC/DC,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Schneider Electric,ILLUM. P.B - LED - Spring Rtn -1NC - Red - 24v,1 NC,22 mm,24 V AC/DC,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Action SLOW-BREAK Actuator spring return;Red projecting, unmarked Alternate Catalog Number XB7NW34B2 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 VAC//VDC ARRA Compliant N Buy American Compliant N Catalog Number XB7NW34B2 Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E EU RoHS Indicator Y Gross Volume Per Pack 4.06 Gross Volume per Pack Metric 66.53 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2500 lb Gross Weight per Pack Metric 25.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509031 Height 6.0000 in Height [Metric] 6.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Length 3.2000 in Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267945957&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Operating Temperature -25-70 A°C Returnable Y Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Substitute Product Catalog Number ZBY2303 Type ILLUMINATED PUSH-BUTTON UNSPSC 39122216 UPC 11 78590121903 UPC 12 785901219033 Voltage Rating 24 VAC//VDC Warranty Description Contractual Warranty:18 months Width 3.2000 in Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1 NC Size 22 MM,29 MM,29 MM,57.5 MM in WITH PLAIN LENS
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Red projecting, unmarked |
| Alternate Catalog Number | XB7NW34B2 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 VAC//VDC |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NW34B2 |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 4.06 |
| Gross Volume per Pack Metric | 66.53 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2500 lb |
| Gross Weight per Pack Metric | 25.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 6.0000 in |
| Height [Metric] | 6.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Length | 3.2000 in |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267945957&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Substitute Product Catalog Number | ZBY2303 |
| Type | ILLUMINATED PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590121903 |
| UPC 12 | 785901219033 |
| Voltage Rating | 24 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.2000 in |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 NC |
| Size | 22 MM,29 MM,29 MM,57.5 MM in |
| WITH PLAIN LENS |
