Schneider Electric

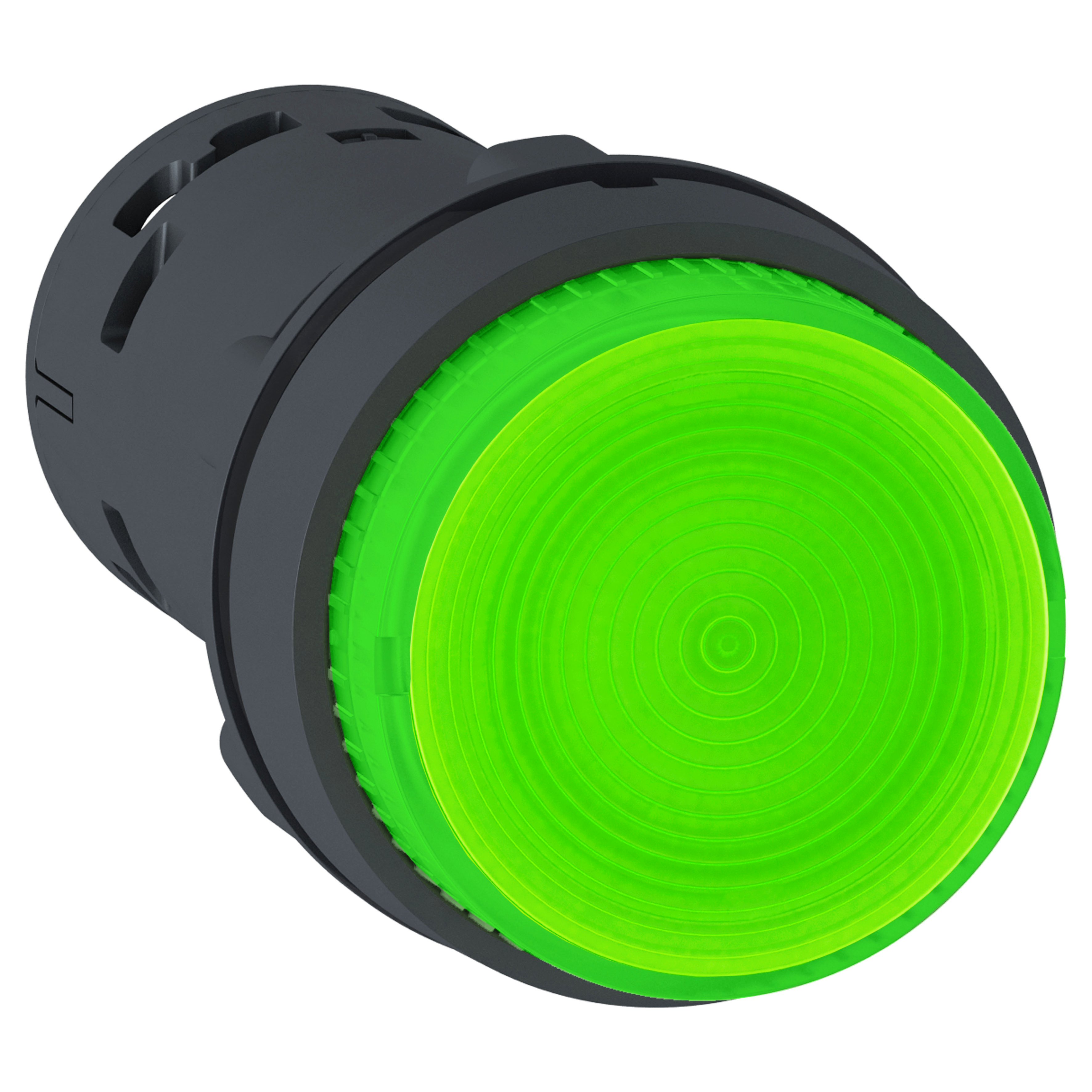

Square D™ XB7NW33G1 ILLUM. P.B - LED - Sp
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NW33G1 ILLUM. P.B - LED - Sp
SKUPDW~9347874
MFGR #XB7NW33G1
Call For Price
Schneider Electric,ILLUM. P.B - LED - Spring Rtn -1NO - Green - 1,1 NO,120 V AC,50/60 Hz,22 mm,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Schneider Electric,ILLUM. P.B - LED - Spring Rtn -1NO - Green - 1,1 NO,120 V AC,50/60 Hz,22 mm,Harmony XB7,LED,integral LED,monolithic push-button,monolithic push-button,slow-break,spring return
Action SLOW-BREAK Actuator spring return;Green projecting, unmarked Alternate Catalog Number XB7NW33G1 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NW33G1 Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E EU RoHS Indicator Y Gross Volume Per Pack 2.88 Gross Volume per Pack Metric 47.20 Gross Weight Per Pack 0.0600 lb Gross Weight per Pack Metric 25.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509031 Height 2.3622 in Height [Metric] 15.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Length 1.1811 in Length [Metric] 40.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958851&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Operating Temperature -25-70 A°C Returnable N Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Substitute Product Catalog Number ZBY2101 Type ILLUMINATED PUSH-BUTTON UNSPSC 39122216 UPC 11 78590121901 UPC 12 785901219019 Voltage Rating 120 V AC 50/60 HZ Warranty Description Contractual Warranty:18 months Width 1.1811 in Width [Metric] 15.0000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1 NO Size 22 MM,29 MM,29 MM,57.5 MM in ILLUMINATED PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Green projecting, unmarked |
| Alternate Catalog Number | XB7NW33G1 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NW33G1 |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2.88 |
| Gross Volume per Pack Metric | 47.20 |
| Gross Weight Per Pack | 0.0600 lb |
| Gross Weight per Pack Metric | 25.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 2.3622 in |
| Height [Metric] | 15.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Length | 1.1811 in |
| Length [Metric] | 40.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958851&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Substitute Product Catalog Number | ZBY2101 |
| Type | ILLUMINATED PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590121901 |
| UPC 12 | 785901219019 |
| Voltage Rating | 120 V AC 50/60 HZ |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.1811 in |
| Width [Metric] | 15.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 NO |
| Size | 22 MM,29 MM,29 MM,57.5 MM in |
| ILLUMINATED PUSH-BUTTON |
