Square D™ XB7NL4534 PB Proj Spring Rtn r
SKUPDW~11799920
MFGR #XB7NL4534
Price Not Available

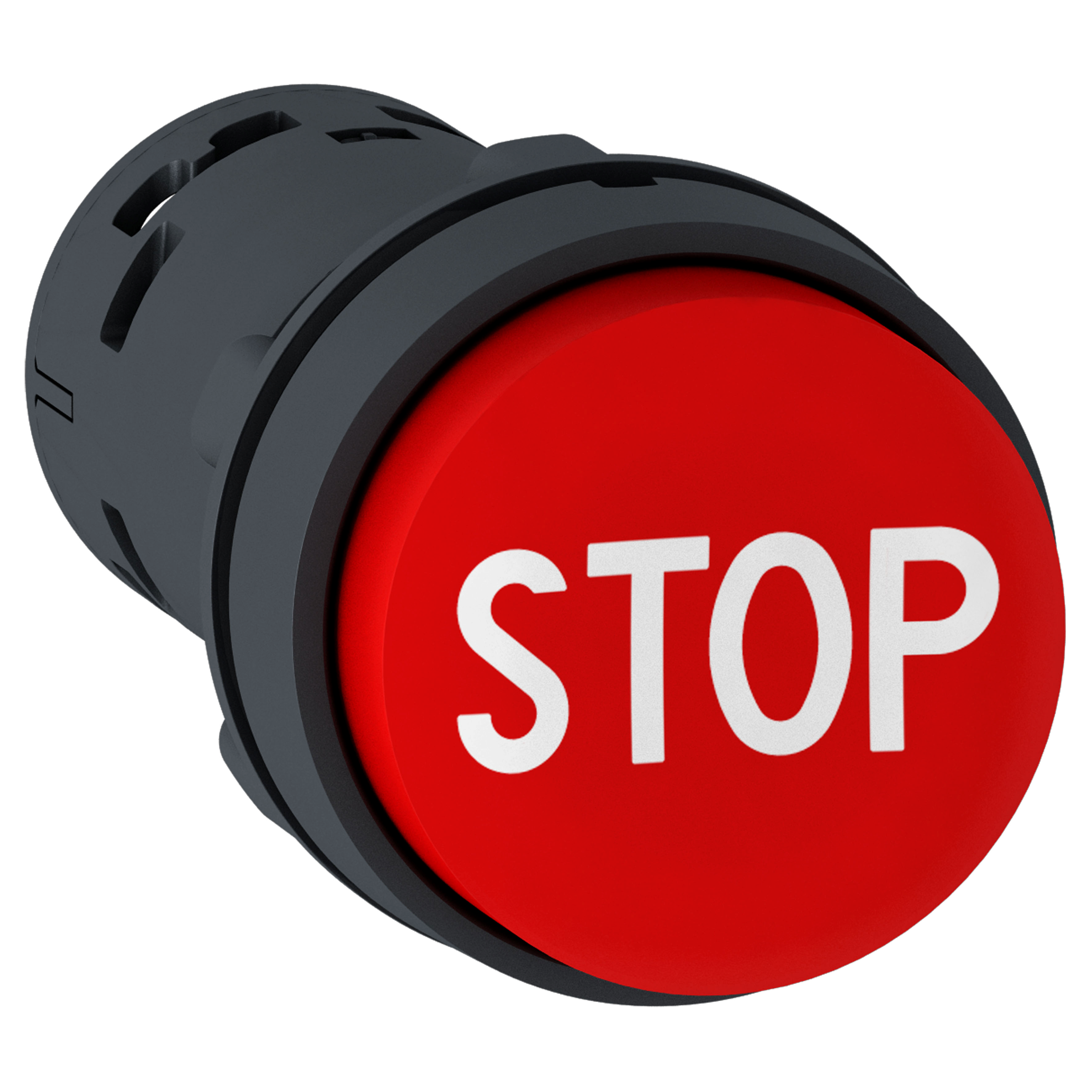

Schneider Electric XB7NL4534,PB Proj Spring Rtn red NO+NC White STOP
Schneider Electric XB7NL4534,PB Proj Spring Rtn red NO+NC White STOP
Action SLOW-BREAK Actuator spring return;Red projecting, STOP white) Alternate Catalog Number XB7NL4534 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NL4534 Connection Type Cable Connector Country of Origin ID Enclosure NEMA 12 UL 50 E-NEMA 3 UL 50 E Enclosure Type NEMA 3/12 Environmental Conditions -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance EU RoHS Indicator Y Gross Volume Per Pack 3.75 Gross Volume per Pack Metric 61.45 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0530 lb Gross Weight per Pack Metric 24.00 Gross Weight UOM Metric g Height 2.34 in Height [Metric] 6.0000 cm Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Legend Stop Legend Color White Length 1.25 in Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267952603&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Mounting Type Through Hole Operating Temperature -25-70 A°C Returnable N Series XB7 Series Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Terminal Type Screw Clamp Type Push-button UNSPSC 39122216 UPC 11 785901534976 UPC 12 785901534976 Warranty Description Contractual Warranty:18 months Width 1.25 in Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1NC-1NO Operator Type Red Projecting/Spring Return/Slow Break Size 22 in PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Red projecting, STOP white) |
| Alternate Catalog Number | XB7NL4534 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NL4534 |
| Connection Type | Cable Connector |
| Country of Origin | ID |
| Enclosure | NEMA 12 UL 50 E-NEMA 3 UL 50 E |
| Enclosure Type | NEMA 3/12 |
| Environmental Conditions | -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 3.75 |
| Gross Volume per Pack Metric | 61.45 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0530 lb |
| Gross Weight per Pack Metric | 24.00 |
| Gross Weight UOM Metric | g |
| Height | 2.34 in |
| Height [Metric] | 6.0000 cm |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Legend | Stop |
| Legend Color | White |
| Length | 1.25 in |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267952603&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Mounting Type | Through Hole |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 Series |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Terminal Type | Screw Clamp |
| Type | Push-button |
| UNSPSC | 39122216 |
| UPC 11 | 785901534976 |
| UPC 12 | 785901534976 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.25 in |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NC-1NO |
| Operator Type | Red Projecting/Spring Return/Slow Break |
| Size | 22 in |
| PUSH-BUTTON |
