Schneider Electric

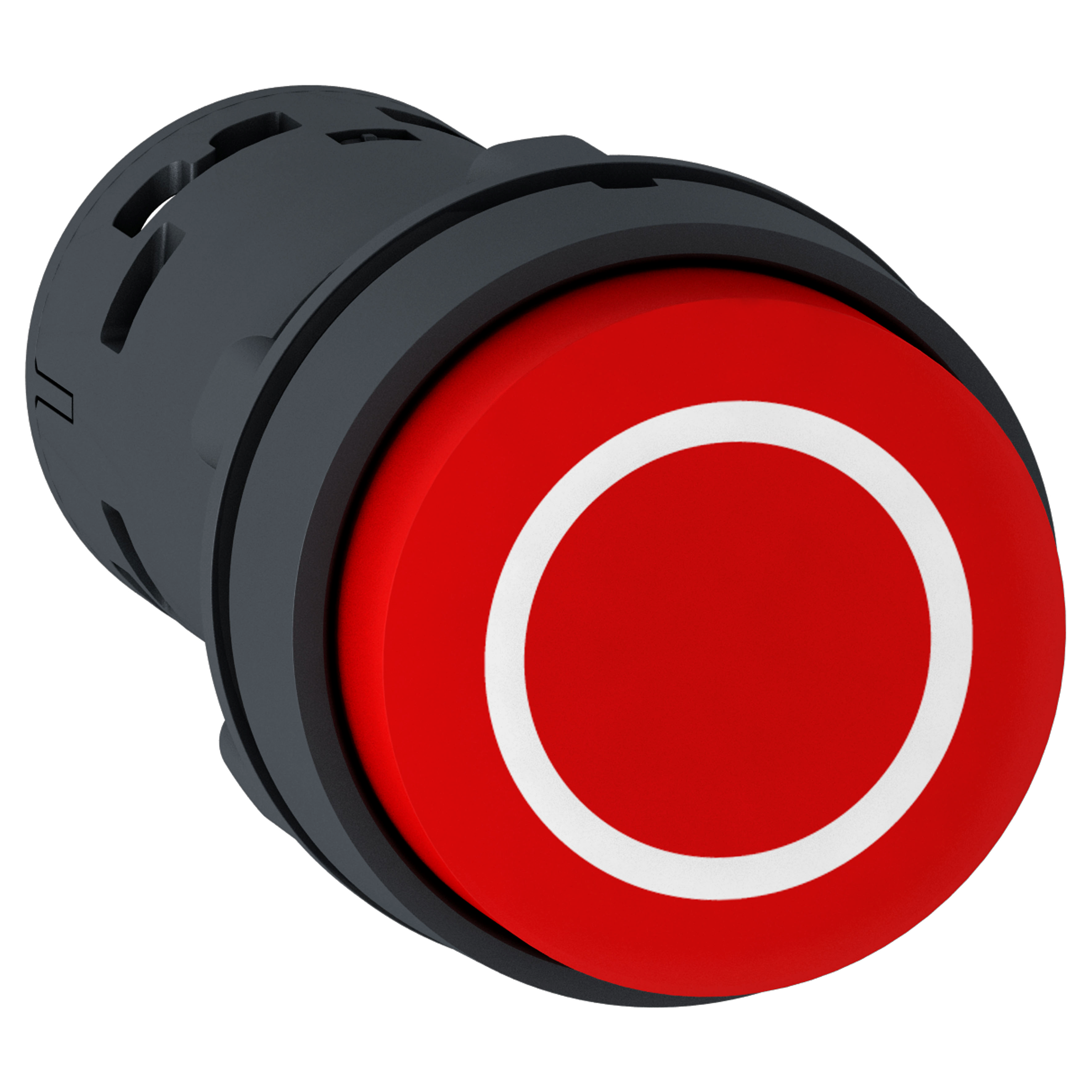

Square D™ XB7NL4532 PB Proj Spring Rtn r
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NL4532 PB Proj Spring Rtn r
SKUPDW~11799919
MFGR #XB7NL4532
Price Not Available
List: Schneider Electric XB7NL4532,PB Proj Spring Rtn red NO+NC White O
Schneider Electric XB7NL4532,PB Proj Spring Rtn red NO+NC White O
Action SLOW-BREAK Actuator spring return;Red projecting, O white) Alternate Catalog Number XB7NL4532 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NL4532 Connection Type Cable Connector Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E-NEMA 3 UL 50 E Enclosure Type NEMA 3/12 Environmental Conditions -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance EU RoHS Indicator Y Gross Volume Per Pack 15.29 Gross Volume per Pack Metric 250.56 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 24.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8538908180 Height 6.0000 CM Height [Metric] 6.0000 cm Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Legend O Legend Color White Length 3.2000 CM Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267944962&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Mounting Type Through Hole Operating Temperature -25-70 A°C Returnable N Series XB7 Series Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Terminal Type Screw Clamp Type PUSH-BUTTON UNSPSC 39122216 UPC 11 78590153446 UPC 12 785901534464 Warranty Description Contractual Warranty:18 months Width 3.0000 CM Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1NC-1NO Operator Type Red Projecting/Spring Return/Slow Break Size 22 in PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Red projecting, O white) |
| Alternate Catalog Number | XB7NL4532 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NL4532 |
| Connection Type | Cable Connector |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E-NEMA 3 UL 50 E |
| Enclosure Type | NEMA 3/12 |
| Environmental Conditions | -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 15.29 |
| Gross Volume per Pack Metric | 250.56 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 24.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8538908180 |
| Height | 6.0000 CM |
| Height [Metric] | 6.0000 cm |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Legend | O |
| Legend Color | White |
| Length | 3.2000 CM |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267944962&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Mounting Type | Through Hole |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 Series |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Terminal Type | Screw Clamp |
| Type | PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 78590153446 |
| UPC 12 | 785901534464 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.0000 CM |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NC-1NO |
| Operator Type | Red Projecting/Spring Return/Slow Break |
| Size | 22 in |
| PUSH-BUTTON |
