Square D™ XB7NJ04B1 ILLUM. P.B - LED - La
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NJ04B1 ILLUM. P.B - LED - La
SKUPDW~11799899
MFGR #XB7NJ04B1
Call For Price
List: Schneider Electric XB7NJ04B1,ILLUM. P.B - LED - Latch -1NO - Red - 24v
Schneider Electric XB7NJ04B1,ILLUM. P.B - LED - Latch -1NO - Red - 24v
Action SLOW-BREAK Actuator Red projecting, unmarked; push and push-to-release Alternate Catalog Number XB7NJ04B1 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Bezel|Housing Plastic Bezel Buy American Compliant N Catalog Number XB7NJ04B1 Contact Mode Projecting Push/Push Release Contact Rating 0.6 A at 120 VAC, 0.3 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC Country of Origin ID Currency USD Enclosure NEMA 12 UL 50 E Enclosure Type NEMA 12/IP20/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Volume Per Pack 3.31 Gross Volume per Pack Metric 54.24 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.2400 lb Gross Weight per Pack Metric 24.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509033 Height 6.0000 CM Height [Metric] 6.0000 cm Illumination Type LED Indicator LED,INTEGRAL LED Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Lamp Type Integral LED Length 3.2000 CM Length [Metric] 3.2000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267943334&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Operating Temperature -25-70 A°C Returnable N Series XB7 Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Terminal Type Screw/Clamp Type Monolithic Round Unmarked UNSPSC 39122216 Voltage Rating 24 VAC//VDC Warranty Description Contractual Warranty:18 months Width 3.0000 CM Width [Metric] 3.2000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Red Contact Configuration 1NO Contact Type Slow Break Operator Type Latching Size 22 mm WITH PLAIN LENS This Schneider electric Harmony™ XB7 illuminated monolithic red pushbutton operates with a latched push-to release mechanism, is supplied with 24 VAC/VDC and uses screw clamp terminals The XB7 line is an all-in-one pushbutton with the operators on the back of the operator Monolithic design easy to buy and quick to install by eliminating the need for components Four terminals with two contacts a more flexible solution for customers wiring needs Separate NO and NC contacts increased wiring flexibility
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Red projecting, unmarked; push and push-to-release |
| Alternate Catalog Number | XB7NJ04B1 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Bezel|Housing | Plastic Bezel |
| Buy American Compliant | N |
| Catalog Number | XB7NJ04B1 |
| Contact Mode | Projecting Push/Push Release |
| Contact Rating | 0.6 A at 120 VAC, 0.3 A at 240 VAC, 0.22 A at 125 VDC, 0.1 A at 250 VDC |
| Country of Origin | ID |
| Currency | USD |
| Enclosure | NEMA 12 UL 50 E |
| Enclosure Type | NEMA 12/IP20/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 3.31 |
| Gross Volume per Pack Metric | 54.24 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.2400 lb |
| Gross Weight per Pack Metric | 24.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509033 |
| Height | 6.0000 CM |
| Height [Metric] | 6.0000 cm |
| Illumination Type | LED |
| Indicator | LED,INTEGRAL LED |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Lamp Type | Integral LED |
| Length | 3.2000 CM |
| Length [Metric] | 3.2000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267943334&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Series | XB7 |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Terminal Type | Screw/Clamp |
| Type | Monolithic Round Unmarked |
| UNSPSC | 39122216 |
| Voltage Rating | 24 VAC//VDC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 3.0000 CM |
| Width [Metric] | 3.2000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Red |
| Contact Configuration | 1NO |
| Contact Type | Slow Break |
| Operator Type | Latching |
| Size | 22 mm |
| WITH PLAIN LENS |

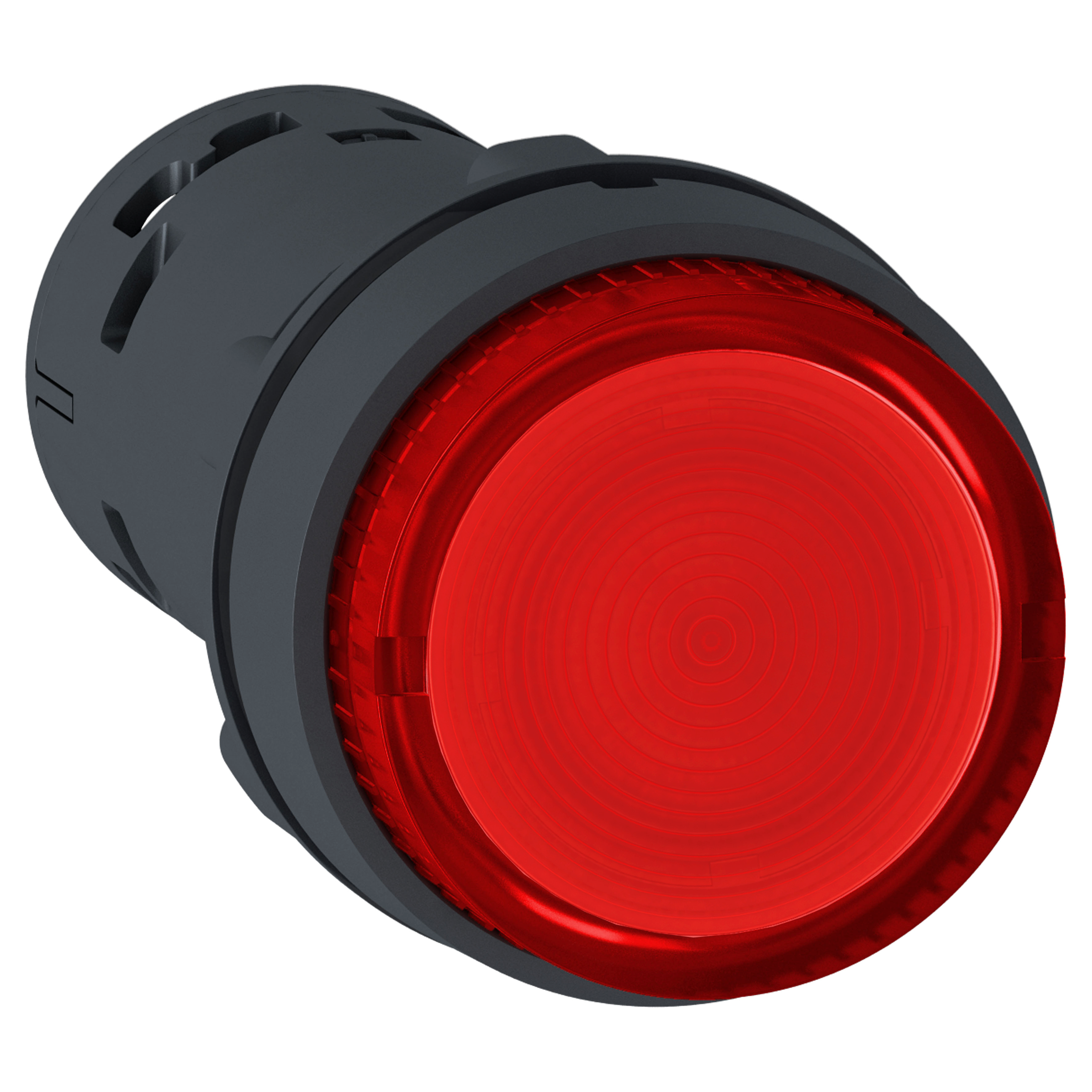

| This Schneider electric Harmony™ XB7 illuminated monolithic red pushbutton operates with a latched push-to release mechanism, is supplied with 24 VAC/VDC and uses screw clamp terminals |
| The XB7 line is an all-in-one pushbutton with the operators on the back of the operator |
| Monolithic design easy to buy and quick to install by eliminating the need for components |
| Four terminals with two contacts a more flexible solution for customers wiring needs |
| Separate NO and NC contacts increased wiring flexibility |
