Square D™ XB7NA25343 PB Spring Rtn black
SKUPDW~11799879
MFGR #XB7NA25343
Price Not Available

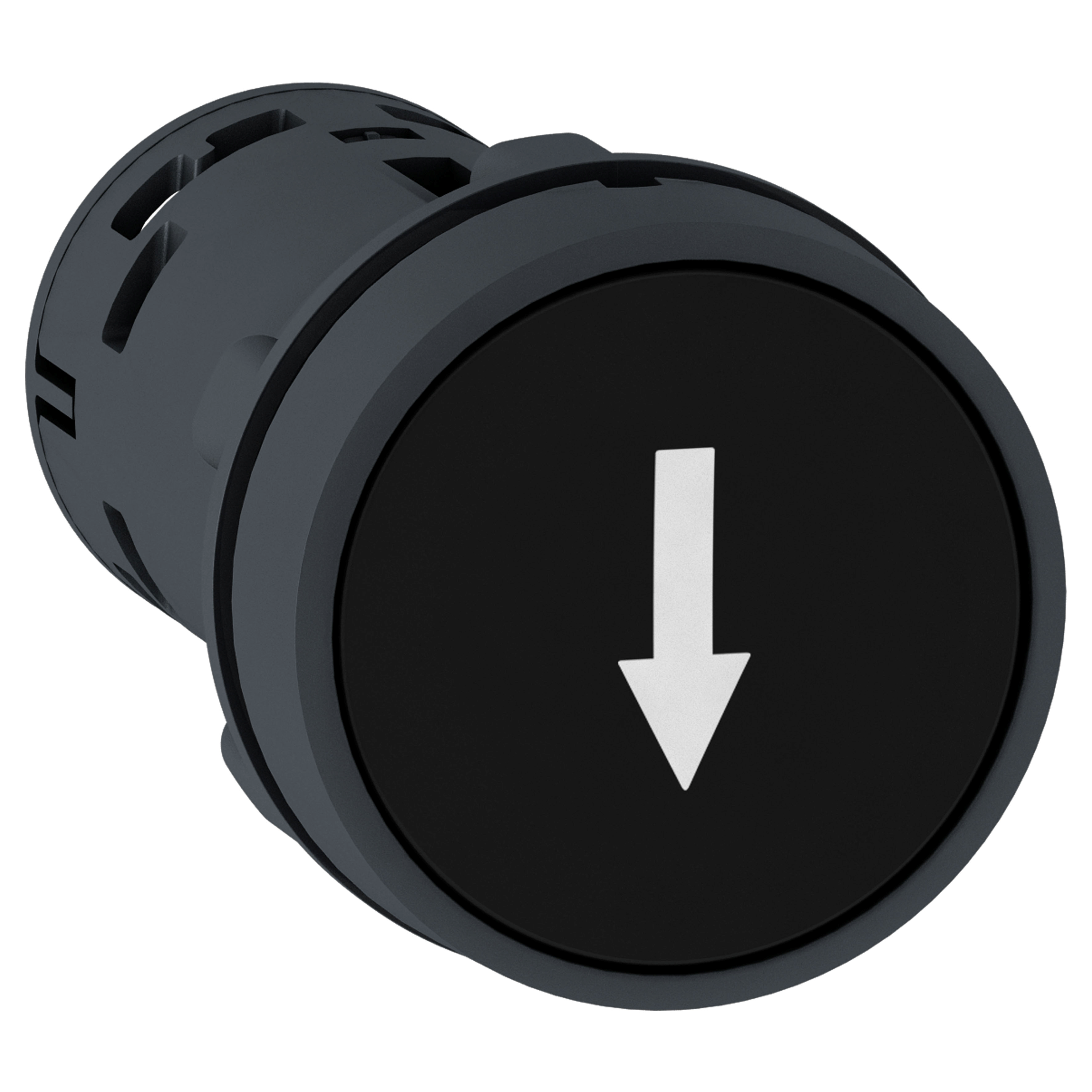

Schneider Electric XB7NA25343,PB Spring Rtn black NO+NC White DOWN arrow
Schneider Electric XB7NA25343,PB Spring Rtn black NO+NC White DOWN arrow
Action SLOW-BREAK Actuator spring return;Black flush, down arrow white) Alternate Catalog Number XB7NA25343 Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NA25343 Country of Origin ID Enclosure NEMA 12 UL 50 E-NEMA 3 UL 50 E EU RoHS Indicator Y Gross Volume Per Pack 2.91 Gross Volume per Pack Metric 47.69 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0440 lb Gross Weight per Pack Metric 20.00 Gross Weight UOM Metric g Height 2.07 in Height [Metric] 5.3000 cm Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Length 1.17 in Length [Metric] 3.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958761&lang=en-us Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Operating Temperature -25-70 A°C Returnable N Standard IP20 IEC 60529 rear face);IP65 IEC 60529 front face) Sub Brand XB7 Type Push-button UNSPSC 39122216 UPC 11 785901536901 UPC 12 785901536901 Warranty Description Contractual Warranty:18 months Width 1.17 in Width [Metric] 3.0000 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1 NO + 1 NC Size 0.87 in PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | spring return;Black flush, down arrow white) |
| Alternate Catalog Number | XB7NA25343 |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NA25343 |
| Country of Origin | ID |
| Enclosure | NEMA 12 UL 50 E-NEMA 3 UL 50 E |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 2.91 |
| Gross Volume per Pack Metric | 47.69 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0440 lb |
| Gross Weight per Pack Metric | 20.00 |
| Gross Weight UOM Metric | g |
| Height | 2.07 in |
| Height [Metric] | 5.3000 cm |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Length | 1.17 in |
| Length [Metric] | 3.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267958761&lang=en-us |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Operating Temperature | -25-70 A°C |
| Returnable | N |
| Standard | IP20 IEC 60529 rear face);IP65 IEC 60529 front face) |
| Sub Brand | XB7 |
| Type | Push-button |
| UNSPSC | 39122216 |
| UPC 11 | 785901536901 |
| UPC 12 | 785901536901 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 1.17 in |
| Width [Metric] | 3.0000 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1 NO + 1 NC |
| Size | 0.87 in |
| PUSH-BUTTON |
