Schneider Electric

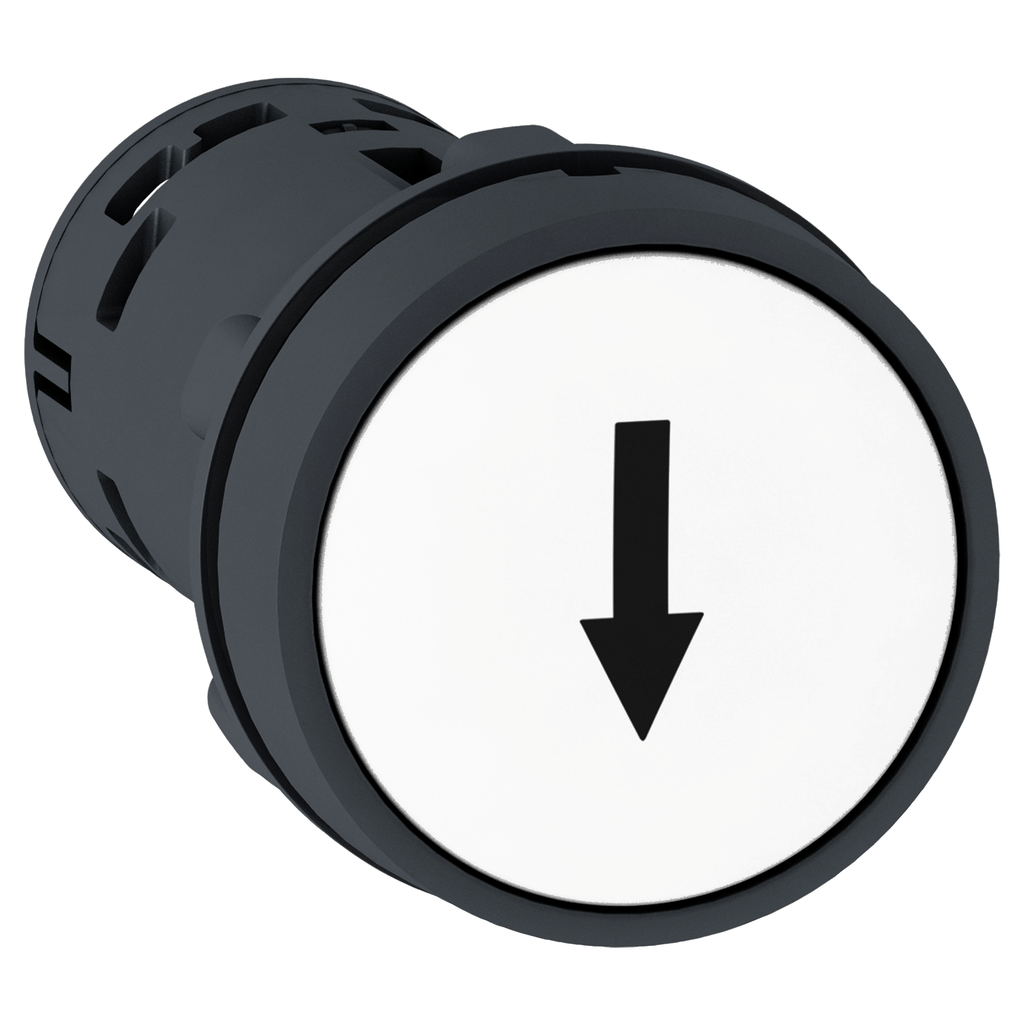

Square D™ XB7NA15343 PB Spring Rtn white
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB7NA15343 PB Spring Rtn white
SKUPDW~11799871
MFGR #XB7NA15343
Price Not Available
Schneider Electric XB7NA15343,PB Spring Rtn white NO+NC BLACK DOWN ARROW
Schneider Electric XB7NA15343,PB Spring Rtn white NO+NC BLACK DOWN ARROW
Action SLOW-BREAK Actuator SPRING RETURN,WHITE FLUSH, DOWN ARROW BLACK) Amperage Rating 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 ARRA Compliant N Buy American Compliant N Catalog Number XB7NA15343 Connection Type Cable Connector Country of Origin ID Enclosure NEMA 12 UL 50 E-NEMA 3 UL 50 E Enclosure Type NEMA 3/12 Environmental Conditions -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance EU RoHS Indicator Y Gross Weight Per Pack 1 lb Harmonization Tariff Schedule Code 8536509031 Insulation 250 V 3)EN/IEC 60947-1 Item Group 22464 Legend Down Arrow Legend Color Black Mounting FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M Mounting Type Through Hole Operating Temperature -25-70 A°C Returnable Y Series XB7 Series Sub Brand XB7 Terminal Type Screw Clamp Type PUSH-BUTTON UNSPSC 39122216 UPC 11 785901537304 UPC 12 785901537304 Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Contact Configuration 1NC-1NO Operator Type White Flush/Spring Return/Slow Break Size 22 PUSH-BUTTON
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | SPRING RETURN,WHITE FLUSH, DOWN ARROW BLACK) |
| Amperage Rating | 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1-0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1-0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1 |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | XB7NA15343 |
| Connection Type | Cable Connector |
| Country of Origin | ID |
| Enclosure | NEMA 12 UL 50 E-NEMA 3 UL 50 E |
| Enclosure Type | NEMA 3/12 |
| Environmental Conditions | -40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 1 lb |
| Harmonization Tariff Schedule Code | 8536509031 |
| Insulation | 250 V 3)EN/IEC 60947-1 |
| Item Group | 22464 |
| Legend | Down Arrow |
| Legend Color | Black |
| Mounting | FIXING HOLE 22.5 MM 22.3 +0.4/0 EN/IEC 60947-1,FIXING NUT BENEATH HEAD 2-2.4 N.M |
| Mounting Type | Through Hole |
| Operating Temperature | -25-70 A°C |
| Returnable | Y |
| Series | XB7 Series |
| Sub Brand | XB7 |
| Terminal Type | Screw Clamp |
| Type | PUSH-BUTTON |
| UNSPSC | 39122216 |
| UPC 11 | 785901537304 |
| UPC 12 | 785901537304 |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Contact Configuration | 1NC-1NO |
| Operator Type | White Flush/Spring Return/Slow Break |
| Size | 22 |
| PUSH-BUTTON |
