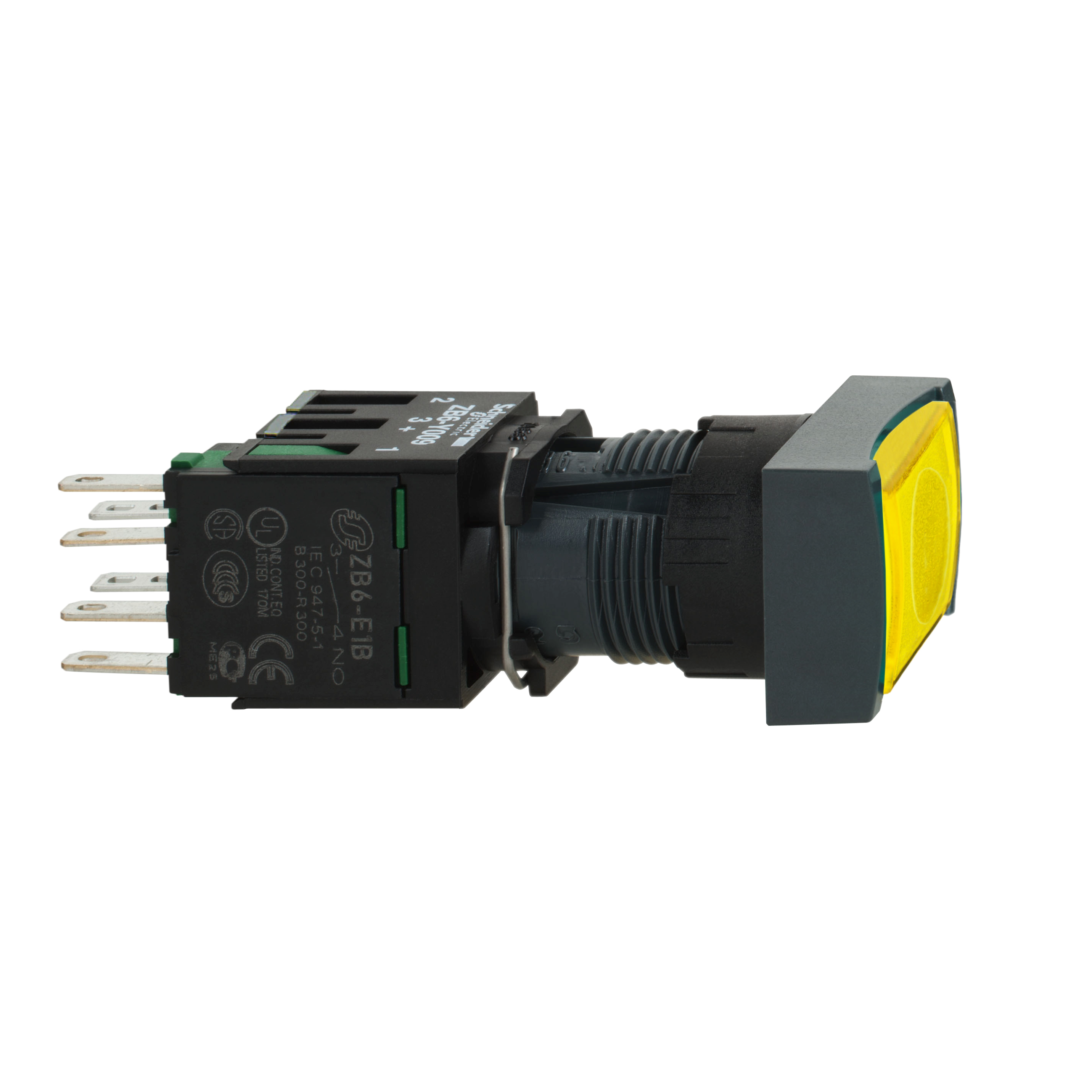

Square D™ XB6DF5B1B Illuminated Pushbutton, 16 mm, 1NO, Latching Operator, Yellow
Custom_Product_Images_Illustration
Schneider Electric
Square D™ XB6DF5B1B Illuminated Pushbutton, 16 mm, 1NO, Latching Operator, Yellow
SKUPDW~6421671
MFGR #XB6DF5B1B
$/ea
Square D™ Illuminated Pushbutton, 16 mm, 1NO, Maintained Contact Mode, 5 A at 240 VAC Contact, Latching Operator, LED Lamp, Bezel/Housing: Plastic, Flush Button, Quick-Connect Terminal, NEMA 4/4X/13/IP65, Panel Mount, Yellow, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Square D™ Illuminated Pushbutton, 16 mm, 1NO, Maintained Contact Mode, 5 A at 240 VAC Contact, Latching Operator, LED Lamp, Bezel/Housing: Plastic, Flush Button, Quick-Connect Terminal, NEMA 4/4X/13/IP65, Panel Mount, Yellow, Environmental Conditions: -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature
Action SLOW-BREAK Actuator Yellow flush, unmarked; latching Alternate Catalog Number XB6DF5B1B Amperage Rating 0.015 A ARRA Compliant N Bezel|Housing Plastic Buy American Compliant N Catalog Number XB6DF5B1B Connection Faston connectors 2.8 x 0.5 mm Connection Type Quick-Connect Contact Mode Maintained Contact Rating 5 A at 12 to 24 VAC/VDC Country of Origin MX Currency USD Enclosure Type NEMA 4/4X/12/13/IP65 Environmental Conditions -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature EU RoHS Indicator Y Gross Weight Per Pack 0.9072 lb Gross Weight per Pack Metric 90.72 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536509031 Height 6.4520 in Height [Metric] 6.4520 cm Illumination Type LED Item Group 22459 Lamp Type LED Length 16.3870 in Length [Metric] 16.3870 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61724329&lang=en-us Model complete illuminated push-button Mounting Type Panel Returnable Y Series XB6 Standard JIS C 852 Sub Brand XB6 Type Complete Corrosion-Resistant Dust/Watertight UNSPSC 39122216 UPC 11 78590135786 UPC 12 785901357865 Voltage Rating 12...24 V AC/DC Warranty Description Contractual Warranty:18 months Width 2.5400 in Width [Metric] 2.5400 cm Stock Status NONSTOCK Brand Schneider Electric Manufacturer Schneider Electric Color Yellow Contact Configuration 1NO Operator Type Latching/Slow-Break Size 16 mm COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC Rectangular shape of signaling unit head Yellow flush unmarked operator profile Slow break contact operation 2.8 x 0.5 mm faston connectors Integral LED bulb base 12 to 24 VAC/DC rated supply voltage 0.71 in H x 0.94 in W x 2.24 in D product dimension With positive opening conforming to EN/IEC 60947-5-1 appendix K positive opening 3.5 N (NO changing electrical state) operating force Silver alloy (AgNi) contact material 6 A cartridge fuse Type gG short circuit protection 250 V (degree of pollution 3) conforming to EN/IEC 60947-1 rated insulation voltage 4 kV conforming to EN/IEC 60947-1 rated impulse withstand voltage Steady signaling 6 to 30 VAC/VDC supply voltage limits 15 mA current consumption /-3 mm (2 to 500 Hz) conforming to IEC 60068-2-6 and 5 gn (2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance 2 kV conforming to IEC 61000-4-4 resistance to fast transients 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3 resistance to electromagnetic fields
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Action | SLOW-BREAK |
| Actuator | Yellow flush, unmarked; latching |
| Alternate Catalog Number | XB6DF5B1B |
| Amperage Rating | 0.015 A |
| ARRA Compliant | N |
| Bezel|Housing | Plastic |
| Buy American Compliant | N |
| Catalog Number | XB6DF5B1B |
| Connection | Faston connectors 2.8 x 0.5 mm |
| Connection Type | Quick-Connect |
| Contact Mode | Maintained |
| Contact Rating | 5 A at 12 to 24 VAC/VDC |
| Country of Origin | MX |
| Currency | USD |
| Enclosure Type | NEMA 4/4X/12/13/IP65 |
| Environmental Conditions | -13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.9072 lb |
| Gross Weight per Pack Metric | 90.72 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536509031 |
| Height | 6.4520 in |
| Height [Metric] | 6.4520 cm |
| Illumination Type | LED |
| Item Group | 22459 |
| Lamp Type | LED |
| Length | 16.3870 in |
| Length [Metric] | 16.3870 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=61724329&lang=en-us |
| Model | complete illuminated push-button |
| Mounting Type | Panel |
| Returnable | Y |
| Series | XB6 |
| Standard | JIS C 852 |
| Sub Brand | XB6 |
| Type | Complete Corrosion-Resistant Dust/Watertight |
| UNSPSC | 39122216 |
| UPC 11 | 78590135786 |
| UPC 12 | 785901357865 |
| Voltage Rating | 12...24 V AC/DC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 2.5400 in |
| Width [Metric] | 2.5400 cm |
| Stock Status | NONSTOCK |
| Brand | Schneider Electric |
| Manufacturer | Schneider Electric |
| Color | Yellow |
| Contact Configuration | 1NO |
| Operator Type | Latching/Slow-Break |
| Size | 16 mm |
| COMPLETE ILLUMINATED PUSH-BUTTON,PLASTIC |
| Rectangular shape of signaling unit head |
| Yellow flush unmarked operator profile |
| Slow break contact operation |
| 2.8 x 0.5 mm faston connectors |
| Integral LED bulb base |
| 12 to 24 VAC/DC rated supply voltage |
| 0.71 in H x 0.94 in W x 2.24 in D product dimension |
| With positive opening conforming to EN/IEC 60947-5-1 appendix K positive opening |
| 3.5 N (NO changing electrical state) operating force |
| Silver alloy (AgNi) contact material |
| 6 A cartridge fuse Type gG short circuit protection |
| 250 V (degree of pollution 3) conforming to EN/IEC 60947-1 rated insulation voltage |
| 4 kV conforming to EN/IEC 60947-1 rated impulse withstand voltage |
| Steady signaling |
| 6 to 30 VAC/VDC supply voltage limits |
| 15 mA current consumption |
| /-3 mm (2 to 500 Hz) conforming to IEC 60068-2-6 and 5 gn (2 to 500 Hz) conforming to IEC 60068-2-6 vibration resistance |
| 30 gn (duration = 18 ms) half sine wave acceleration conforming to IEC 60068-2-27, 50 gn (duration = 11 ms) half sine wave acceleration conforming to IEC 60068-2-27 shock resistance |
| 2 kV conforming to IEC 61000-4-4 resistance to fast transients |
| 9.14 V/yd (10 V/m) conforming to IEC 61000-4-3 resistance to electromagnetic fields |
